OPERATION

HOME SCREEN

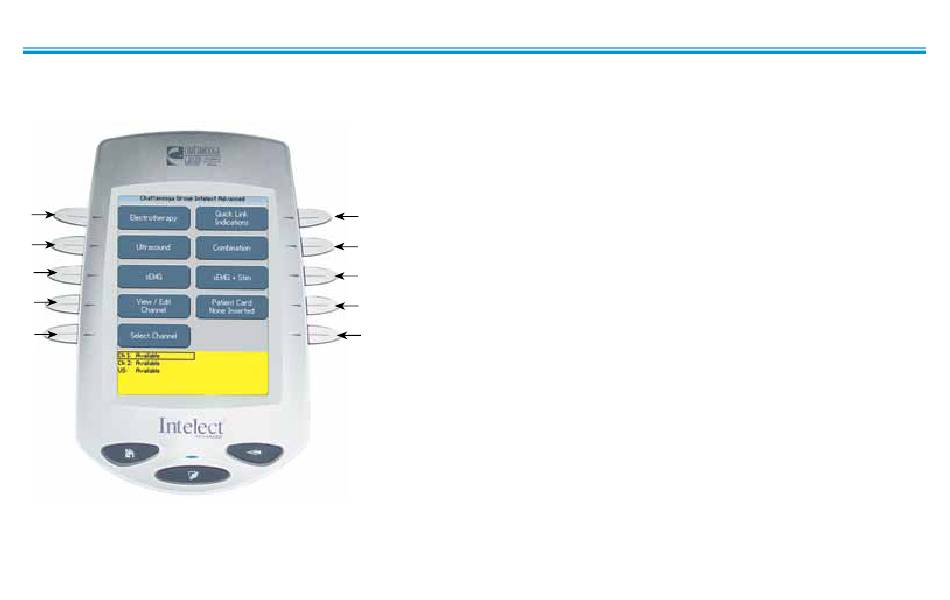

The Intelect Advanced Home screen affords access to all of the system modalities and functions. The area surrounding the screen has 10
modality and parameter modification buttons.
1
3
5
7
9
*NOTE:
The sEMG Module is standard on the Intelect
Advanced Therapy System Color Series and
optional for the Monochromatic Series.
Electrotherapy
1.
Accesses all the available waveforms and parameter editing controls.
Quick Link Indications
2.
Accesses specific pre-programmed indications, for general reference only, which
aid in selecting the proper waveform and electrode placement for particular
indicated patient syndrome diagnoses.
2
Ultrasound
3.
4
Accesses the Ultrasound set up screen and parameter editing controls.
Combination
6 4.
Accesses combination therapy set up screens and parameter editing controls.
8
sEMG*
5.
Accesses the Surface EMG (sEMG) modality and parameter editing controls.
10
sEMG + Stim*
6.
Accesses the Surface EMG (sEMG) + Electrical Stimulation modality and
parameter editing controls.
View/Edit Channel
7.
Accesses the selected channel and allows editing of the channel's parameters
during therapy. Also used in the saving of information to the Patient Data Card.
Patient Card
8.
Accesses Patient Data Card data.
Select Channel
9.
Use to select desired channel for viewing and editing of channel parameters.
Unused
10.
Reserved for optional expansion Modules.
