INSTALLATION/REMOVAL
INSTALLATION CHANNEL 3/4 ELECTROTHERAPY MODULE (continued)

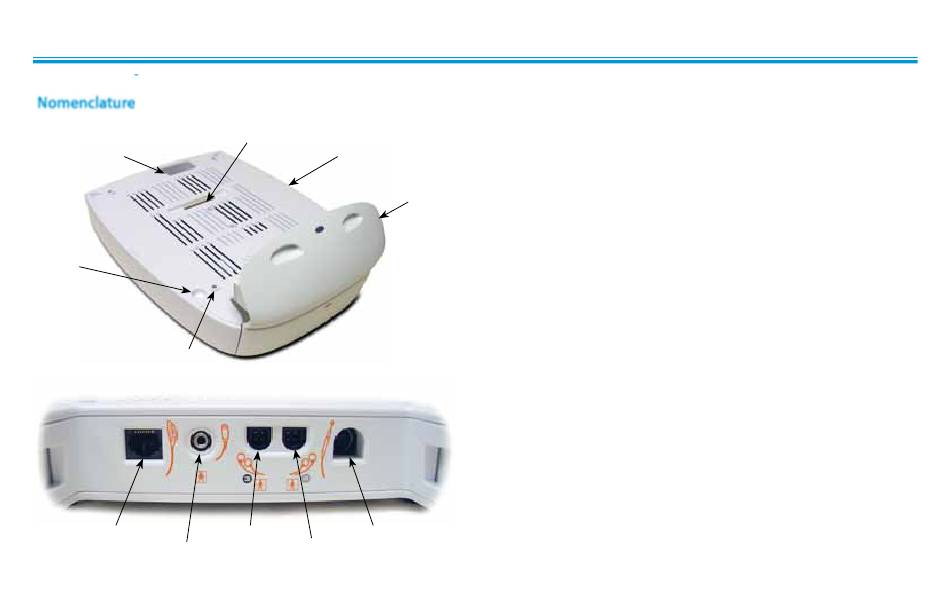

Nomenclature
5
4
3
7
8
6
1
2
9
11
10
1. Channel 3/4 Electrotherapy Module
2. Extended Front Access Panel
3. Module to System Mounting Holes
4. Module to System Feet Alignment Indents
5. Power Cord Routing Port
6. Module to System Connector
7. Operator Remote Control Connector*
8. Patient Interrupt Switch Connector*
9. Channel 3 Lead Wire Connector*
10. Channel 4 Lead Wire Connector*
11. Microcurrent Probe Connector*
Also Included:
Four 4 mm X 20 mm mounting screws
Channel 3 and 4 Lead Wires
Patient Interrupt Switch (Ch 3/4)
Carbon Electrodes
Electrode Sponges
Sample of Dura-Stick™ II electrodes
Nylatex
Wraps
®
page 13
* Refer to
for Symbol Definitions.
96
Intelect® Advanced Therapy System
