INSTALLATION/REMOVAL
INSTALLATION CHANNEL 3/4 ELECTROTHERAPY MODULE (continued)

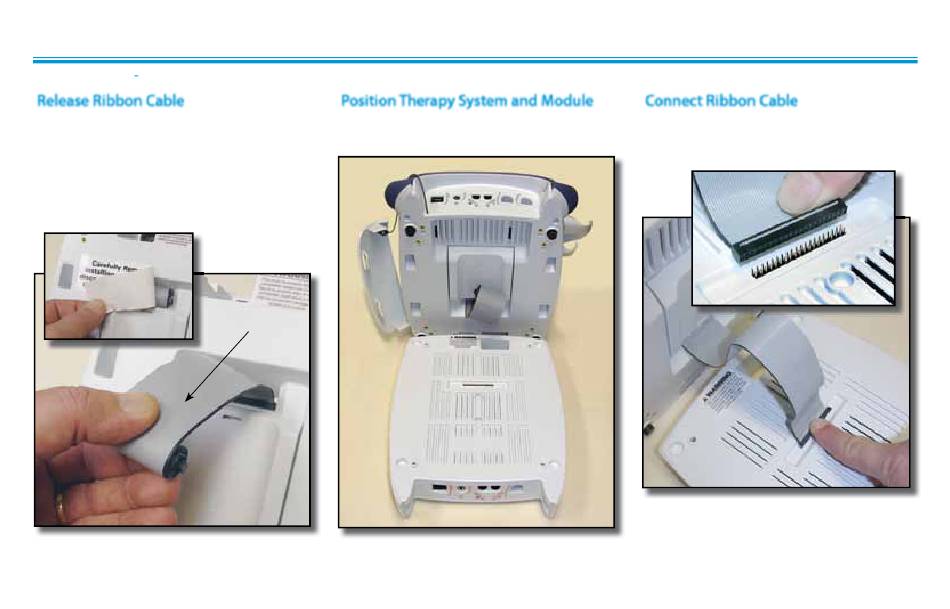

Release Ribbon Cable
Remove and discard the vinyl label holding
the Ribbon Cable in the cavity on the
Therapy System.
Carefully unroll the Ribbon Cable, making
certain not to disconnect it from the
Therapy System.
Position Therapy System and Module
Position Therapy System and the Channel
3/4 Electrotherapy Module as shown.
CAREFULLY UNROLL
RIBBON CABLE
Connect Ribbon Cable
Carefully align the Ribbon Cable Connector
to the Module Connector Pins and press
down to connect.
RIBBON CABLE MUST BE AS SHOWN!
Make certain Ribbon Cable is completely
seated to Module Connector Pins.
