OPERATION OPERATION
CLINICAL RESOURCES LIBRARY MMC GRAPHICAL LIBRARY
General Information
The Clinical Resources Library contains the unique Anatomical and Pathological Graphic Libraries* from DJO. These Graphic Libraries are
contained on a single Multimedia Card (MMC) and are designed to aid the operator in visually understanding and locating specific muscle
groups and commonly found problems associated with Pathological Conditions as well as providing an educational tool for the clinician to
use with the patient.

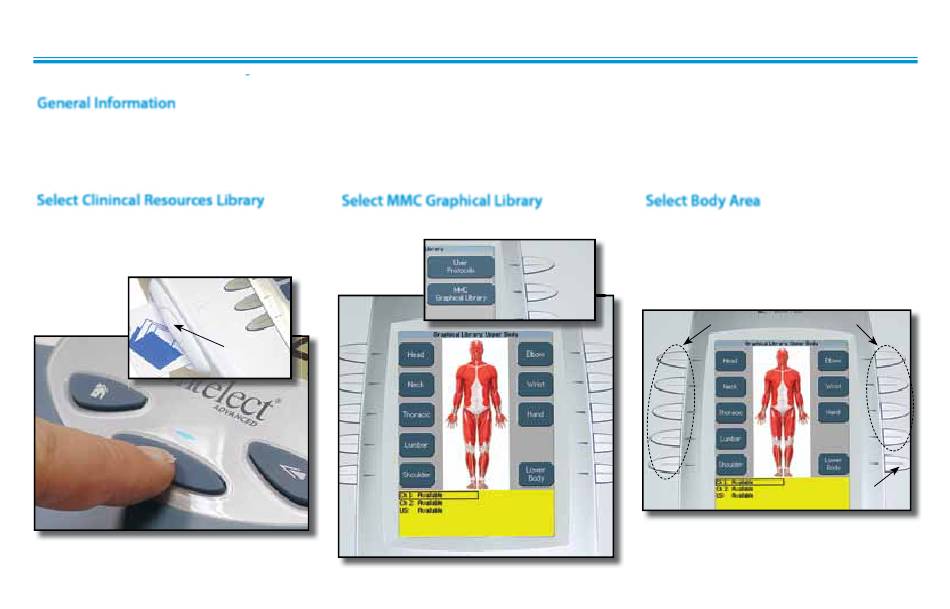

Select Clinincal Resources Library
Make certain the Multimedia Card (MMC) is
inserted into the system MMC Access Port.
Press the Clinical Resources Library button.
*Copyright ©2003 Nucleus Medical Art. All rights reserved.
www.nucleusinc.com
Select MMC Graphical Library
Press the MMC Graphical Library button.
MMC
CARD
Select Body Area
The default setting displays Upper Body
Selections. To view Lower Body Selections,
press the Lower Body button.
Press the button beside the desired Body
Area.
NOTE:
For representation purposes the Shoulder
has been selected for this section.
93
Intelect® Advanced Therapy System
BODY AREA SELECTION BUTTONS
LOWER BODY
BUTTON
