OPERATION
CLINICAL RESOURCES LIBRARY USING SEQUENCES (continued)

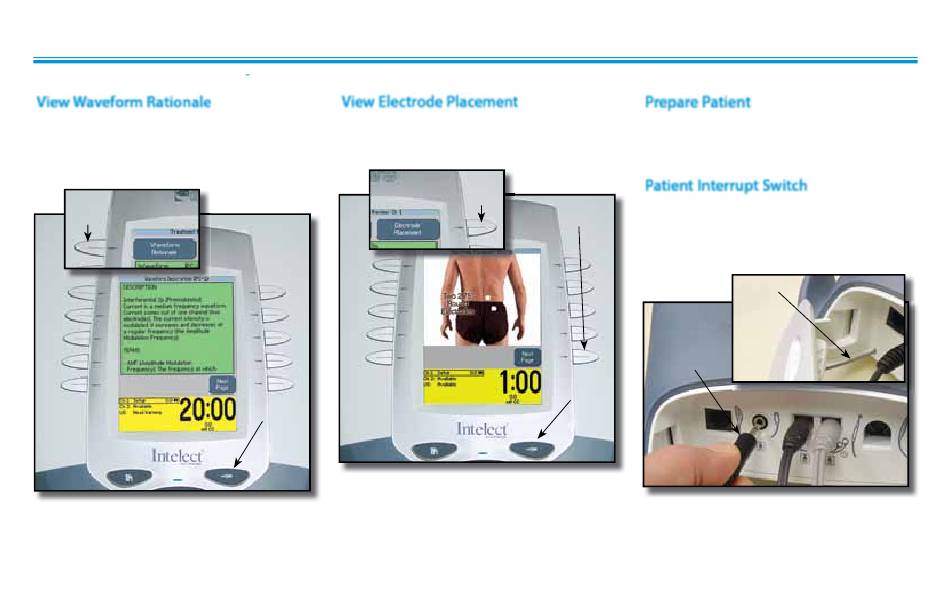

View Waveform Rationale

Press the Waveform Description button to
view the text explaining the rationale for
the modality associated with the Sequence
selected.
WAVEFORM RATIONALE
BUTTON
Press the Back button twice to return to the
Sequence screen.

View Electrode Placement

Press the Electrode Placement button
to view the electrode placement for the
Sequence selected.
ELECTRODE PLACEMENT
BACK
BUTTON
Press the Next Page button to view text
relating to the electrode placement.
Press the Back button twice to return to the
Sequence screen.
BUTTON
NEXT PAGE
BUTTON
BACK
BUTTON
90
Intelect® Advanced Therapy System

Prepare Patient

pages 35 through 38
Refer to
Electrotherapy patient preparation
instructions.

Patient Interrupt Switch

Make certain the Patient Interrupt Switch,
for the channel(s) being used, is connected
to the Therapy System. Refer to
Symbol Definitions.
LANYARD
PATIENT
INTERRUPT
SWITCH
NOTE:
When reinstalling the Front Access Panel,
make certain the Lanyard does not
become kinked.
for
page 13
for
