OPERATION
CLINICAL RESOURCES LIBRARY CLINICAL PROTOCOLS™ (continued)

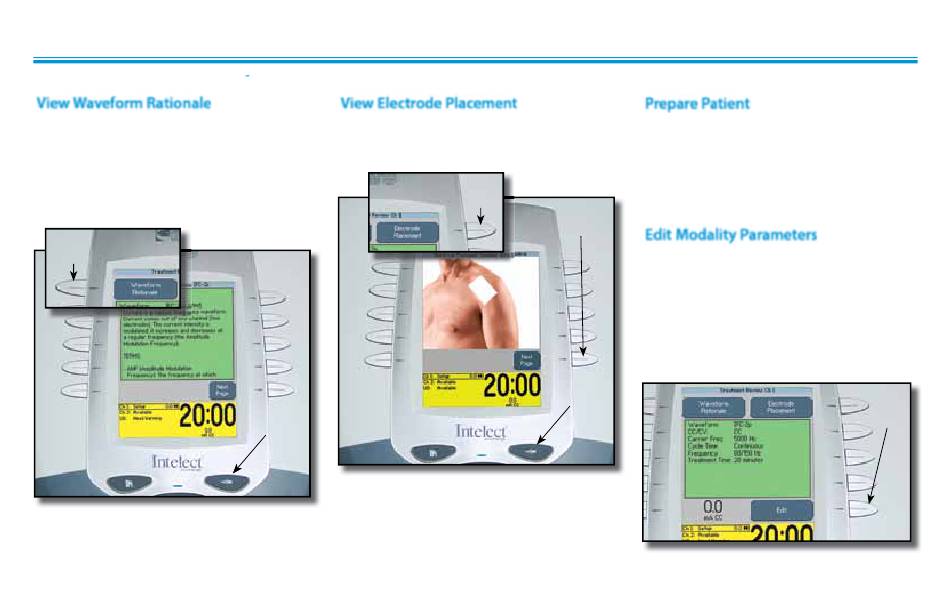

View Waveform Rationale

Press the Waveform Rationale button
(Electrotherapy Modalities) or the Parameter
Rationale (Ultrasound Modality) to view
the text explaining the rationale for the
modality associated with the specific
Clinical Protocol selected.
WAVEFORM RATIONALE
BUTTON
Press the Back button to return to the
Treatment Review screen.

View Electrode Placement

Press the Electrode Placement button to
view the specific electrode placement for
the Clinical Protocol selected.
ELECTRODE PLACEMENT
BACK
BUTTON
Press the Next Page button to view text
relating to the electrode placement.
Press the Back button to return to the
Treatment Review screen.
BUTTON
NEXT PAGE
BUTTON
BACK
BUTTON
75
Intelect® Advanced Therapy System

Prepare Patient

pages 35 through 38
Refer to
page 39
Electrotherapy and
patient preparation instructions. For sEMG
and sEMG+Stim patient Preparation, refer
to the sEMG and sEMG+Stim Module User
Manual.

Edit Modality Parameters

Press the Edit button.
Edit modality parameters as prescribed.
Refer to page 44 for Electrotherapy
page 49
modalities and for Ultrasound.
Refer to the sEMG and sEMG+Stim Module
User Manual for sEMG and sEMG+Stim
modalities.
for
Ultrasound
EDIT
BUTTON
