INSTALLATION/REMOVAL
INSTALLATION CHANNEL 3/4 ELECTROTHERAPY MODULE (continued)

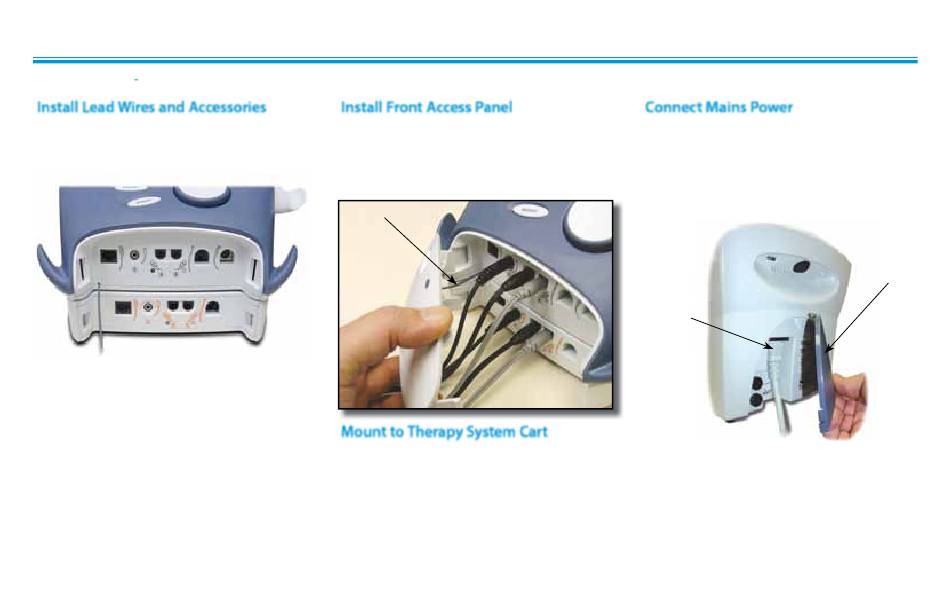

Install Lead Wires and Accessories
Install Lead Wires and additional accessories
page 13
to Front Panel. Refer to
Definitions.
Install Front Access Panel
Install the new Extended Front Access Panel
for Symbol onto Therapy System.
Make certain Lanyard does not become
kinked.
LANYARD
Mount to Therapy System Cart
If mounting Therapy System to a Therapy
System Cart, refer to Therapy System Cart
User Manual for instructions.
101
Intelect® Advanced Therapy System
Connect Mains Power
Connect the Mains Power Cord to the
Therapy System.
Install Rear Access Panel.
Connect the Mains Power Cord to an
approved power source.
MAINS
POWER
CORD
REAR
ACCESS
PANEL
