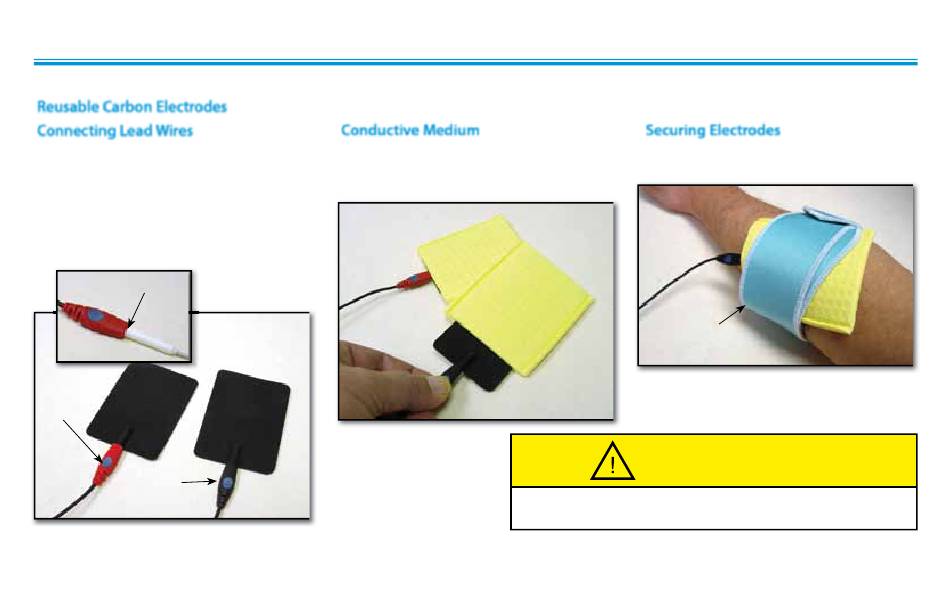

Reusable Carbon Electrodes

Connecting Lead Wires

Insert the lead with the Red (+) electrode
connector into electrode. Insert the lead
with the black (-) electrode connector into
the other electrode.
Make certain the lead wires are seated
completely into the electrodes.
LEAD WIRE SEATED
RED (+)
LEAD WIRE
BLACK (-)
LEAD WIRE

Conductive Medium

Use wet sponges or liberally apply
Conductor™ Transmission Gel to electrode
prior to placement on patient.
The Nylatex ® Wraps contain dry natural rubber and may cause
allergic reactions in patients with allergies to latex.
38
Intelect® Advanced Therapy System

Securing Electrodes

Use the Nylatex Wrap to secure each
®
electrode in position on the patient.
SECURE WITH
NYLATEX
CAUTION
