INSTRUCTION MANUAL
B
A
2-5
B
C
D
A
2x
5-9

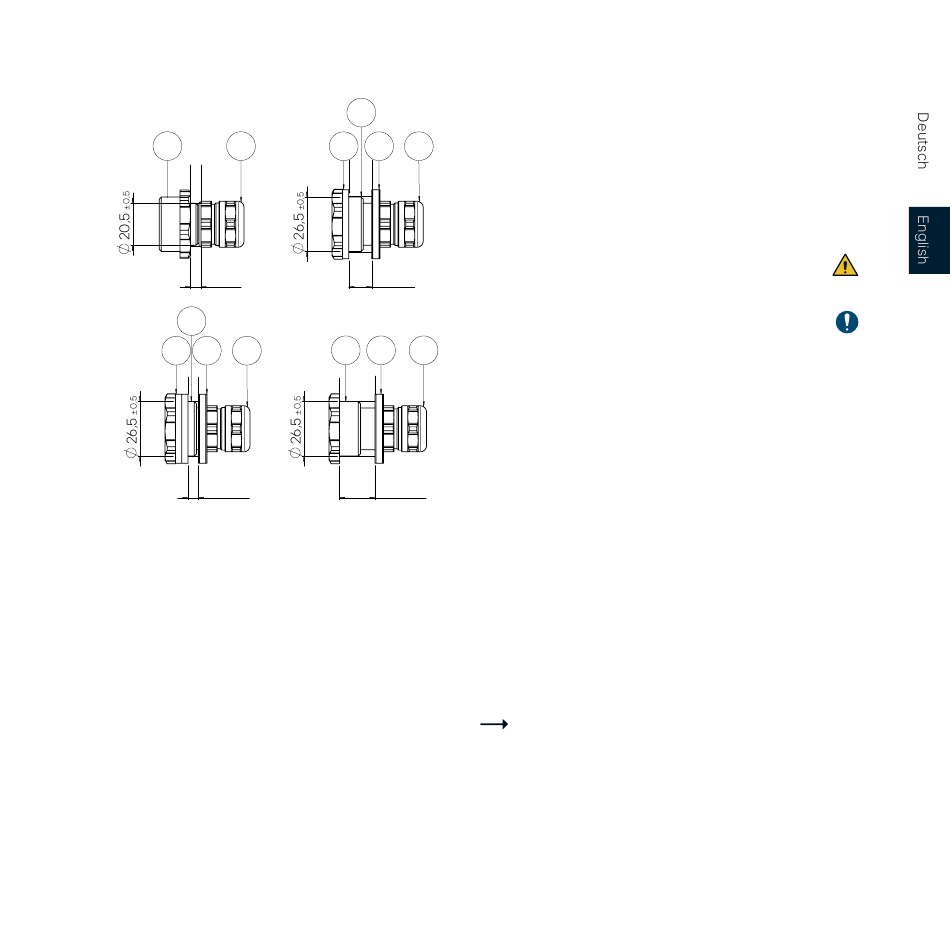

Figure 11
The power connection can be routed to the inside
the machine using the cable gland leading to the
connection for the Rotoclear S3, which is mount-
ed entirely on the inside of the machinery glass.
You only need power to supply the Rotoclear S3
with adapter. You can continue to use the power
cables of the previous model if necessary.
If a Rotoclear S or S2 of the type mentioned under
1. or 2. above was installed, the connection is on
the outside. You can use the cable gland (Fig. 11-A)
to feed through the power cable. Different sheet
metal or pane thicknesses require different hole
diameters. Ensure that the nut is screwed in fac-
ing in the right direction (Fig. 11-B) and that a cor-
rect number of spacer rings is used (Fig. 11-C). A
sealing washer (Fig. 11-D) is used for holes with
B
larger diameters.
1x
C
D
A
Special case: Replacement kit for
third-party devices
It is essential to read the instructions related to
9-11
this retrofit kit in the chapter Purge air supply.
There are many manufacturer-specific installation
variants of third-party devices, some of which are
B
D
A
bespoke designs. The list of connection variants
given below is not exhaustive. If you come across a
different variant, it is still usually possible to con-
nect the Rotoclear  S3 in a few simple steps by
adapting the cable routing to the specific situation.
In cases such as these, it is advisable to have the
work done by specialist maintenance personnel.
11-17
The following options are available for connecting
a unit that is being used to replace a third-party
unit (e.g. Visiport):
Replacing the supply line
Replace the supply line of the third-party unit
with the standard supply line provided with the
Rotoclear S3:
necessary parts is available for this purpose.
Proceed as described in the section Installation
with protective hose. In this case, the M16 to T1/4"
adapter and the pipe fitting included in the retrofit
kit for third-party devices are not required.
This is the recommended connection variant.
A connection cable set containing all the
69
