Once the stator (Fig. 5-C) and its inserted
sealing ring (Fig. 5-D) have been fitted, screw in
the M5 × 14 Tx 10 bolts and tighten them with a
torque of 1.1 Nm.
Safety information
The same conditions that were validated and de-
fined by the manufacturer of the third-party de-
vice or the manufacturer who supplied the
third-party device along with the machine contin-
ue to apply for safety against chip impact.
Changing the machinery glass
If you need to replace the machinery glass at a
later date due to the replacement interval elaps-
ing, it is advisable to install the standard version of
the Rotoclear S3 on a new pane – i.e. without the
Rotoclear S3 adapter flange for third-party devic-
es with a hole 226.7 mm in diameter.
We recommend providing a compressed air sup-
ply (see chapter Purge air supply)

Electrical installation

Electrical installation may only be carried out by
authorized and trained specialists.
K
.

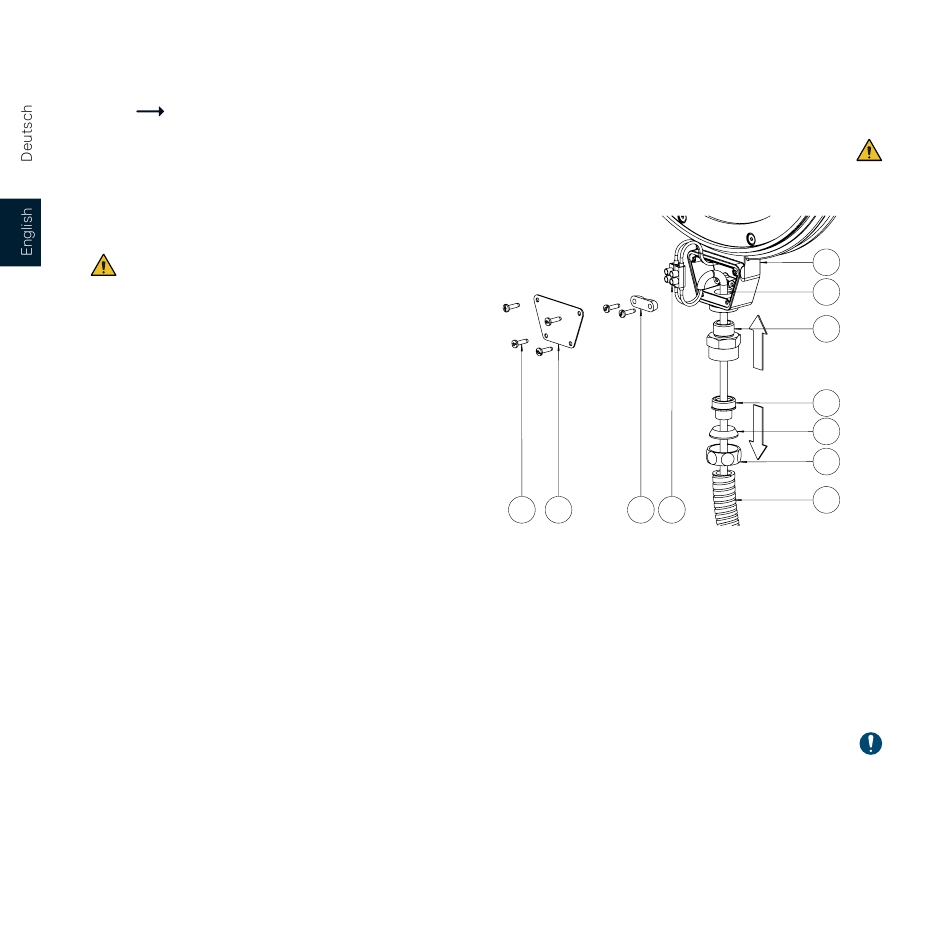

Figure 9
Installation with protective hose
If necessary, trim the protective hose (Fig. 8-A) to
the required length using a hacksaw.
If the Rotoclear S3 is mounted on the window of a
sliding door, make sure that the section of protec-
tive hose is long enough to accommodate the full
movement of the door.
Deburr the ends. Fit both nuts (Fig. 9-B) and the seal
(Fig. 9-C) of the hose fitting on the protective hose
in the appropriate orientation and screw the brass
sleeve (Fig. 9-D) back into the ends to fasten it.
J I G
66
F
H
E
D
C
B
A
