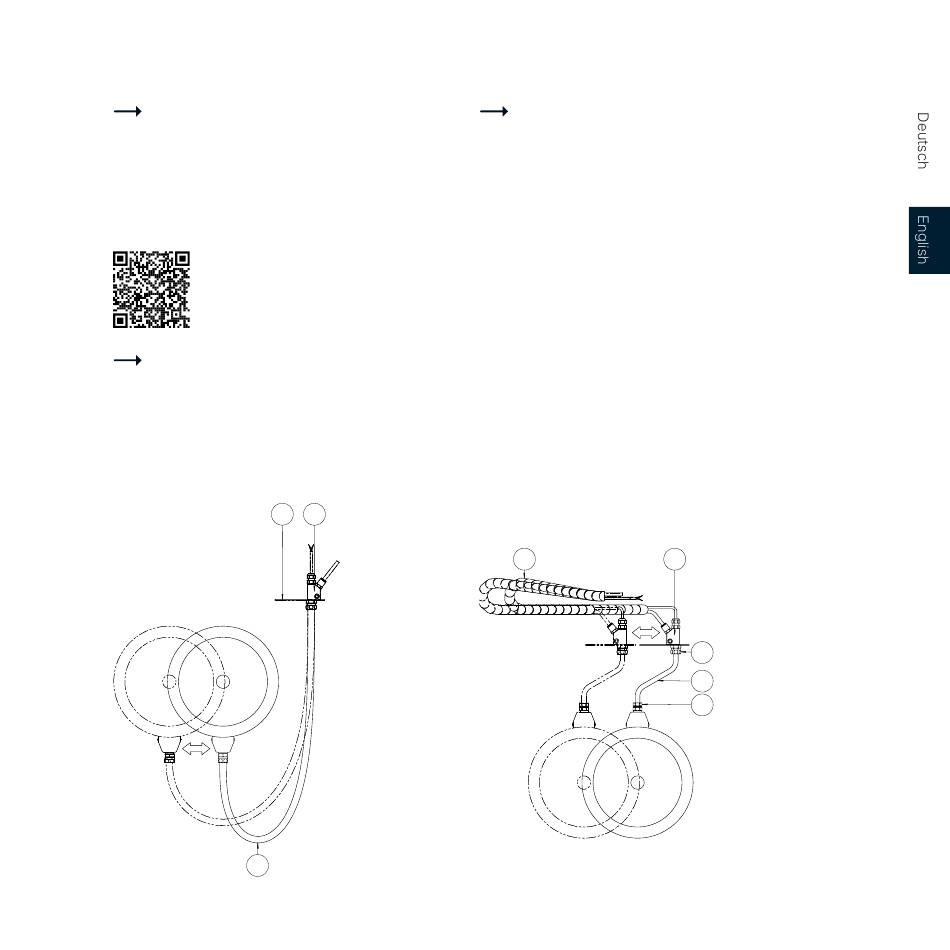

Read the instructions for aligning the unit
on the Rotoclear S3 adapter flange for third-par-
ty units with a hole 226.7 mm in diameter. Posi-
tion the side with the inserted sealing ring in the
desired orientation on the interior side of the ma-
chinery glass.
Read the additional mounting information
rotoclear.com/en/rotoclear-S3-assembly-
instructions
C
A
third-party devices with a hole 226.7 mm in di-
ameter. Alternatively, if using a support disc and
mounting plate, mount the Rotoclear S3 on the
mounting plate using the enclosed UNC 4.40 x 7
hexagon socket screws.
If using a screw flange with internally threaded
bushings, mount the Rotoclear S3 on the screw
flange inside the pane using the enclosed M3 × 8
bolts.
