Hardware Installation and Reference Guide
performance.
3.7.2

Bundling Description

After the cables are connected with the device through the waterproof plugs and power-
on is normal, use a cable tie to bundle the cables on the support and then fix the cables
neatly.

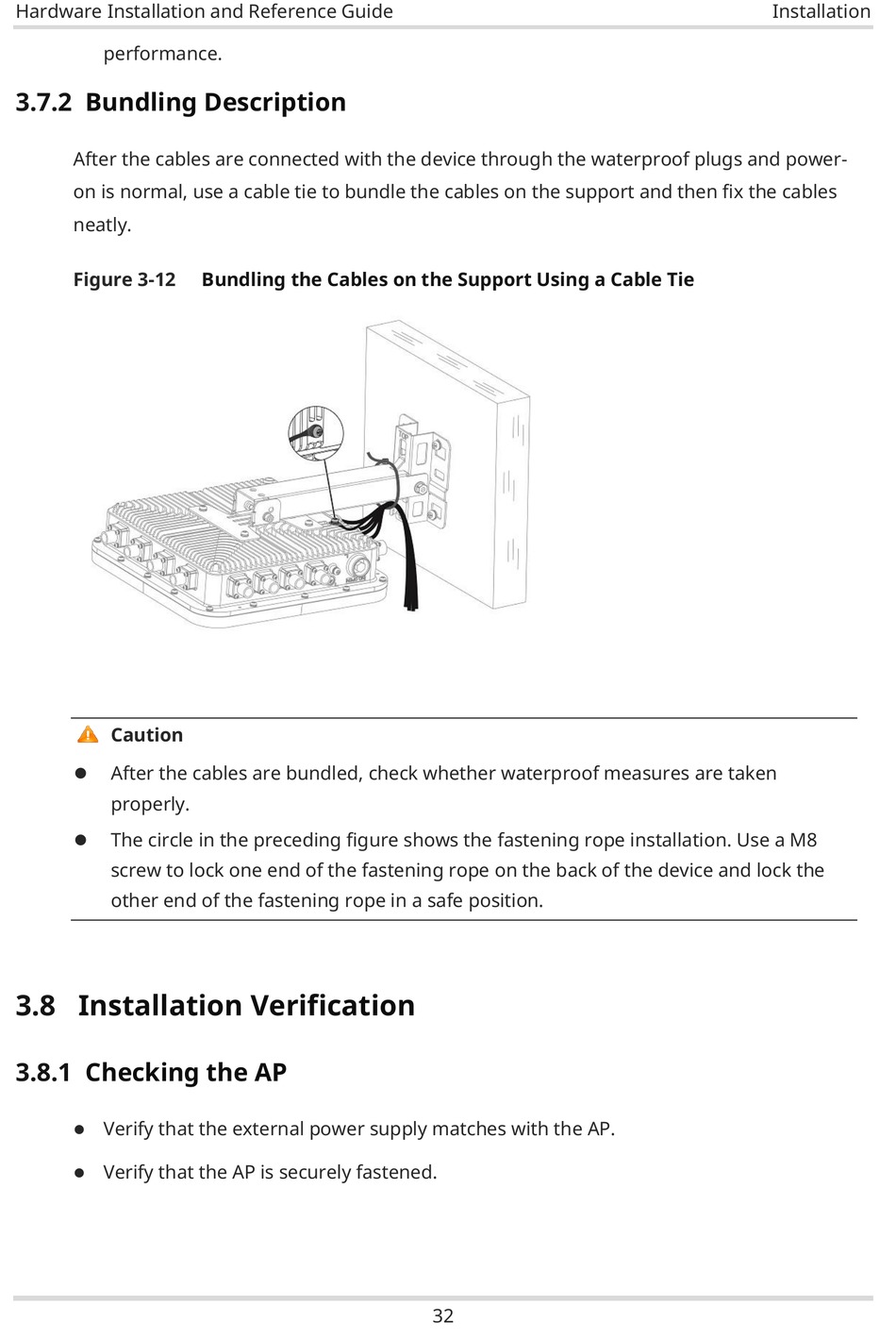

Figure 3-12
Caution
After the cables are bundled, check whether waterproof measures are taken

properly.
The circle in the preceding figure shows the fastening rope installation. Use a M8

screw to lock one end of the fastening rope on the back of the device and lock the
other end of the fastening rope in a safe position.
3.8

Installation Verification

3.8.1

Checking the AP

Verify that the external power supply matches with the AP.

Verify that the AP is securely fastened.

Bundling the Cables on the Support Using a Cable Tie
32
Installation
