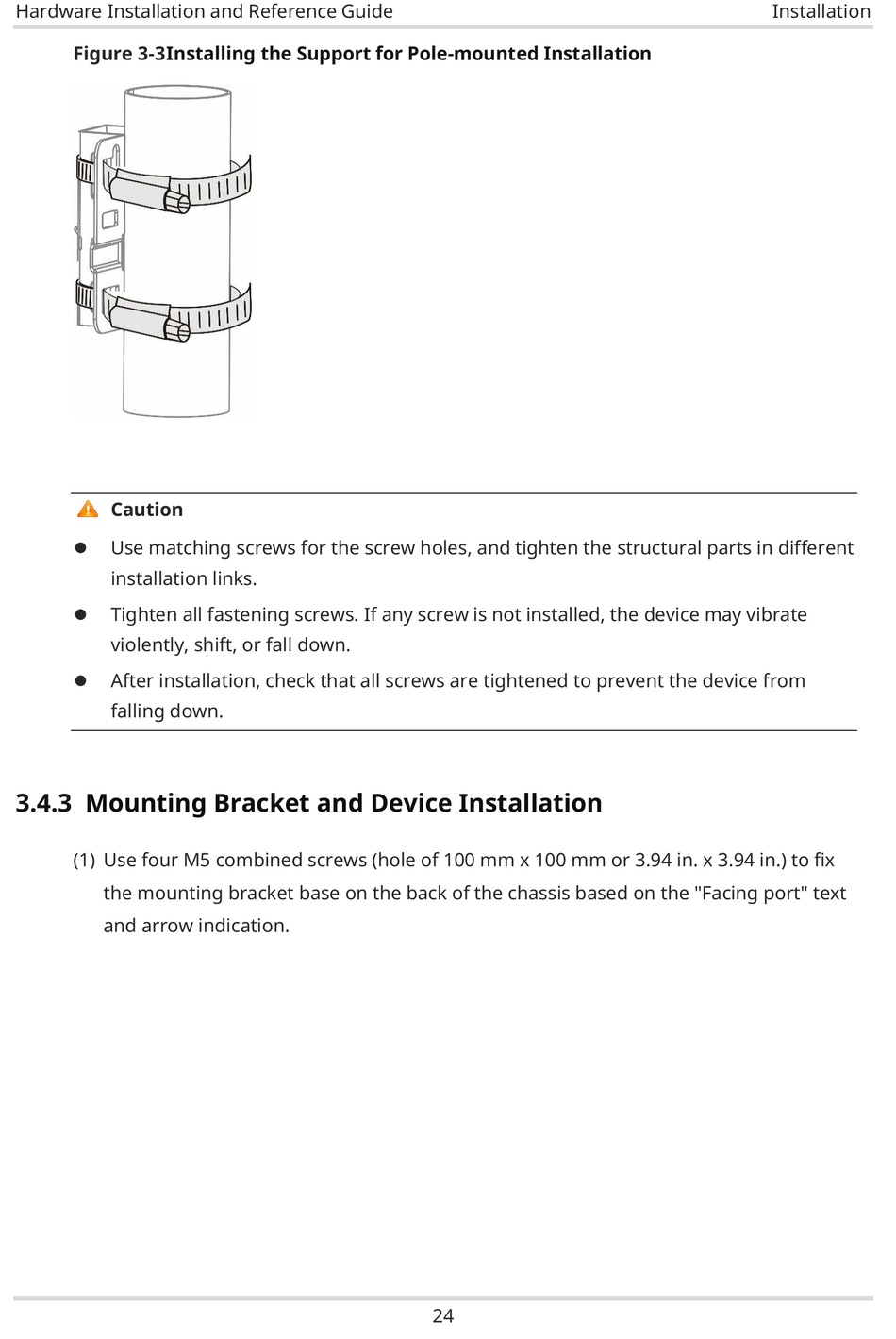

Figure 3-3 Installing the Support for Pole-mounted Installation
Caution
Use matching screws for the screw holes, and tighten the structural parts in different

installation links.
Tighten all fastening screws. If any screw is not installed, the device may vibrate

violently, shift, or fall down.
After installation, check that all screws are tightened to prevent the device from

falling down.
3.4.3

Mounting Bracket and Device Installation

(1) Use four M5 combined screws (hole of 100 mm x 100 mm or 3.94 in. x 3.94 in.) to fix
the mounting bracket base on the back of the chassis based on the "Facing port" text
and arrow indication.
