Hardware Installation and Reference Guide

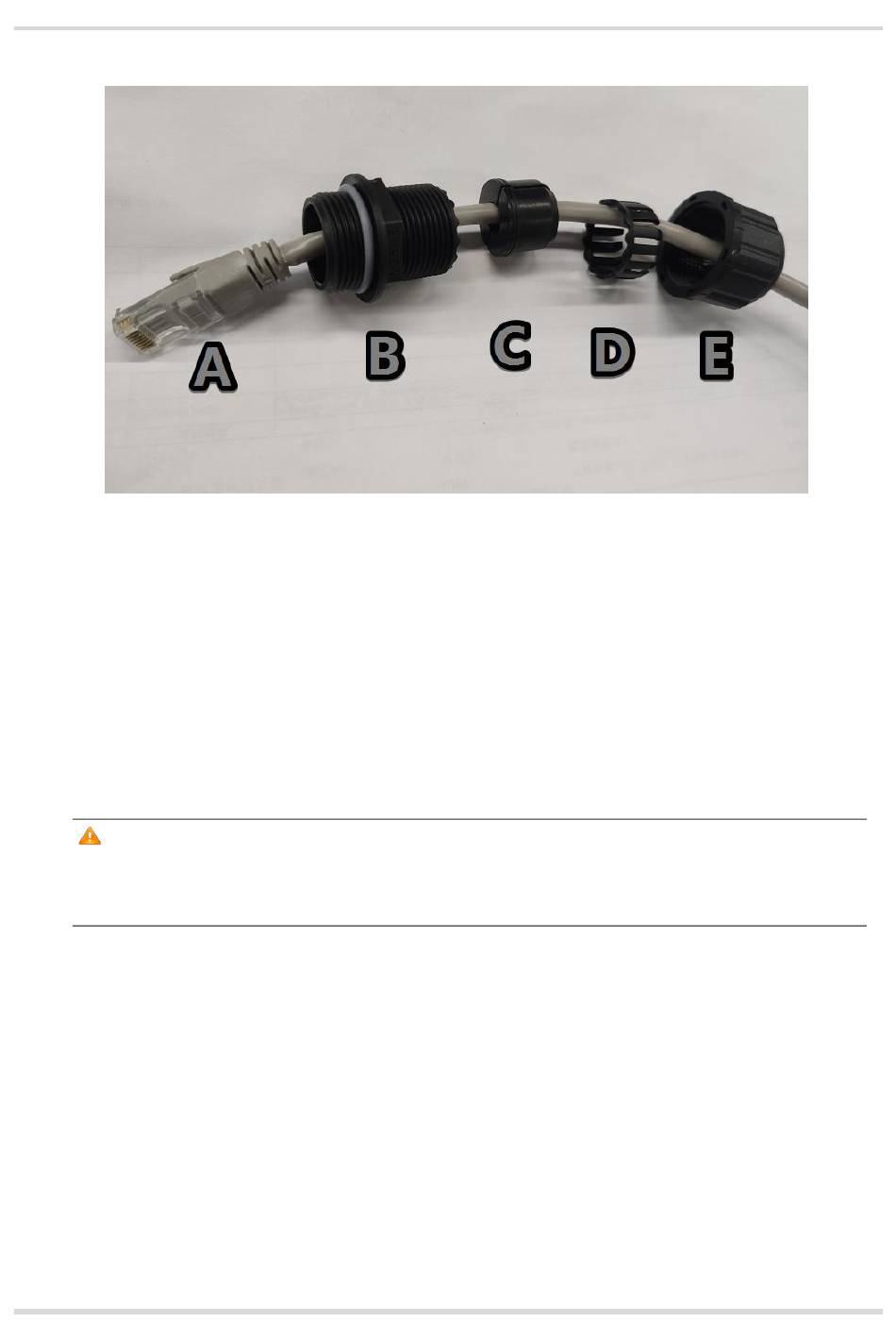

Figure 3-10
(3) Insert the crystal connector of the network cable into the network port on the AP and
tighten the waterproof PG connector based on the sequence of parts B, C, D, and E.
The network cable is installed.
(4) Paint waterproof cement and wrap waterproof tapes on the PC connector to ensure
waterproof.
3.6.3

Connecting the Fiber-Optic Cable

Caution
The diameter of the actually used LC-LC fiber-optic cable must be within the range of 2.5
mm to 3.5 mm. A too thick or too thin cable cannot ensure the waterproof performance.
(1) Select an LC-LC fiber-optic cable whose diameter is 2.7±0.2 mm and pass the fiber-
optic cable through the waterproof connector based on the sequence shown in the
following figure.
Passing the Network Cable Through the Waterproof PG Connector
30
Installation
