Hardware Installation and Reference Guide
4

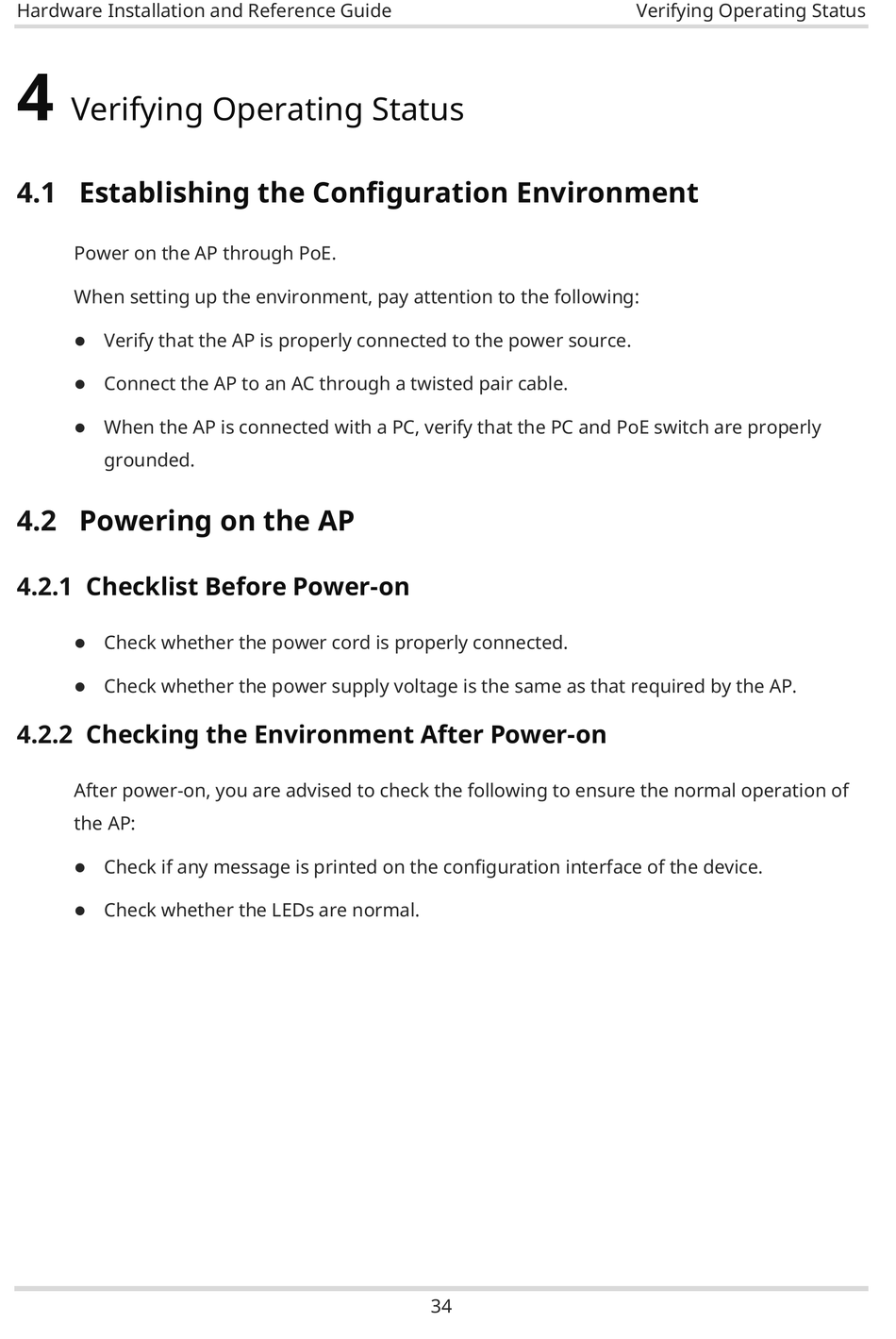

Verifying Operating Status

4.1

Establishing the Configuration Environment

Power on the AP through PoE.
When setting up the environment, pay attention to the following:
Verify that the AP is properly connected to the power source.

Connect the AP to an AC through a twisted pair cable.

When the AP is connected with a PC, verify that the PC and PoE switch are properly

grounded.
4.2

Powering on the AP

4.2.1

Checklist Before Power-on

Check whether the power cord is properly connected.

Check whether the power supply voltage is the same as that required by the AP.

4.2.2

Checking the Environment After Power-on

After power-on, you are advised to check the following to ensure the normal operation of
the AP:
Check if any message is printed on the configuration interface of the device.

Check whether the LEDs are normal.

34
