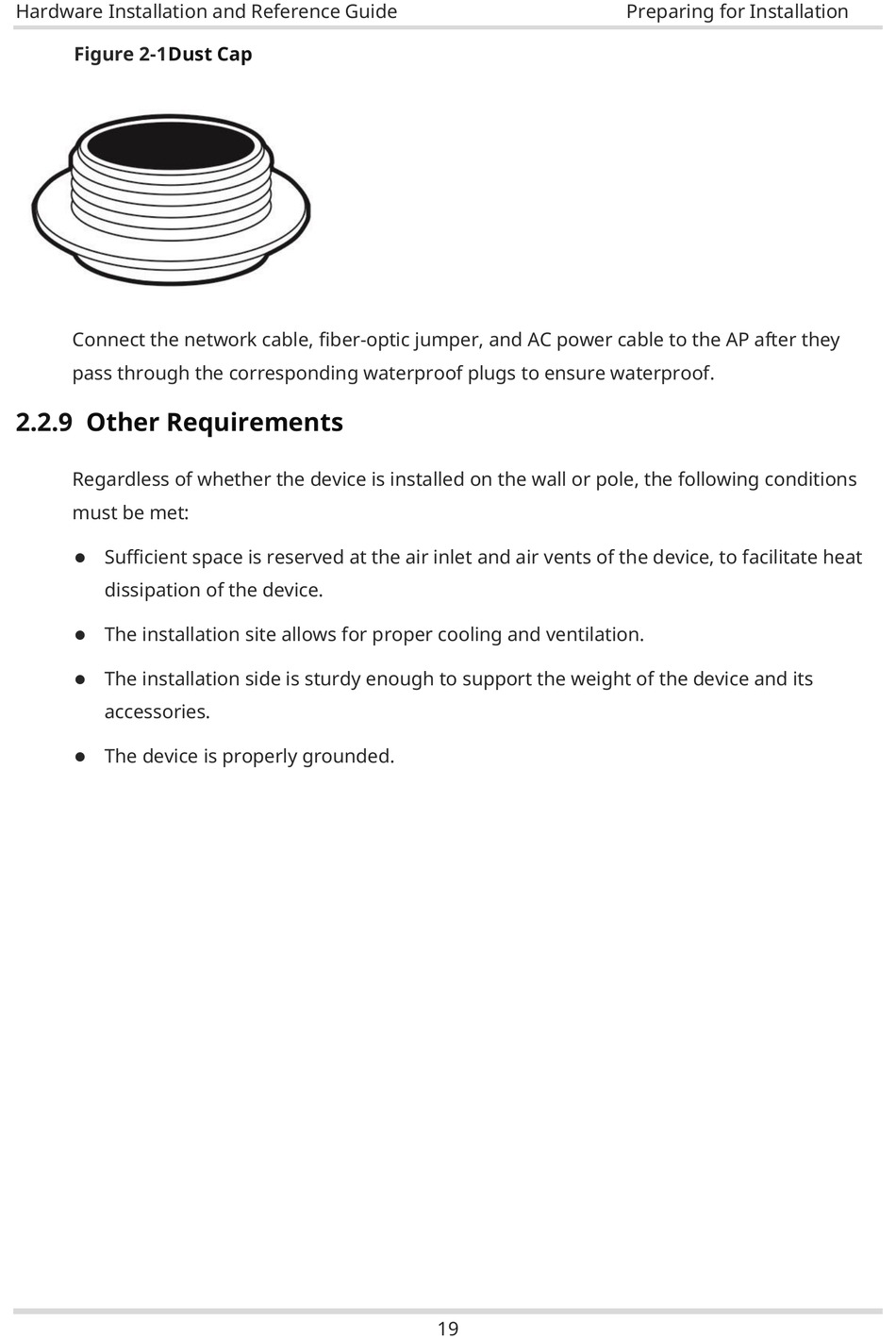

Figure 2-1 Dust Cap
Connect the network cable, fiber-optic jumper, and AC power cable to the AP after they
pass through the corresponding waterproof plugs to ensure waterproof.
2.2.9

Other Requirements

Regardless of whether the device is installed on the wall or pole, the following conditions
must be met:
Sufficient space is reserved at the air inlet and air vents of the device, to facilitate heat

dissipation of the device.
The installation site allows for proper cooling and ventilation.

The installation side is sturdy enough to support the weight of the device and its

accessories.
The device is properly grounded.

