Operation options
52
8.3 Access to the operating menu via the local display
8.3.1

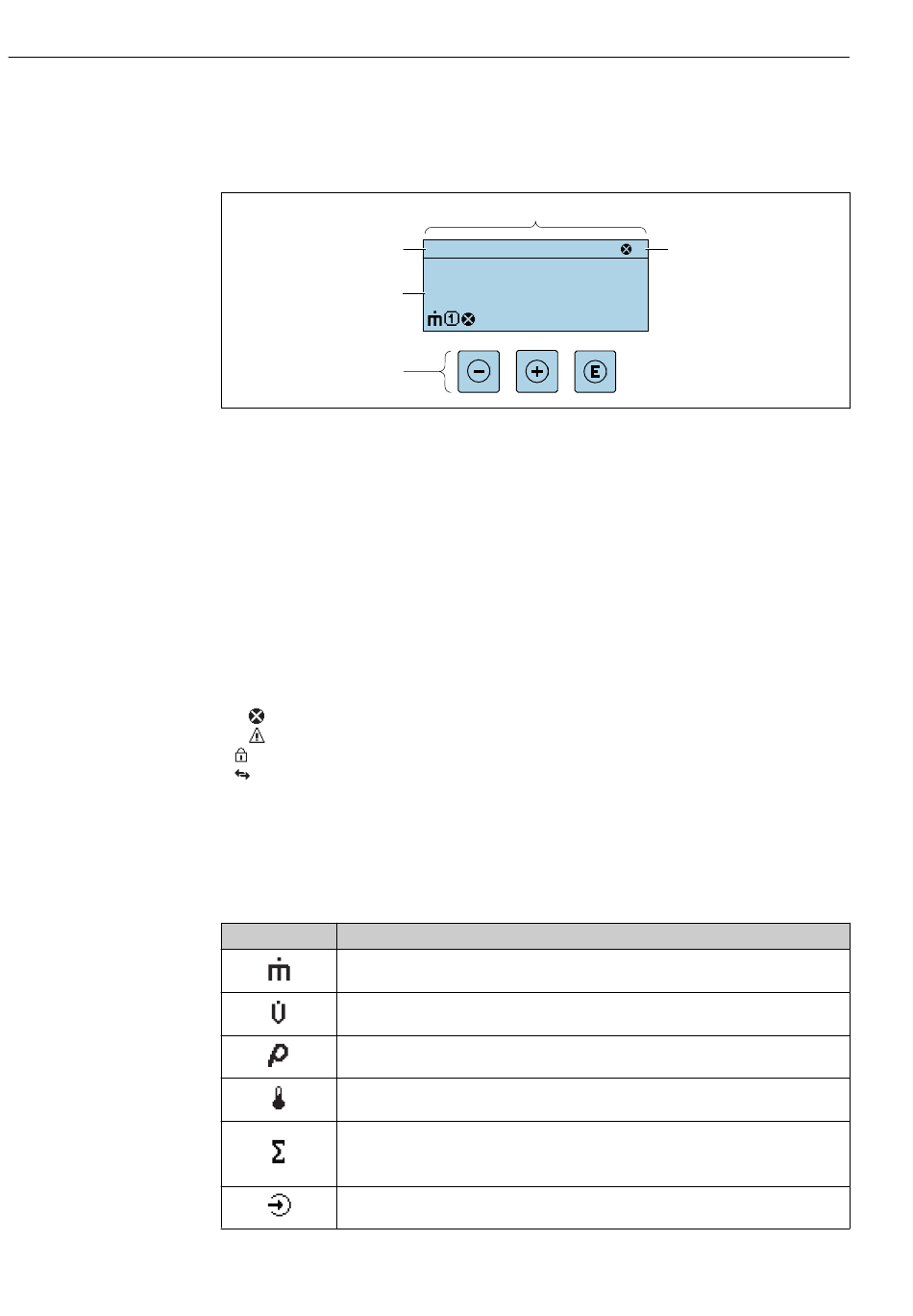

Operational display

2
4
5
1 Operational display
2 Device tag
3 Status area
4 Display area for measured values (4-line)
5 Operating elements→  57
Status area
The following symbols appear in the status area of the operational display at the top right:
• Status signals→  159
• F: Failure
• C: Function check
• S: Out of specification
• M: Maintenance required
• Diagnostic behavior→  160
• : Alarm
• : Warning
• : Locking (the device is locked via the hardware )
• : Communication (communication via remote operation is active)
Display area
In the display area, each measured value is prefaced by certain symbol types for further
description:
Measured values
Symbol Meaning
Mass flow
• Volume flow
• Corrected volume flow
• Density
• Reference density
Temperature
Totalizer

The measurement channel number indicates which of the three totalizers is
displayed.
Status input
1
X X X X X X X X X
1120.50
Proline Promass I 300 PROFINET
F
3
kg/h
Endress+Hauser
A0029348
