Proline Promass I 300 PROFINET
Endress+Hauser

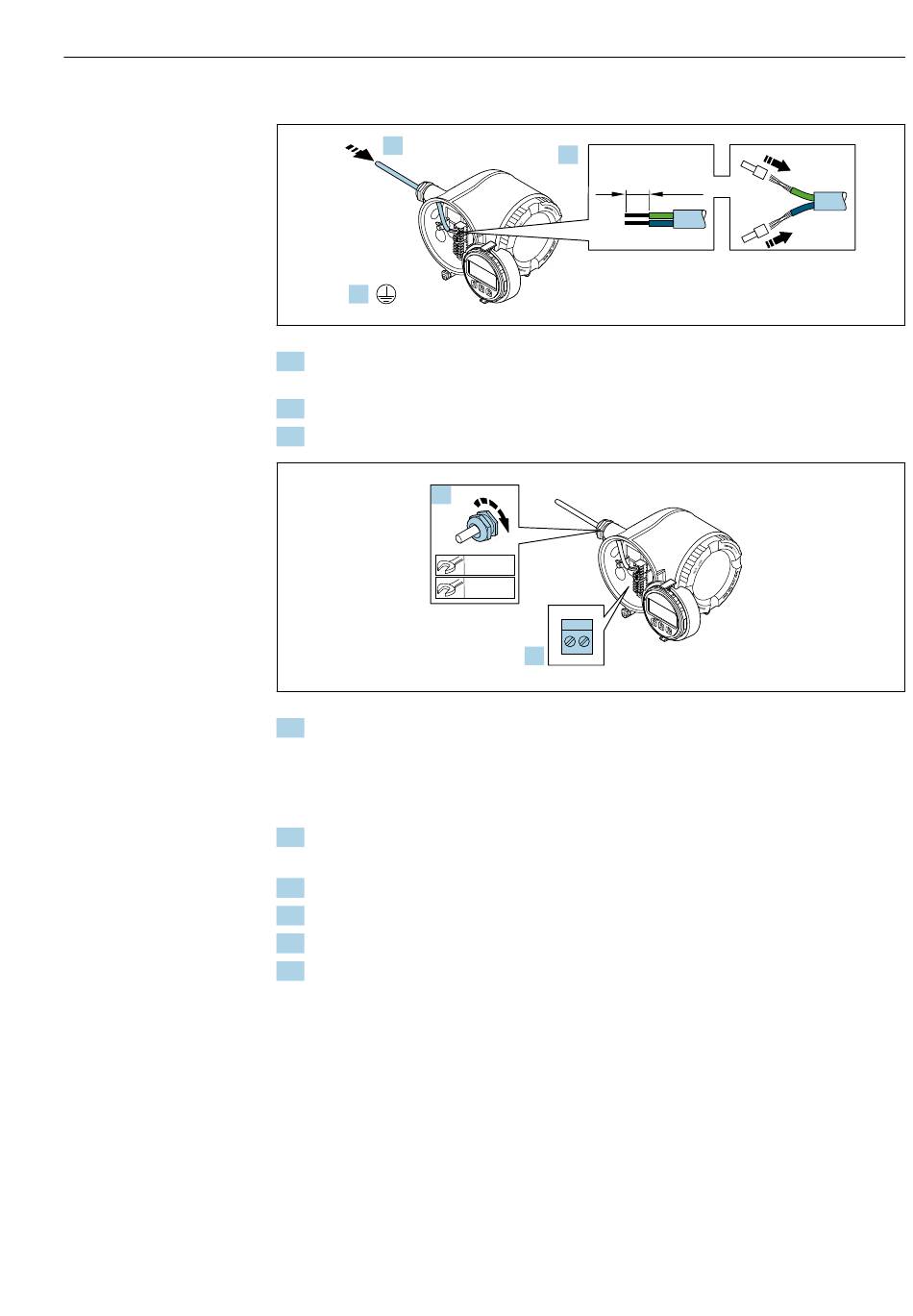

Connecting the supply voltage and additional inputs/outputs
1.
3.
1. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
2. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
3. Connect the protective ground.
5.
4. Connect the cable in accordance with the terminal assignment .
 Signal cable terminal assignment: The device-specific terminal assignment is
documented on an adhesive label in the terminal cover.
Supply voltage terminal assignment: Adhesive label in the terminal cover or
→  34.
5. Firmly tighten the cable glands.
 This concludes the cable connection process.
6. Close the terminal cover.
7. Fit the display module holder in the electronics compartment.
8. Screw on the connection compartment cover.
9. Secure the securing clamp of the connection compartment cover.
2.
mm (in)
ES
C
–
+
E
22 mm
24 mm
4.
Electrical connection
10 (0.4)
ES
C
–
+
E
A0033983
A0033984
