Removing and Replacing a PCI Smart Fan Assembly

The PCI smart fan assembly is located in front of the PCI card cage. The fan assembly is a hot-swap
component. Refer to "Hot-swap CRUs" on page 137 for a list and description of hot-swap CRUs.
CAUTION Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD
safety precautions could result in damage to the server.

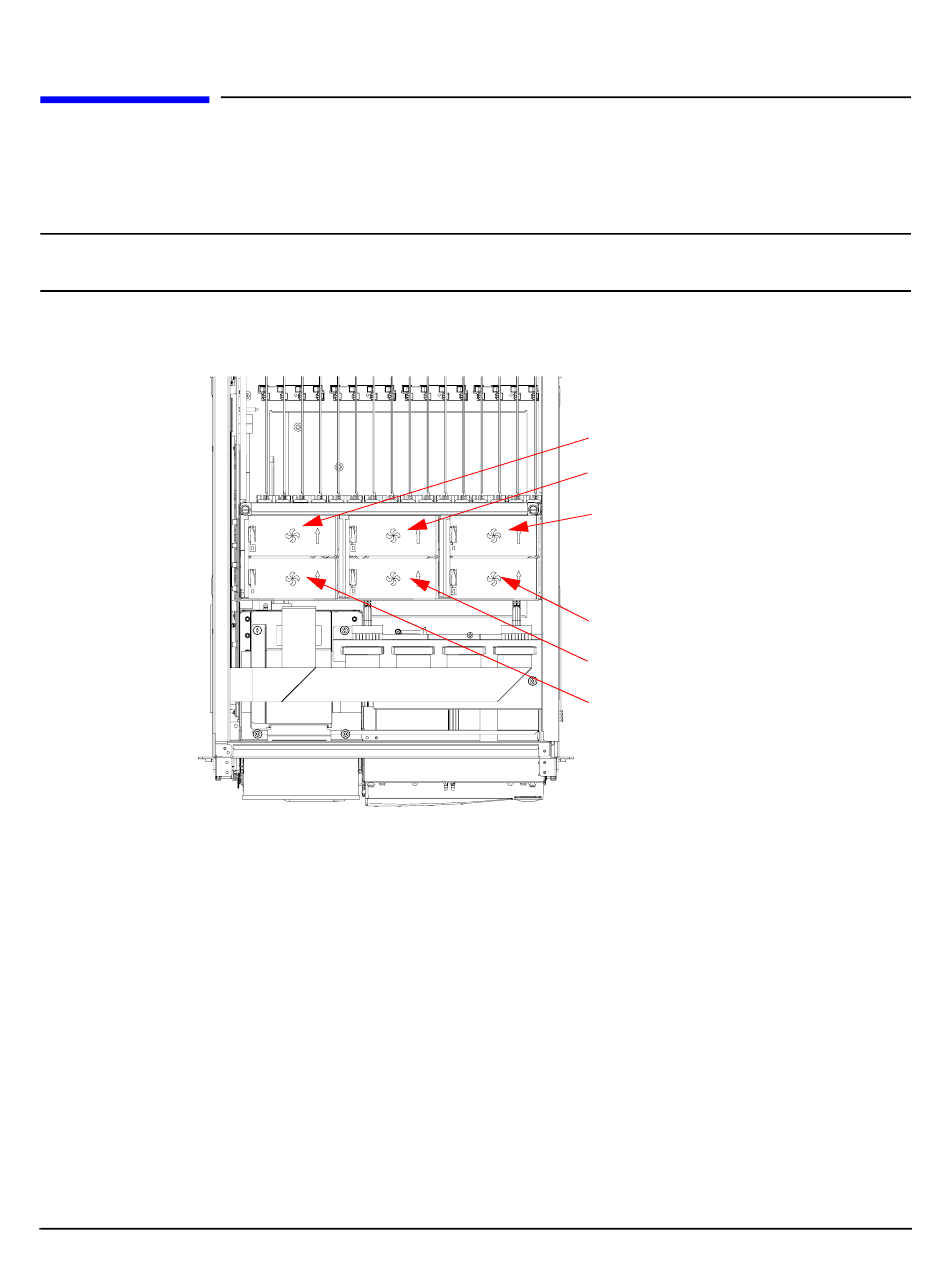

Figure 6-18 PCI Smart Fan Assembly Location

Preliminary Procedures

These procedures must be completed before removing the PCI smart fan assembly.
Step 1. Identify the failed fan assembly. Table 6-4 on page 164 defines the fan LED states.
Step 2. Connect to ground with a wrist strap. Refer to "Electrostatic Discharge" on page 138 for more
information.
Chapter 6
Front of Server
Removing and Replacing a PCI Smart Fan Assembly
Fan 0
Fan 1
Fan 2
Fan 5
Fan 4
Fan 3
