DVD+RW Installation Instructions

The CD/DVD/DAT is located in the front of the chassis. The system power to this component must be removed
before attempting to remove or replace it. Follow the procedures below to install the DVD+RW drive.
Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD
CAUTION
safety precautions could result in damage to the server.

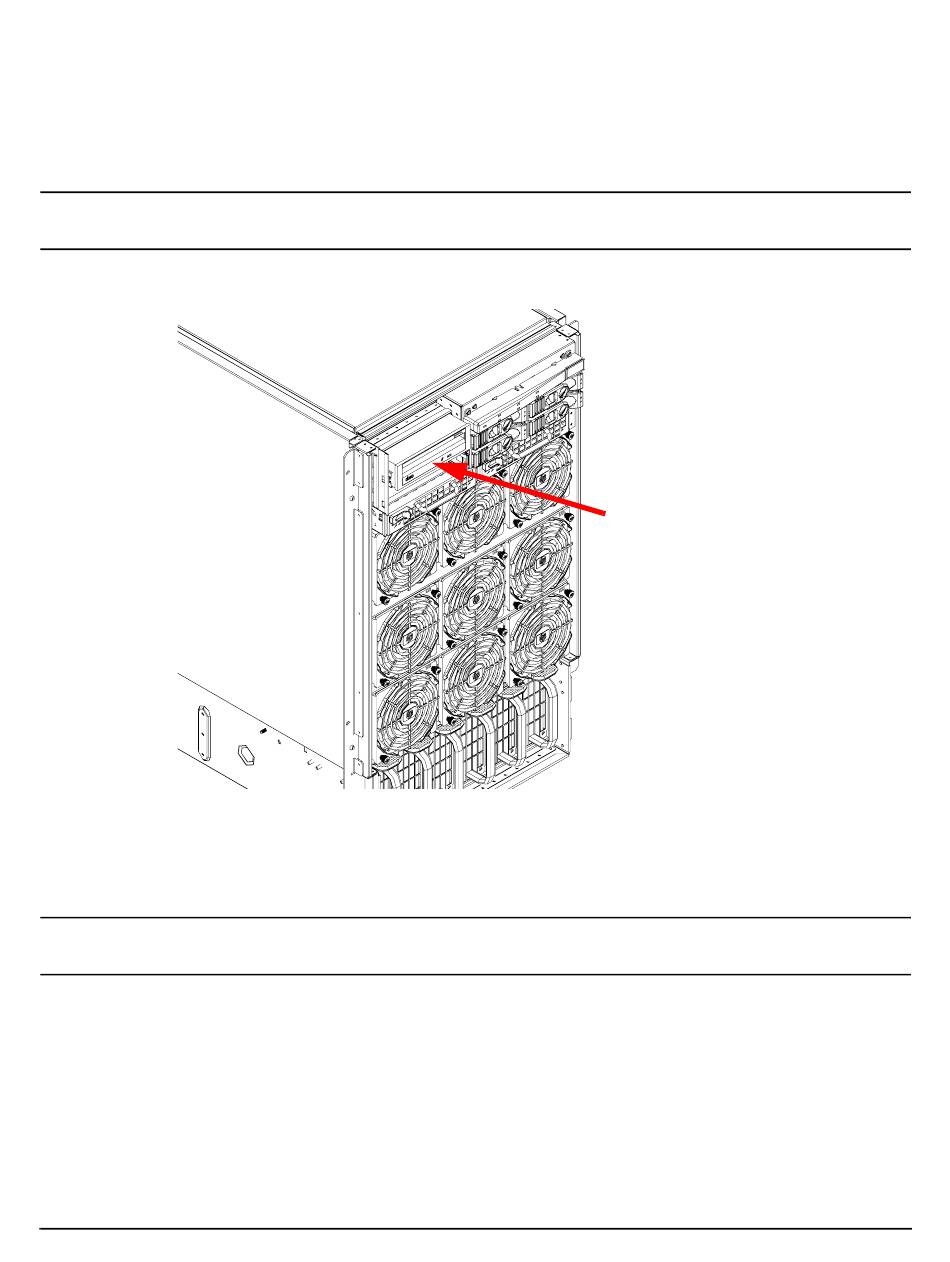

Figure 3-3 Removable Media Bay Location
Step 1. Remove the front bezel and top cover. See "Removing the Front Bezel" and "Removing the Top
Cover" in the Remove and Replace Procedures of the HP Service Guide.
Step 2. Remove the drive bay blank or removable media drive.
NOTE
Step 3. Remove the DVD+RW drive from package.
Step 4. Install the side rails onto the drive.
Step 5. Connect the removable media bay power cable to the loose end of the Y power cable on the
DVD+RW assembly. Ensure that the mating connector pair passes through the ruggedizer.
Step 6. Route the removable media bay power cable into the ruggedizer cable clip.
Chapter 3
In the HP Integrity rx8620 Server, the upper removable media drive must be
removed to access the lower removable media drive.
Installing Accessories
Installing Add-On Products
69
