Troubleshooting
HP Integrity rx8620 Server LED Indicators

PCI Power Supply LEDs

There are three LEDs on the PCI power supply. The green power LED reports overall power status for the
PCI power supply. The yellow attention LED is not currently used for status. The multi-colored fault LED
reports faults and warnings.

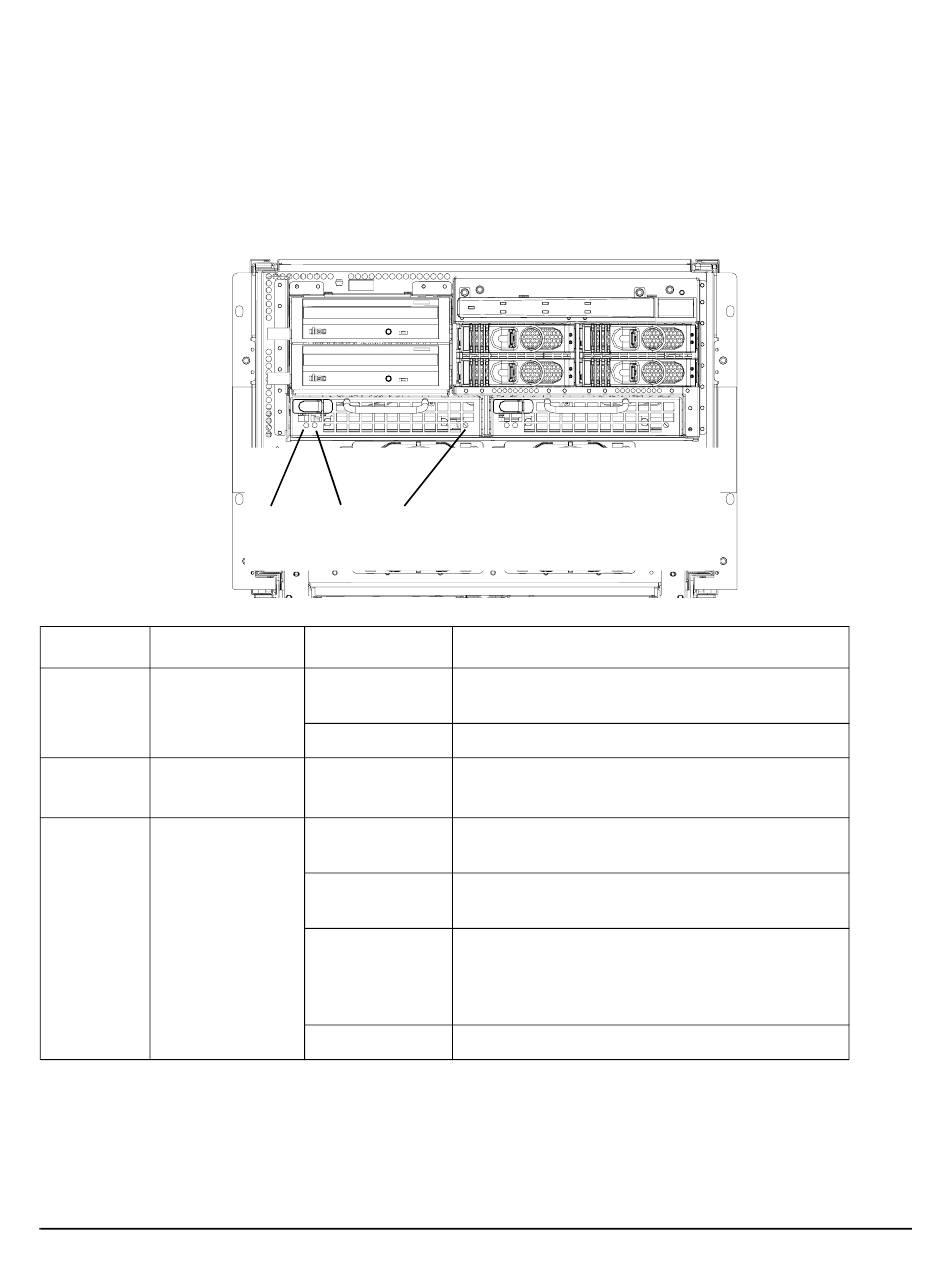

Figure 5-3 PCI Power Supply LED Locations
Table 5-3 PCI Power Supply LEDs
LED Driven By
Power Each supply
Attention MP through PCI
a
LPM
Fault Each supply
a. LPM stands for local power monitor
110
Power Attention Fault
State
On Green
Off
Yellow
Flash Yellow
On Yellow
Flash Red
Off
Description
All output voltages generated by the power
supply are within limits.
Power to entire system has been removed.
Not currently used for status.
The temperature within the power supply is
above the lower threshold.
The temperature of the power supply is
approaching the thermal limit.
Power supply has shut down because of an over
temperature condition, a failure to regulate the
power within expected limits, or a
current-limit condition.
Normal operation.
Chapter 5
