Introduction
Detailed HP Integrity rx8620 Server Description

HP Integrity rx8620 Server Description

Dimensions and Components

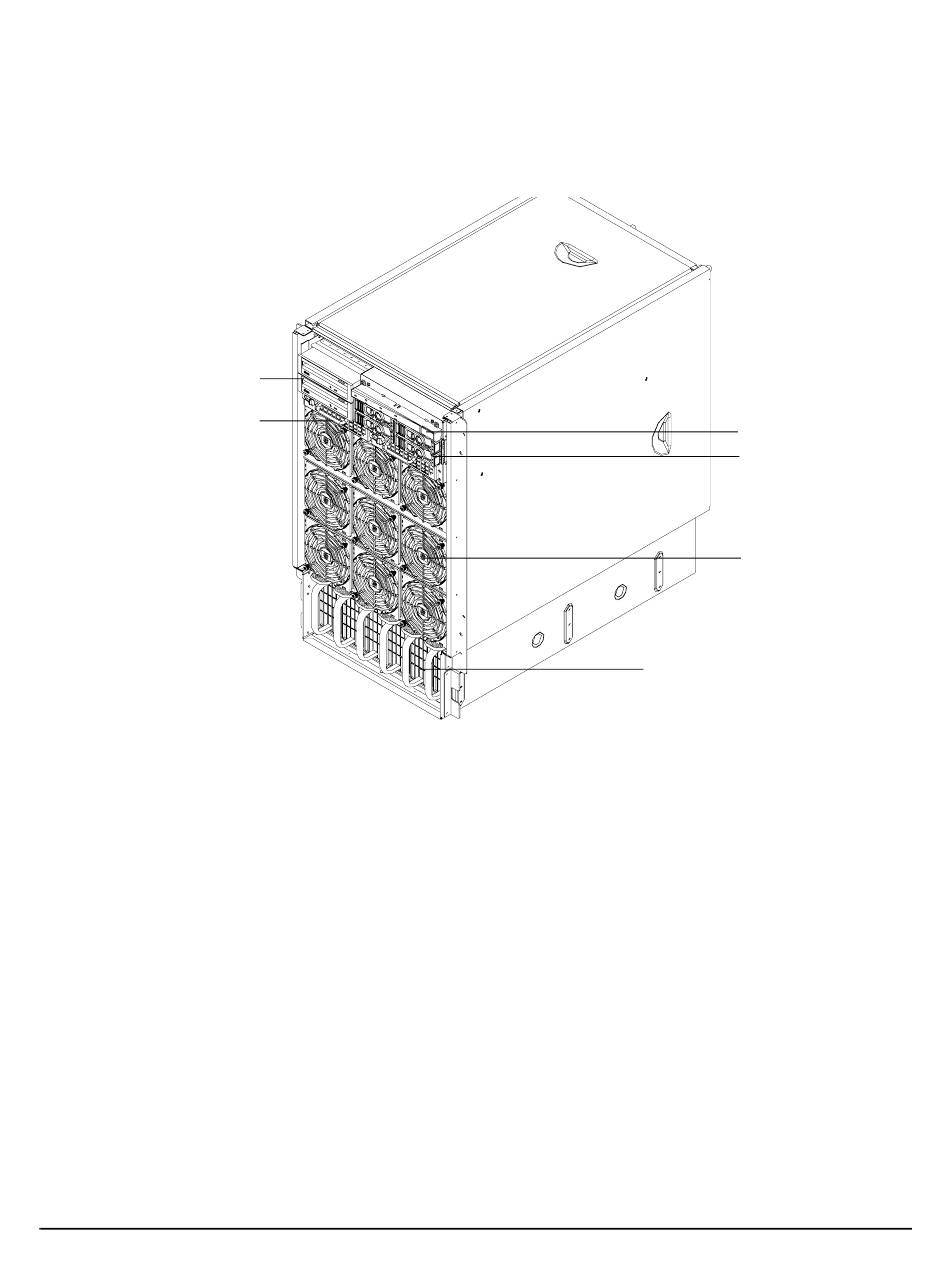

Figure 1-13 HP Integrity rx8620 Server (Front View)
Removable Media Drive
PCI Power Supply
• Depth: Defined by cable management constraints to fit into a standard 36-inch deep rack:
25.5 inches from front rack column to PCI connector surface
26.7 inches from front rack column to core I/O card connector surface
30 inches overall package dimension, including 2.7 inches protruding in front of the front rack columns
• Width: 17.5 inches, constrained by EIA standard 19 inch racks
• Height: 17U (29.55 inches), constrained by package density
The mass storage section located in the front allows access to removable media drives without removal of the
bezel (bezel not shown in figure). The mass storage bay accommodates two 5.25-inch removable media drives
and up to four 3.5-inch hard disk drives. The front panel display, containing LEDs and the system power
switch, is located directly above the hard drive media bays.
Below the mass storage section and behind a removable bezel are two PCI DC-to-DC power supplies. Each
PCI power supply will power only one I/O partition.
Enclosed with protective finger guards are nine front online replace (OLR) fan modules.
The bulk power supply is partitioned through the use of a sealed metallic enclosure located in the bottom of
the server. This enclosure houses the N+1 fully redundant bulk power supplies. These power supplies are
installed from the front of the server after removing the front bezel. The power supply is
2.45 X 5.625 X 20.0 inches.
32
Power Switch
Hard Disk Drive
Front OLR Fan
Bulk Power Supply
