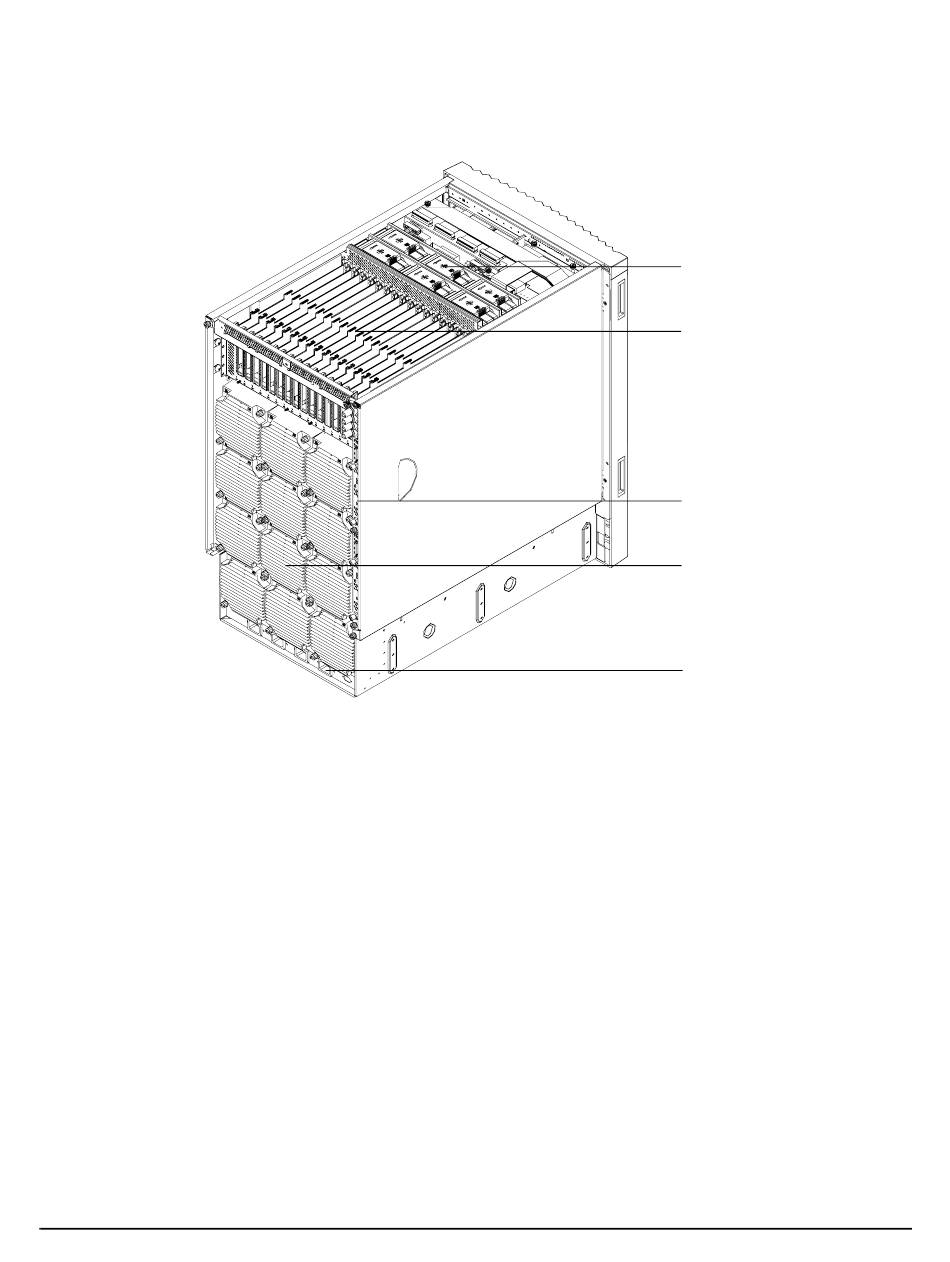

Figure 1-14
HP Integrity rx8620 Server (Rear View)
The PCI I/O card section, located toward the rear, is accessed by removing the top cover.
The PCI OLR fan modules are located in front of the PCI cards. They are housed in plastic carriers.
The cell boards are located on the right side of the product behind a removable side cover. Rack front doors are
more often hinged on the left, which restricts the large cell board to slide out from the right.
The two redundant core I/O cards are positioned vertically end-to-end at the rear of the chassis.
The PCI card bulkhead connectors are located at the rear top.
The 12 rear OLR fans attached external to the chassis house 120-mm exhaust fans.
Redundant line cords attach to the AC power receptacles at the bottom rear. Two 20-amp cords are required
to power the HP Integrity rx8620 Server. Two additional line cords provide redundancy.
Access the system backplane by removing the left side cover. The system backplane hinges from the lower
edge and is anchored at the top with a single large jack screw assembly.
The SCSI ribbon cable assembly also routes across and fastens to the backside of the system backplane near
the connectors that attach the core I/O boards.
The blue deployment handles hinge outward to help lift and move the server into a rack.
Chapter 1
Detailed HP Integrity rx8620 Server Description
PCI OLR Fan
PCI I/O Card Section
Core I/O Card
Rear OLR Fan
AC Power Receptacle
Introduction
33
