System and I/O Fan LEDs

There is a single, three-color LED located on the front OLR fan, the rear OLR fan and the PCI I/O fan.

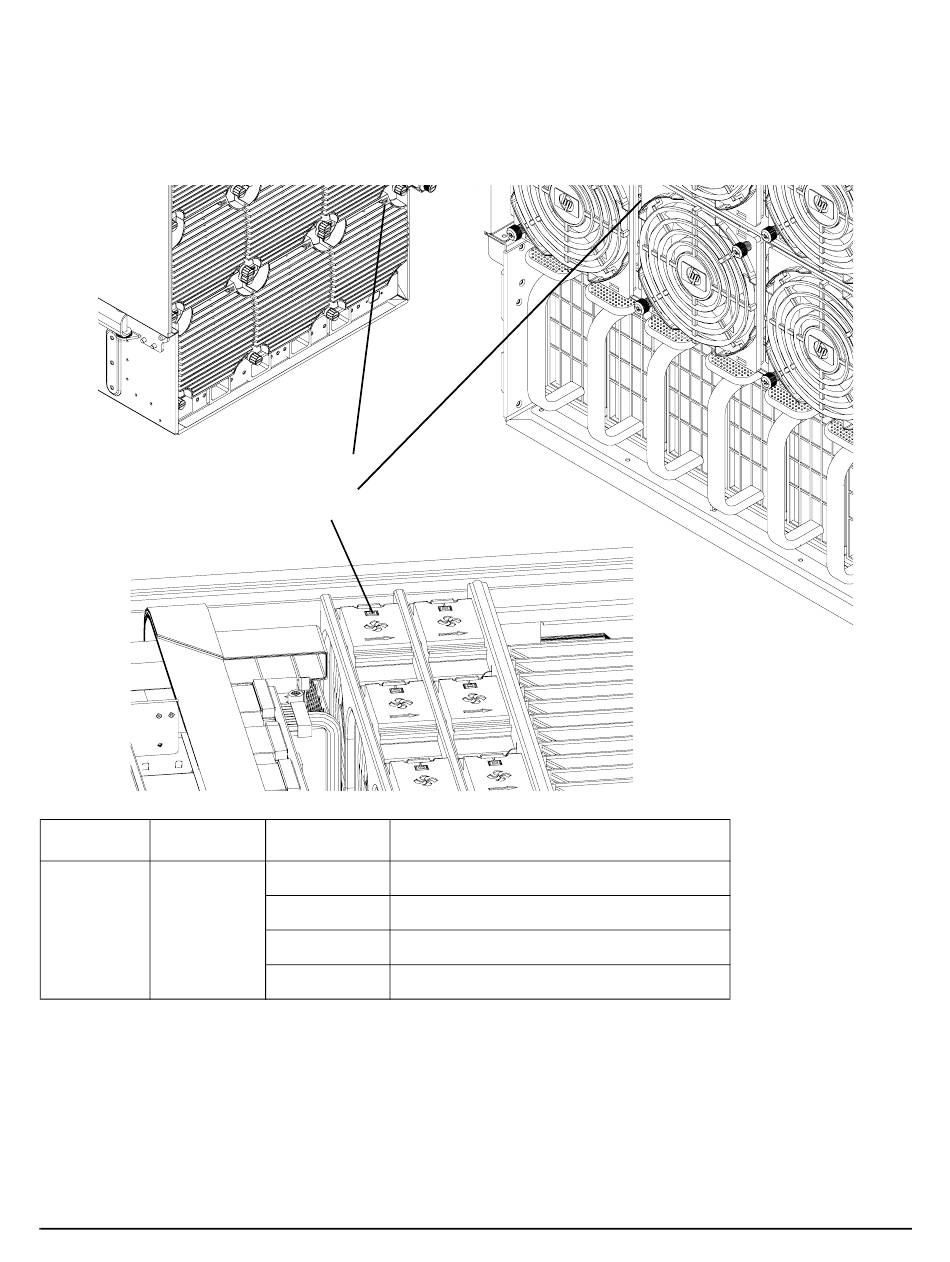

Figure 5-4 Fan LED Locations
Rear OLR Fan LED
Front OLR Fan LED
PCI I/O Fan LED
Table 5-4 Front, Rear, and I/O Fan LEDs
LED Driven By
Fan Status Fan
Chapter 5
State
Solid Green Normal
Flash Yellow Predictive Failure
Flash Red Failed
Off No Power
HP Integrity rx8620 Server LED Indicators
Description
Troubleshooting
