SENSOR PLUS™ Sensor Switch Adjustment for Control Units
The SENSOR PLUS™ Pan Half Round Sensor Switch is adjusted at the factory to a sensitivity of .25'' [6 mm]
from the face of the sensor and a time delay of 15 seconds with the range selector in the "2" position.The time
delay adjustment is 0 seconds to 600 seconds.
To adjust the Time Delay: Refer to Figure 83.
•For less time — turn Time Delay Adjustment Screw counter-clockwise (Light blinks fast)
•For more time — turn Time Delay Adjustment Screw clockwise (Light blinks slow)
Blinking Light
Adjustment Screw
Range Selector

Feeder Line

Keep anti-roost cables tightly stretched. This increases the effectiveness of the electro-guard anti-roost system and
keep the pans from being tilted when birds push against them.
Remove all feed from the feeder when there are no birds in the house and when the building is washed and
disinfected.
Turn the feeders off prior to removing the birds from the house. This will allow them to clean the feed out of the
pans.
If the system is not to be used for an extended period of time, remove all the feed from the feeder lines and feeder
pans.
Disconnect power to the system to prevent accidentally starting the system.
If the system must be disassembled, extreme caution must be used to
prevent injury from springing auger.
1.Disconnect power to the entire system.
2.Loosen the Tube Clamp on the bearing at the hopper end of the
system. Remove the Tube Clamp and Bearing Retainer.
3.Pull the Anchor and Bearing Assembly and approximately
18'' [45 cm] of auger out of the boot.
CAUTION: Stand clear...the auger may spring back
into the tube.
4.Place a clamp or locking pliers securely on the auger to prevent it from springing back into the auger boot.
5.Loosen the setscrew in the bearing assembly shaft and remove the Anchor and Bearing Assembly from the
auger.
MF1916B

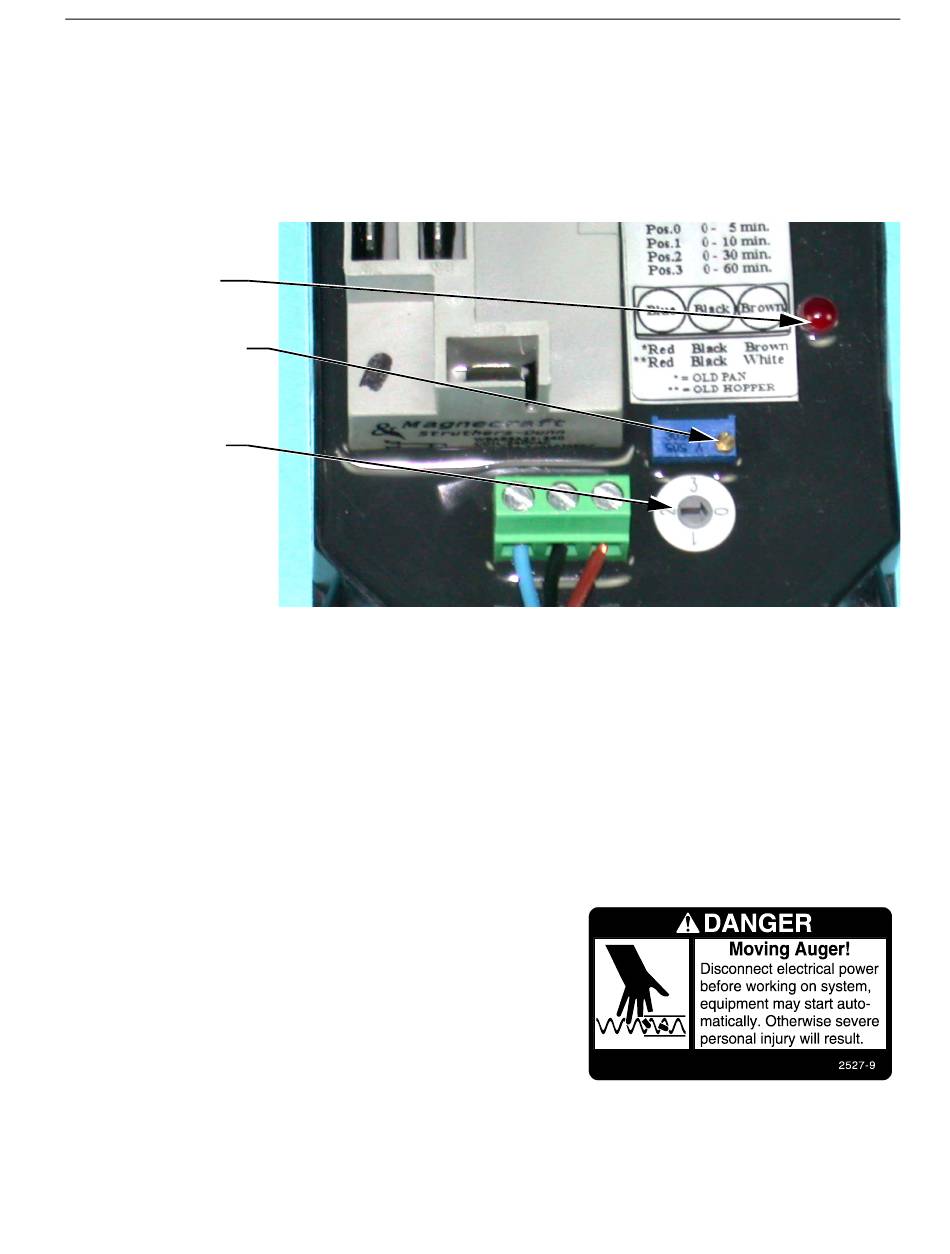

Figure 83. Adjusting the SENSOR PLUS Proximity Switch
