Auger Installation
8.Install the Metal Water Tight Connector (item 1) in the Feed Line Motor (item 2). Cut the Flex Conduit (item
3) to length. Slide the wires from the end control through the Flex Conduit (item 3). Install the Flex Conduit
(item 3) in the connectors. Connect the wires to the Feed Line Motor (item 2) (See Figure 68.)
1
Motor Wiring
10
9
9.Attach all covers and wire according to the wiring
section of this manual.
10.Pull the auger at the boot end until it begins
stretching. Then let it relax. In the relaxed position,
mark the auger at the end of the boot. See Figure
11.
11.Auger stretch:
The auger needs to be stretched 7" [180 mm] per
100' [30 m]. Example: A 300' [90 m] feeder line
requires 21" [500 mm] of stretch.
Beginning at the relaxed position, measure the
required amount of stretch. Mark the auger at that
point.
Grip the auger 8" [200 mm] ahead of this mark with locking pliers. Allow the auger to pull back into the boot
so that the pliers rest against the end of the boot. (See Figure 70.).
Use a hacksaw or bolt cutters to cut the auger at the stretched auger mark.
46
End Control
2
3
11

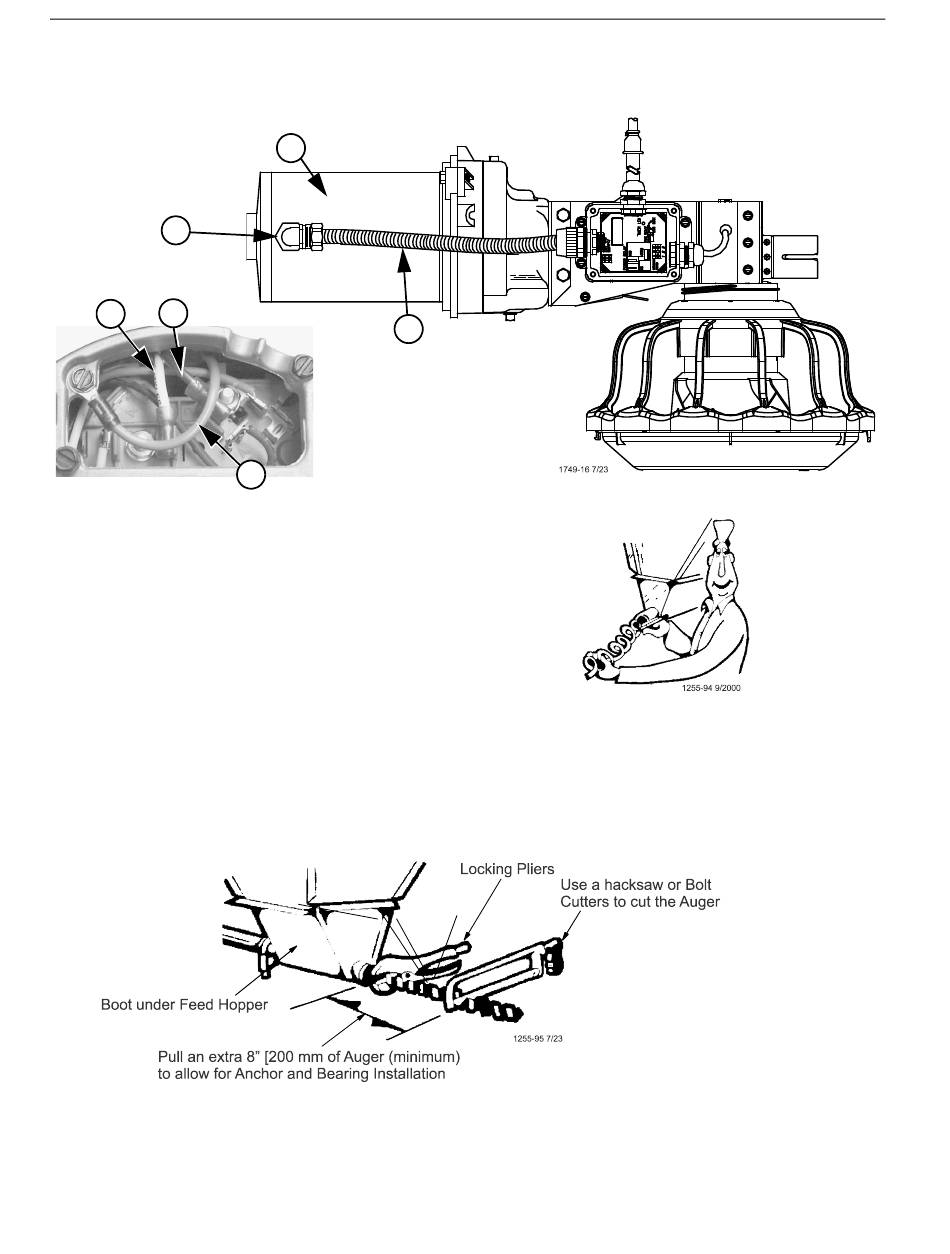

Figure 68. Wiring the Motor
Figure 70. Cut the Auger with required stretch
REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System
Figure 69. Measure the Auger from the relaxed position
