REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System
Feeder line planning (Window Cone System)
ACCU-CLICK™ Actuator
Layout figured on 96 pans.
Determine the feeder layout you will be installing. Assemble the feed pans on the tubes according to the layout
above.
Assemble the correct number of tubes with the pivot bracket on the correct side of the pan.
To ensure the pivot bracket is assembled on the correct side, stand over the actuator looking at the belled end of
the tube. The pans in front of you will have the pivot bracket on the left, while the pans behind you will have
the pivot bracket on the right.
Example: For a 9 foot tube you will assemble 6 tubes with the pivot bracket on the left side and 6 tubes with the
pivot bracket on the right side.
MF1916B

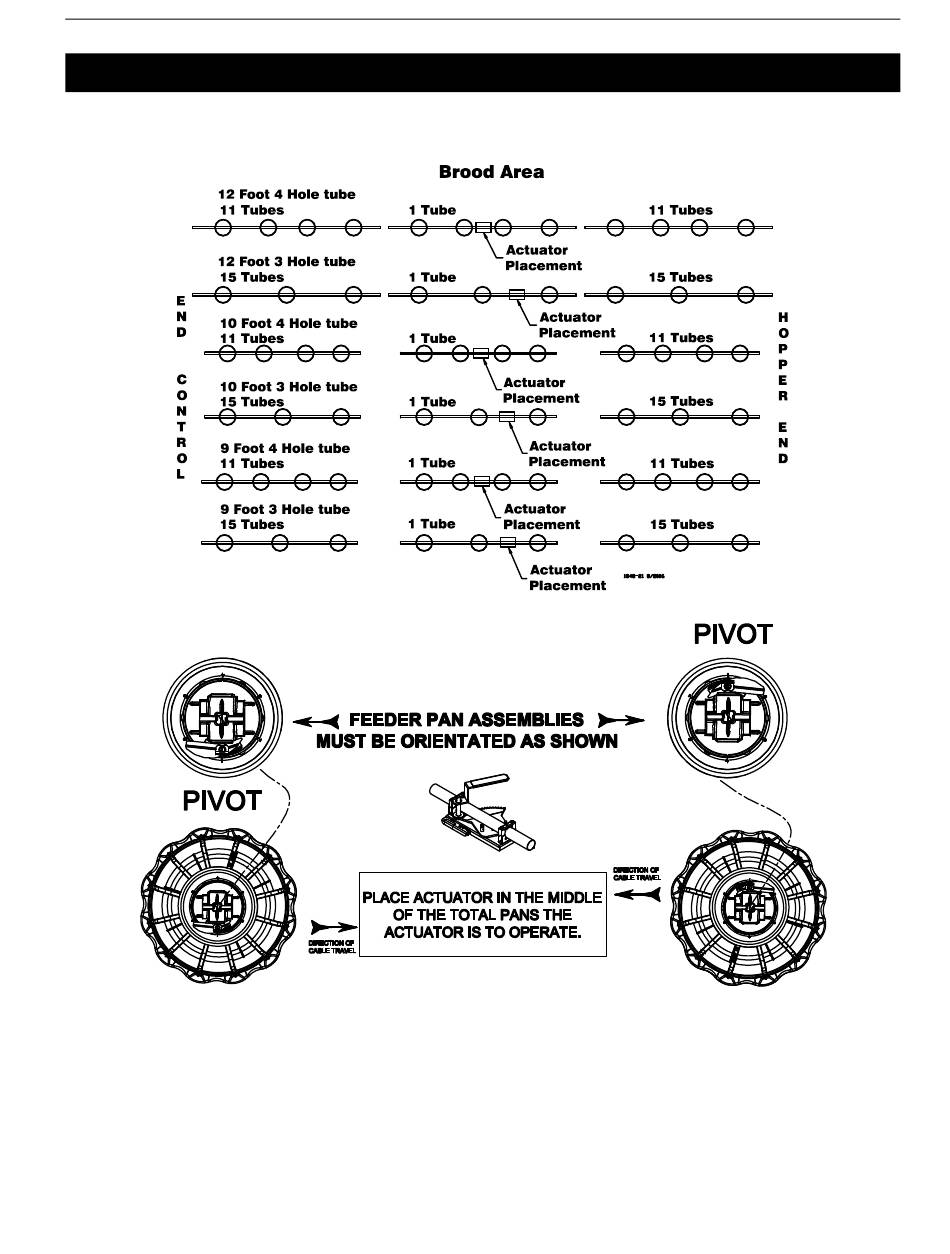

Figure 27. Typical building layout for Actuator placement.
Figure 28. Pan orientation on feeder tube.
Feeder line planning (Window Cone System)
21
