REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System
Pan Assembly Procedure for REVOLUTION 8 Feeders (Option 1)
1.Place a Grill in the pan assembly box fixture.
2.Rotate brood adjustment until cover washer is flush with outer cone, see figure 22.
Rotate before
installing grill
3.Install cone assembly in the grill, Check fit, correct, grill and cone should be snug, incorrect if grill and
cone have free motion.
4.Place the feed pan in the grill ring, The pan must be fully seated in the grill then rotate the pan until the pan
locks in their grill
Align the threads on the
support cone and the grill
cap.
Adjustment of feed level
to #2 position.
MF1916B

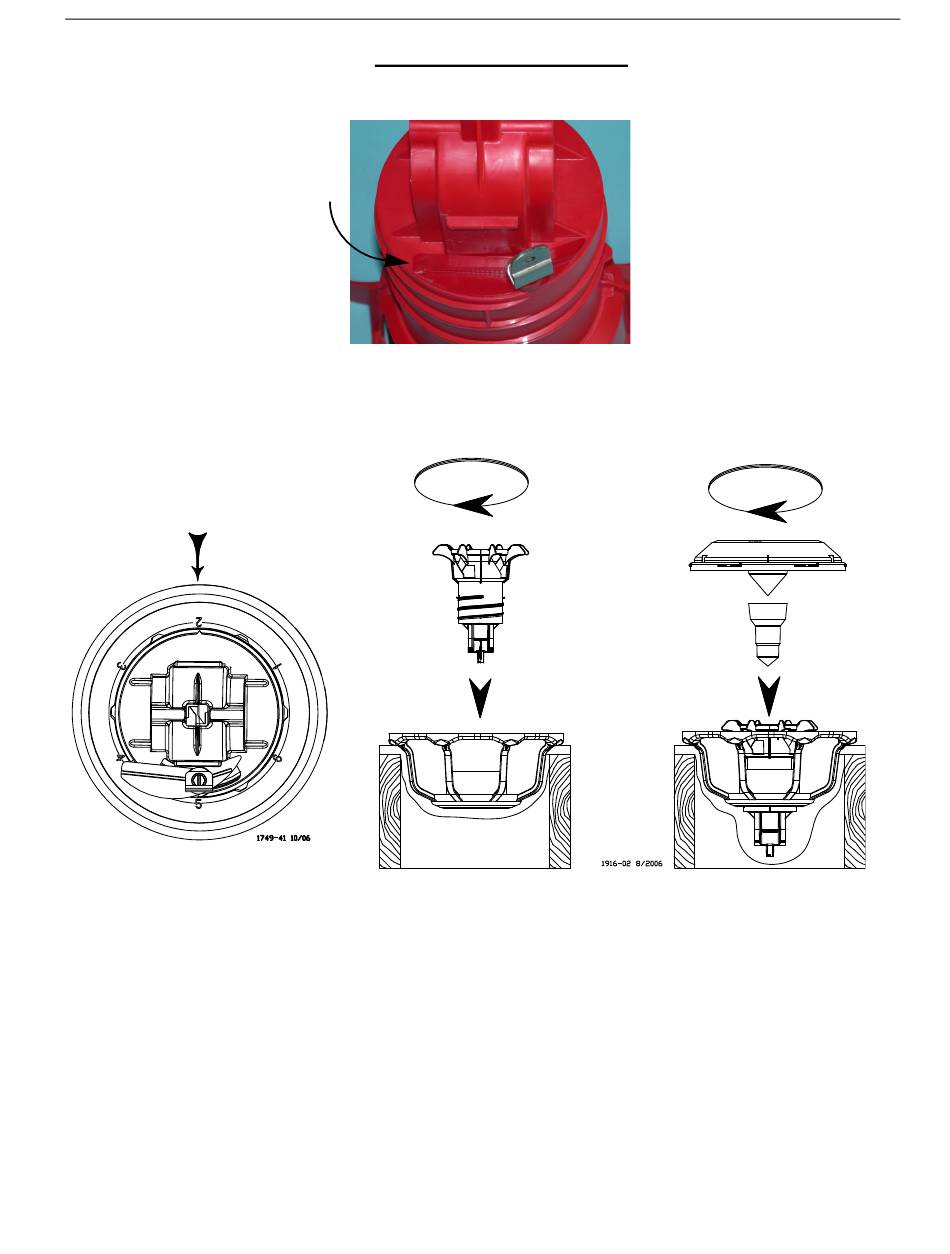

Figure 22. Rotate brood adjustment prior to grill installation.
Figure 23. Pan Assembly Option 1
Feeder Pan Assembly (Window Cone System)
19
