Feeder Pan Assembly (Indexing System)
Pan Assembly Procedure for REVOLUTION 8 Feeders (Option 1)
1.Place a Grill in the pan assembly box fixture.
2.Install cone in the grill, Check fit, correct, grill and cone should be snug, incorrect if grill and cone have
free motion.
3.Place the feed pan in the grill ring, The pan must be fully seated in the grill then rotate the pan until the pan
locks in their grill
Align the threads on the
support cone and the grill Cap
Adjustment of feed level
to #2 position.
34
REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System

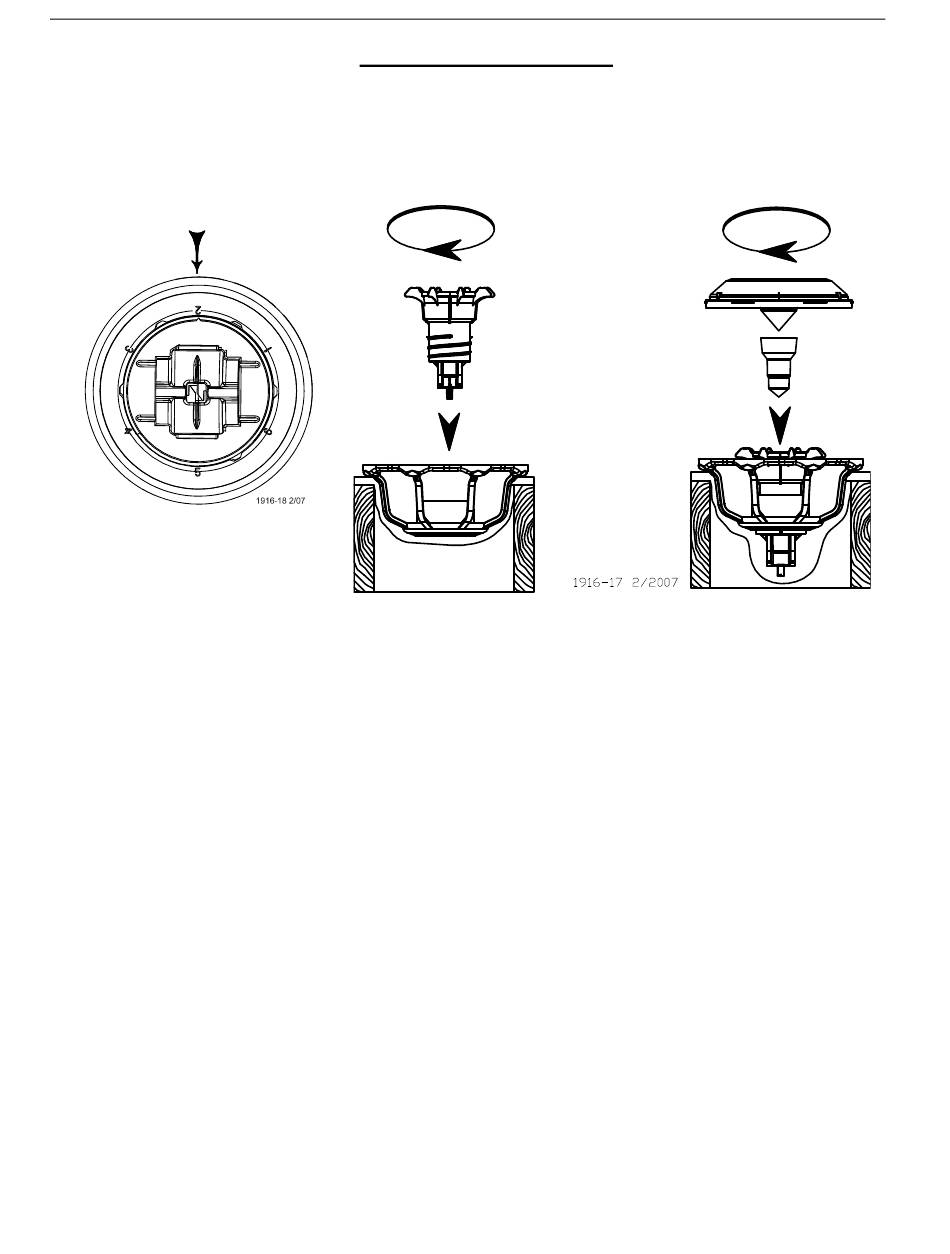

Figure 51. Pan Assembly Option 1
MF1916B
