Actuator Installation (Window Cone Systems)
Actuator Installation (Window Cone Systems)
Installing spring brackets:
1.Install the terminal spring and bracket (using (2) 1/4-
20 x 3 inch hex bolts) at the control unit, see figure 39
and 42. If necessary the last pan may need to be setup
to push the vari-brood opening, see figure 41.
2.Install the 2nd (intermediate) spring and bracket
approximately 30 feet (3 Tubes) from the 1st terminal
bracket.
3.Continue installing Brackets 30' apart using (2) 1/4-
20 x 3 inch hex bolts.
4.Assemble the spring to the spring bracket by sliding
the loop of the spring up through the third hole in the bracket,
see figure 40.
5.Repeat the procedure for the opposite end and complete the
installation of all spring brackets.
6.Max 48 pans each side of actuator.
Spring bracket installation for 9 foot 4 hole and 12
foot 5 hole tubes.
For these applications the last pan will be a pusher to actuate the
vari-brood feed feature.

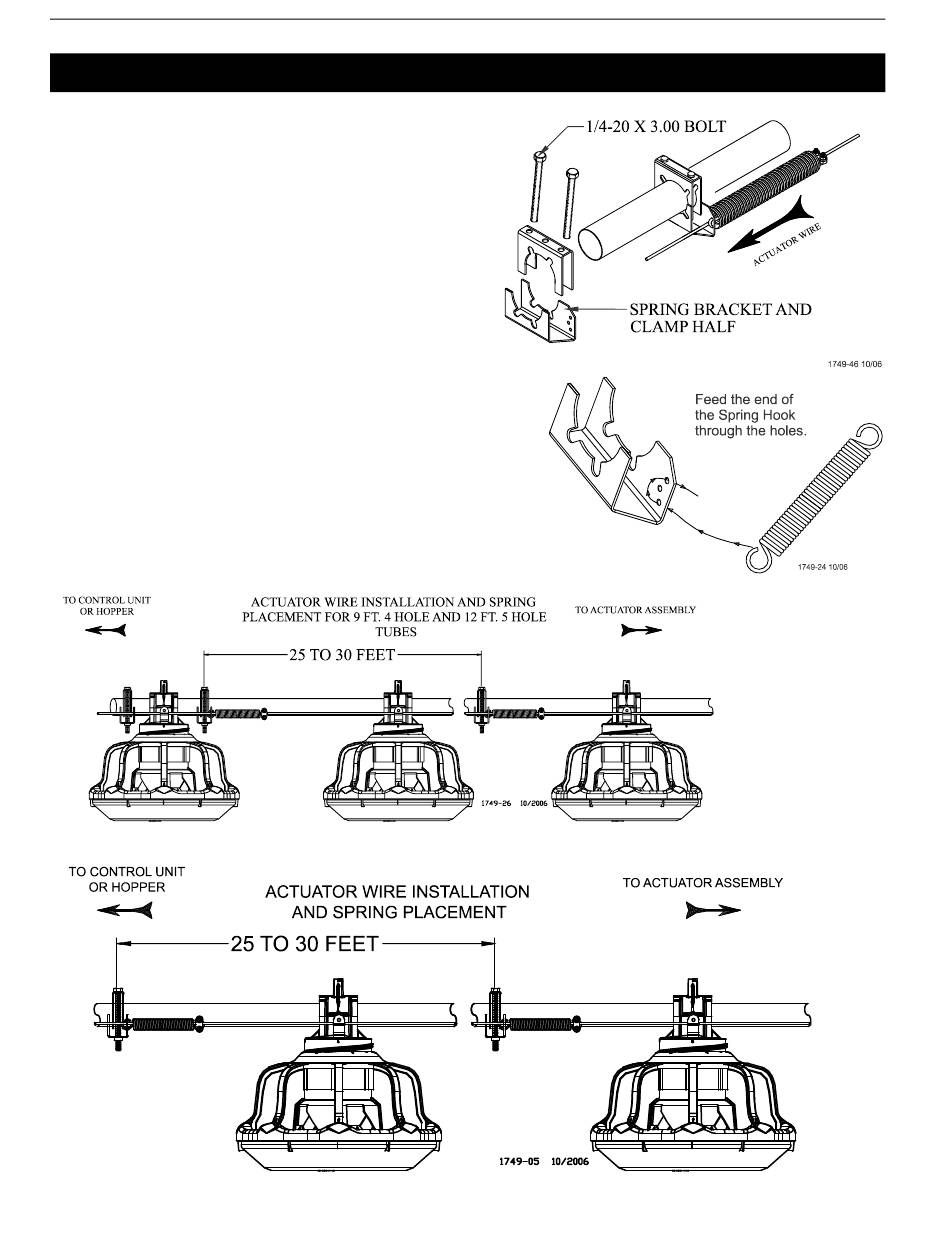

Figure 41. Wire layout for 9 ft. 4 hole and 12 ft. 5 hole
28
Figure 42. Wire layout for 10 ft. 4 hole and 12 ft. 4 hole
REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System
Figure 39. Terminal Spring Bracket
Figure 40. Spring Bracket Assembly
MF1916B
