REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System

Feeder Pan Assembly (Indexing System)

All feeders assemble in the same manor. Refer to Figure 51 and 52. The inner cone must turn freely. Align the
threads on the outside of the adjustment cone and the grill cap. Turn the cone assembly into the grill cap.
Continue turning grill until the pointer lines up with the #2 position. See Figure 51. Turn the grill and cone
assembly over place the feeder pan on the grill, turn the pan clockwise until the lock engages. Assemble the
remaining Feeders. Assembly Box Construction for REVOLUTION 8 Feeders.
Figure 50A
Figure 50D
This information and assembly only applies to REVOLUTION 8 feeder installations.
Chore-Time recommends building an assembly box to aid in assembling the REVOLUTION 8 feeders for pan
assembly procedure option 1(see next page).
To build the assembly box use a 16" [406 mm] x 17" [432 mm] piece of plywood and two 14-1/2" and two 17"
[432 mm] long pieces of 2" [51 mm] x 12" [305 mm].
1.Cut a piece of 3/4" [19 mm] plywood 16" [406 mm] X 17" [432 mm]. See Figure 50A.
2.Center the grill on the 16" [406 mm] X 17" [406mm] piece of plywood. Use a pencil and draw around the in
side edge of the grill as shown in Figure 50B.
Mark a "V" at each strut location.
3.Remove the grill.
Use a 7/8" [22 mm] spade bit to drill a hole at each strut location, as shown in Figure 50C.
4.Use a sabre saw to cut along the inside circle, between the 7/8" [22 mm] holes. See Figure 50D.
5.Use (2) 14-1/2" [368 mm] and (2) 17" [432 mm] 2 [51 mm] x 12's [305 mm] to construct the box sides. Nail
the 3/4" [19 mm] plywood fixture to the box. See Figure 50E.
It is important to use at least 12" [305 mm] sides for the box. Smaller lumber will not allow sufficient depth
for the grill to be placed in the box face down.
Figure 50F shows how the grill should fit down in assembly box. NOTE: Board is cut away for clarity only.
MF1916B
Figure 50B
Figure 50E

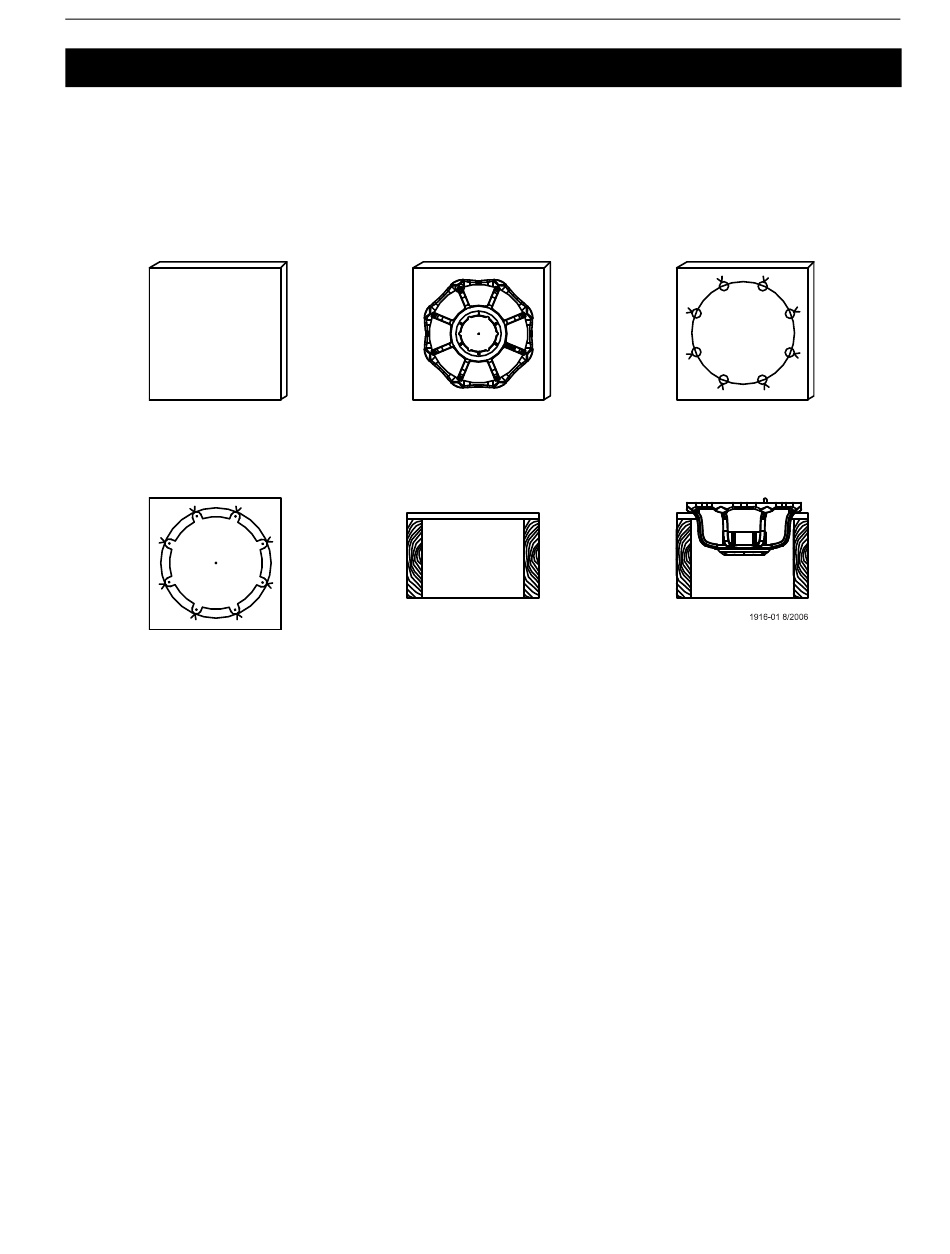

Figure 50. Assembly Box Construction

Feeder Pan Assembly (Indexing System)

Figure 50C
Figure 50F
