Feeder Line Assembly & Suspension (Indexing System)
REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System
Anti-Swing Installation
The anti-swing clamps are designed for breeder and rooster operations to prevent the feeders from swinging on
the auger tubes.
Note: The seam of auger tube and hardware for the Lock must be on opposite sides as shown. Otherwise an
interference will occur.
Install the adjustable clamp around the feeder tube. Slide the locking device into position and secure it in position
with the adjustable clamp.
Make sure the feeder is in the upright position before securing the locking device to the auger tube using the
adjustable clamp.

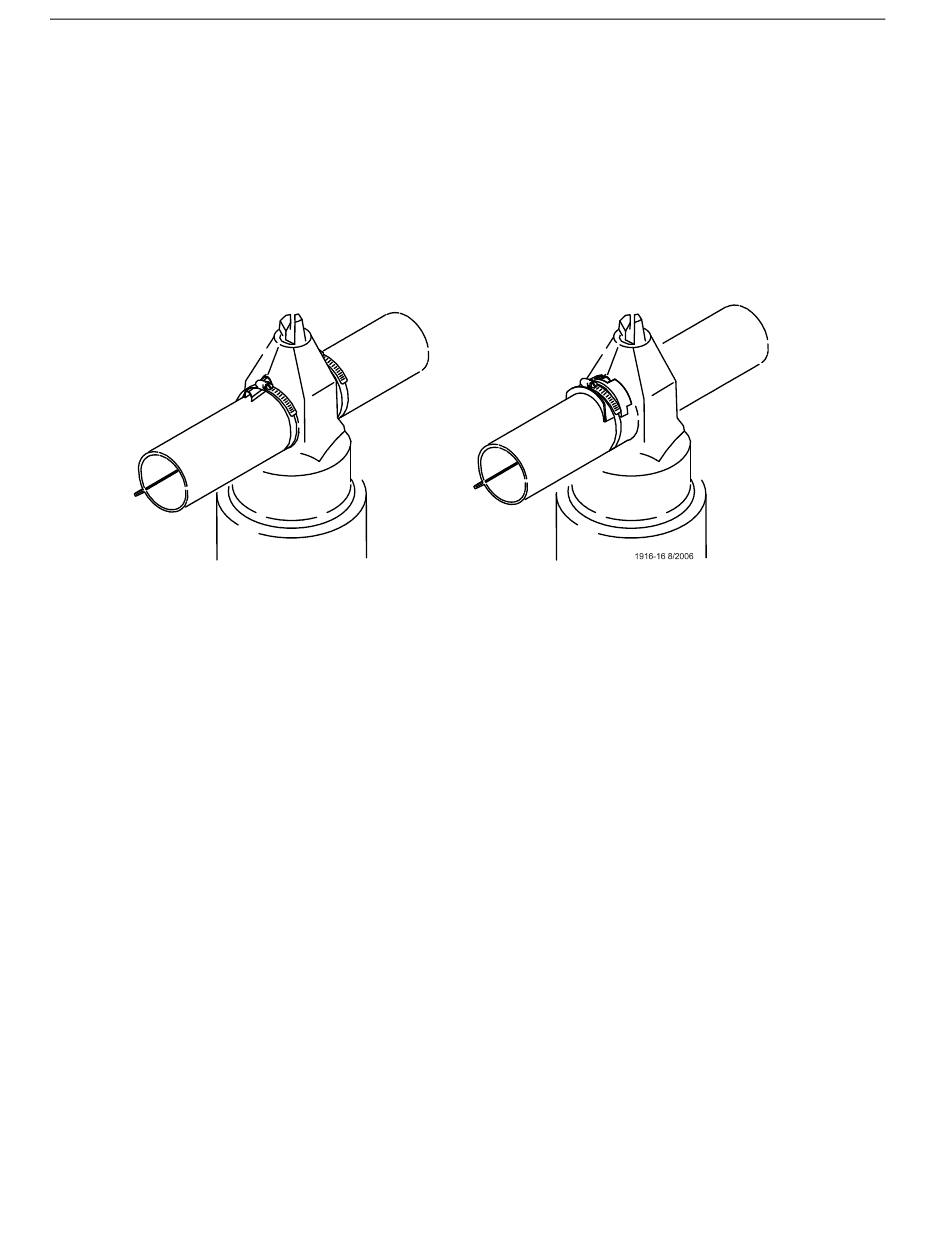

Figure 62. Feeder Anti-Swing Clamp Installation
42
MF1916B
