REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System Feeder Line Assembly and Suspension (Window Cone System)
3.Place a Tube Clamp Assembly or Clamp/
Anti-Roost Bracket at each joint. Figure 34
shows the standard Clamp and Clamp/Anti-
Roost Bracket.
Systems using 9' Auger Tubes require a Clamp/
Anti-Roost Bracket at every f ifth joint.
Systems using 12' tubes require a Clamp/Anti-
Roost Bracket at every fourth joint. All
other joints in the system use the standard
Tube Clamp Assembly.
4.Continue down the feeder line until each tube
joint has a standard Tube Clamp or Clamp/
Anti-Roost Bracket. Do not tighten at this
time.
5.The Adjustable Hanger is used to hang the
feeder line. It is also used to index the feeder
line.
6.Make sure the Adjustable Hanger is facing the
proper direction, as specified in Figure 35.
Setting Example: If the appropriate setting for the
Auger Tube is D5, the "S" Hook should be
installed in the #5 hole in the Hanger. The
Auger Tube Seam should be in the "D"
position, see figure 36.
Program each Auger Tube in the feeder line to
"E5" for total feed drop out.
MF1916B

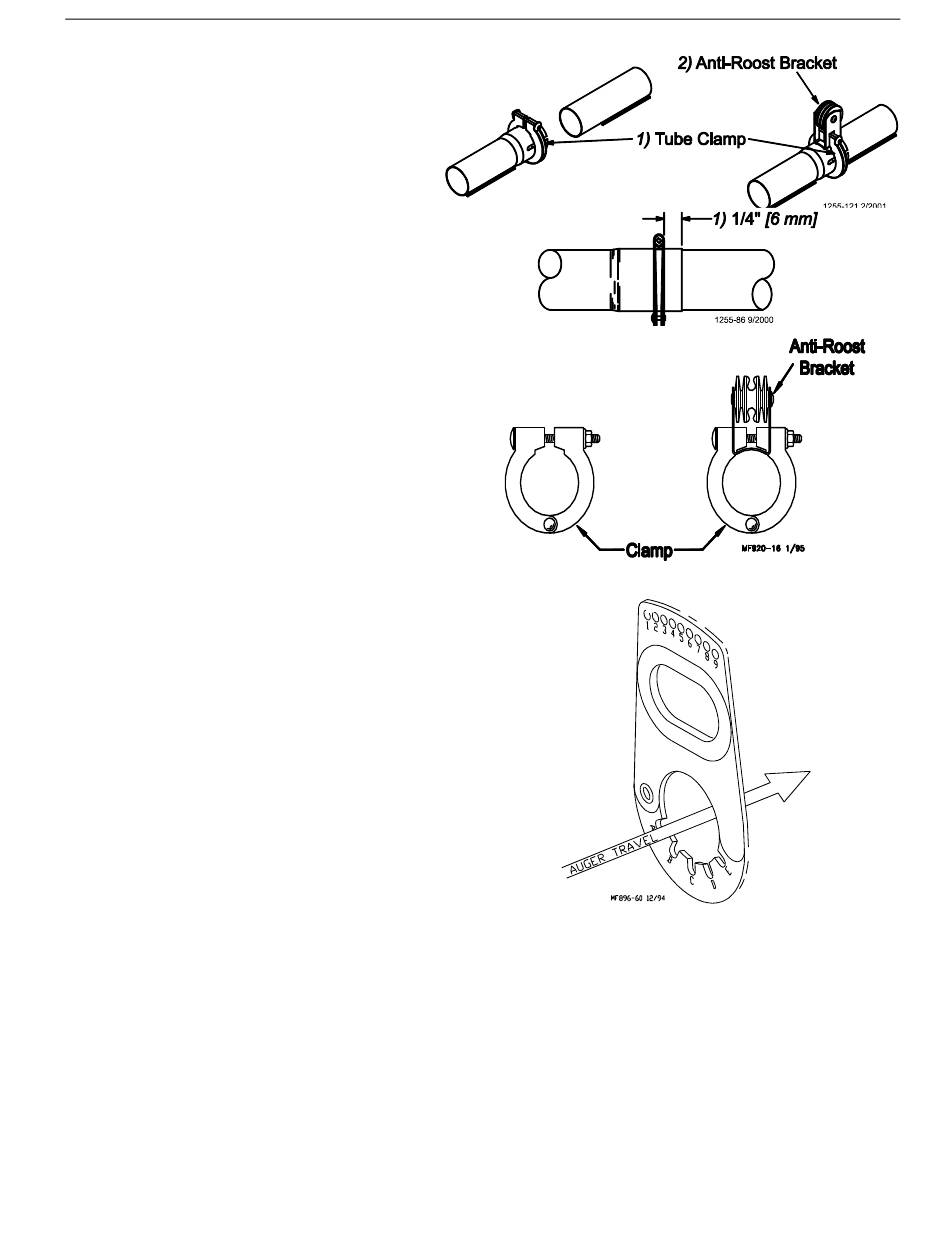

Figure 34.Tube Clamps
Figure 35. Adjustable Hanger Orientation Diagram
