Feeder Pan Assembly (Window Cone System)

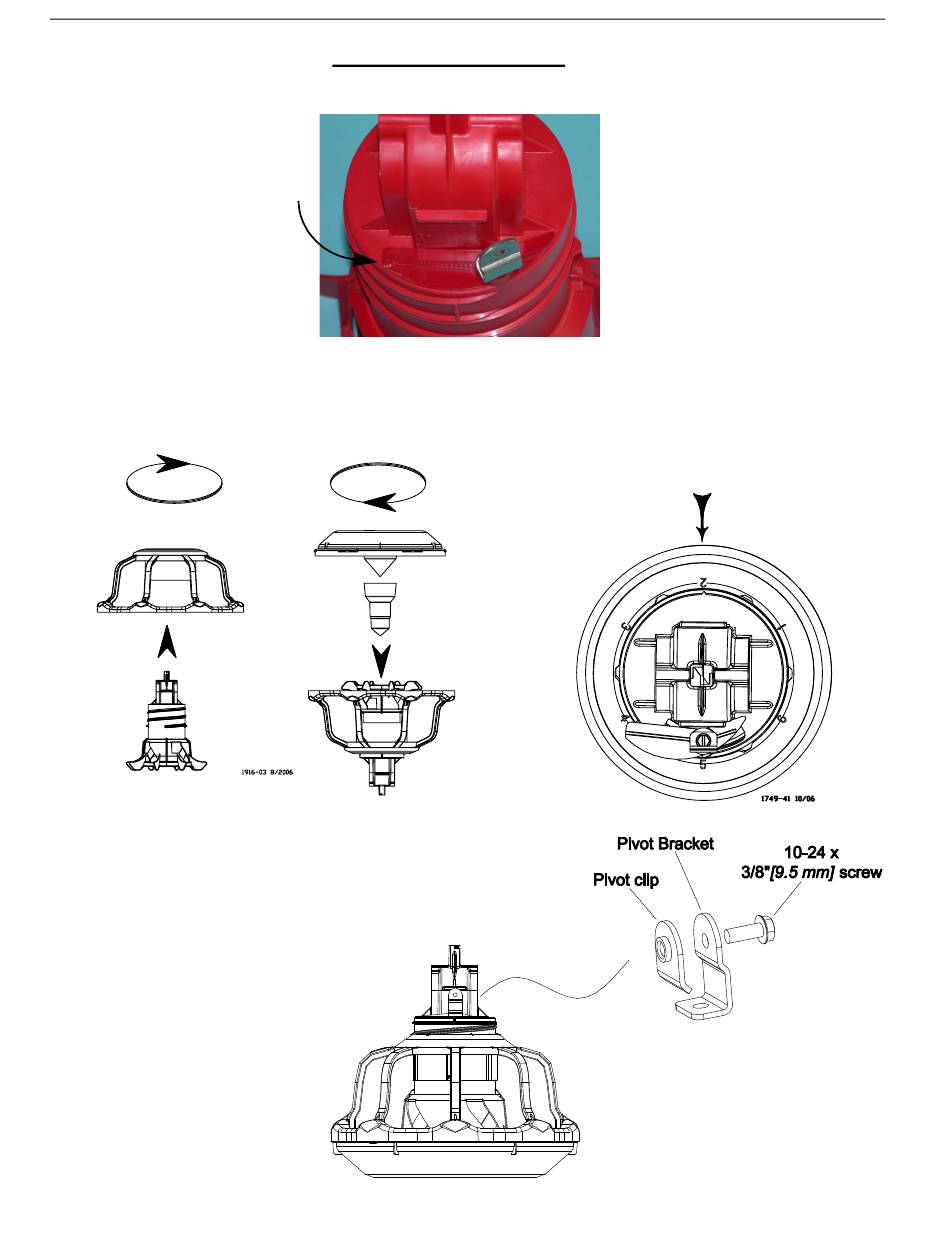

Pan Assembly Procedure for REVOLUTION 8 Feeders (Option 2)
1.Place cone assembly on a flat surface.
2.Rotate brood adjustment until cover washer is flush with outer cone, see figure 24.
Rotate before
installing grill
3.Set grill over the cone.
4.Rotate the grill until the threads are started.
5.Continue rotating the grill until you reach position # 2.
6.Turn the assembly over then install the pan by rotating the
pan until it latches.
Figure 25. Pan assembly option 2

Installing the Pivot Clip.

Loosely assemble the pivot clip to
the pivot bracket using the supplied
10-24 x 3/8" [9.5 mm] screw.
20
Figure 24. Rotate brood adjustment prior to grill installation.
REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System
Figure 26. Installing the pivot clip
Adjust to #2
Setting
