Actuator Installation (Window Cone Systems)
Setting ACCU-CLICK™ Actuator
1.Once all actuators are installed operate
actuators to the fully open brood position, see
figure .
- To set actuator in the fully open brood position
turn the actuator handle counterclockwise
until the actuator stops.
2.Using the first pan away from the actuator,
push the inner cone to the open position. Place the actuator wire between the pivot bracket and pivot clip then
tighten the 10-24 screw, see figure 47.
3.After the 10-24 screw has been tightened operate the actuator open and closed to check operation.
4.
5.With the actuator in the open position and the
brood gate open tighten the 10-24 screw for each
pan.
6.With the brood in the open position. Go to the
control unit or hopper end to trim the extra actuator
wire. Leave 3 inches [7.6 cm] of excess wire past
the spring bracket, see figure 48.
7.Repeat for all remaining actuators.
"End Control and Boot Assembly Installation" on page 43.
32
REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System

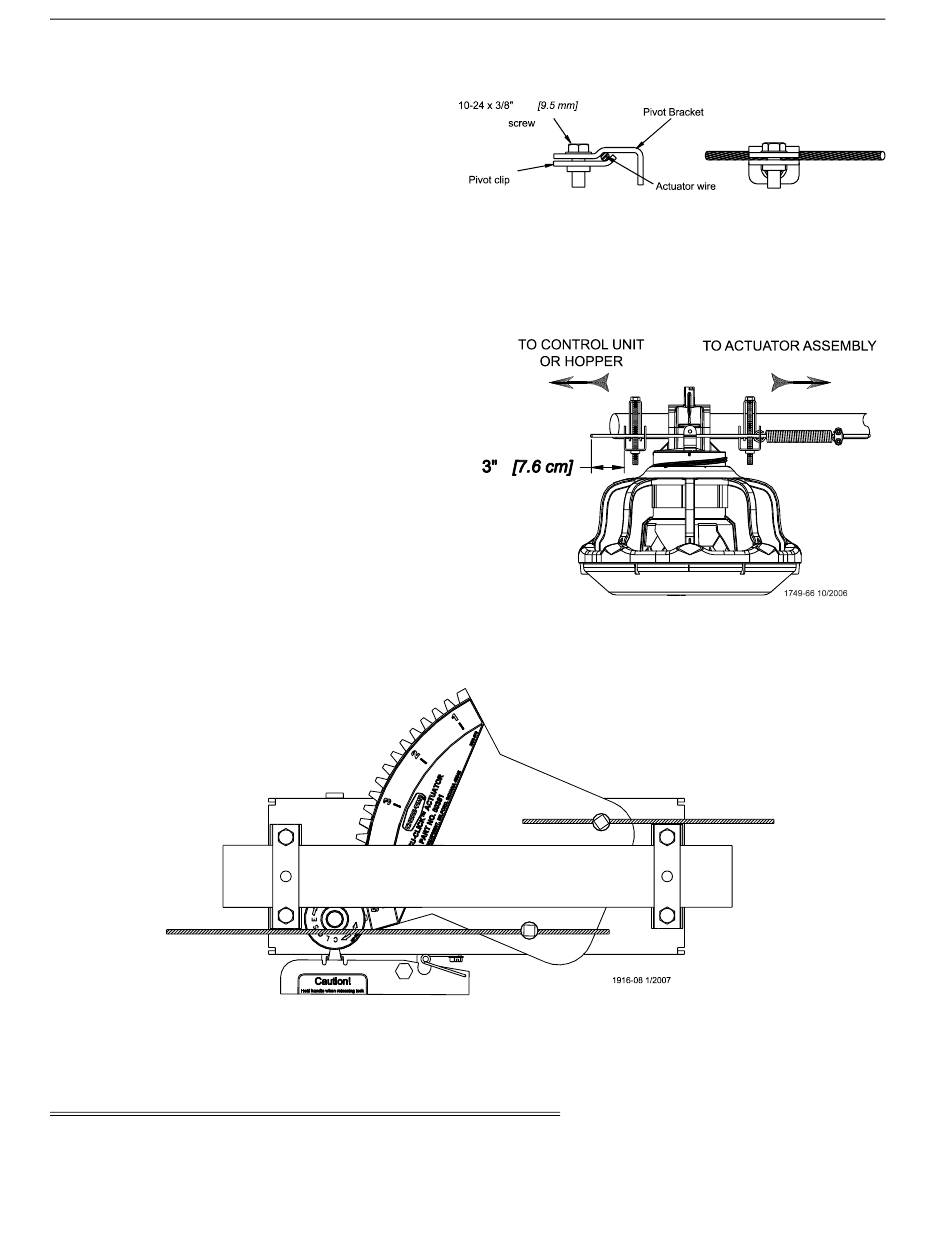

Figure 47. Clamping to actuator wire
Figure 48. Trim excess actuator wire at control/hopper
Figure 49. Actuator in Fully Open Brood Position
