REVOLUTION® 8 Rooster Feeder Variable Brood Feeding System
9.At the control unit, after clamping the cable to the spring, cut the cable about 8" to 10" [200 to 250 mm]
longer than necessary. Feed the end of the cable through the center of the spring, around the first insulator on
the control unit, and clamp the cable using the cable clamp supplied with the control unit. See Figure 77.
10.Install the wire form on the control unit insulators. Be sure the guard snaps into the retainers molded into the
insulators. See Figure 77.
Wire Form
11.Install the Poultry Trainer or Line Charger, as shown in Figure or 12.
The Poultry Trainer is used to power all Anti-Roost lines in a house. See Figure .
The Line Charger is used to power individual Anti-Roost lines in a house. See Figure 12.
Route the charger wire from the Poultry Trainer or Line Charger to the Anti-Roost system. Secure the Charger
Wire to the Anti-Roost cable, using a cable clamp.
Insulated Charger Wire
MF1916B
Clamp with Anti-Roost
Insulator Bracket and Insulator

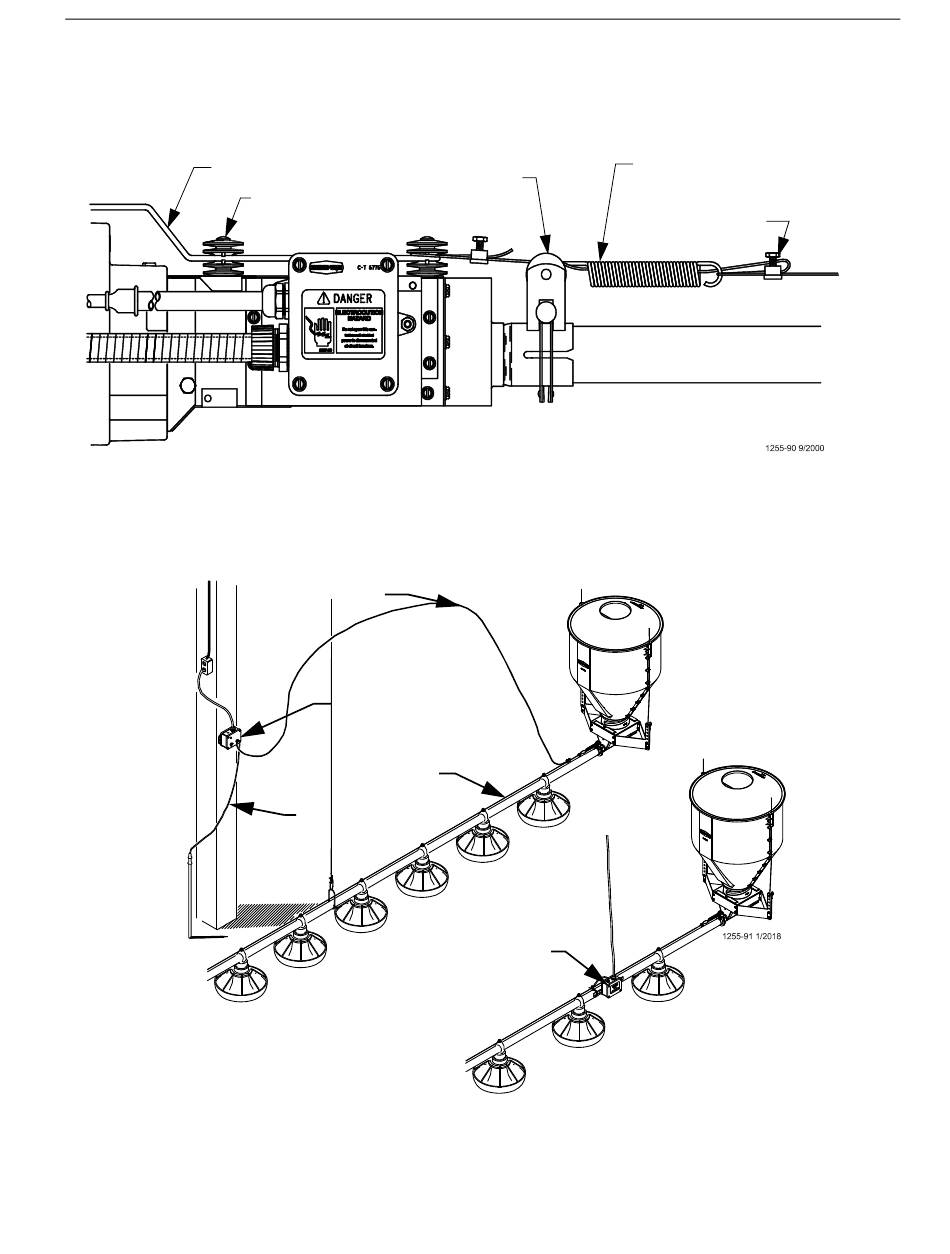

Figure 76. Anti-Roost Installation at the Control Unit
Secure Poultry Trainer to
the Wall or Post
Anti-roost Wire
Ground Wire
Line Charger/Poultry
Figure 78. Poultry Trainer Installation
Figure 77.
Trainer
Anti-Roost Installation
Spring Should be stretched
3/4" to 1" [19mm to 25mm]
Clamp
