REVOLUTION® 8 & 12 Feeder Variable Brood Feeding System
Setting ACCU-CLICK™ Actuator
1.Once all actuators are installed
operate actuators to the fully
open brood position, see figure
61.
2.To set actuator in the fully open
brood position turn the actuator
handle counterclockwise until
the actuator stops.
3.Using the first pan away from
the actuator, push the inner
cone to the open position. Place
the actuator wire between the pivot bracket and pivot clip then tighten the 10-24 screw, see figure 59.
4.After the 10-24 screw has been tightened operate the actuator open and closed to check operation.
5.With the actuator in the open position and the brood
gate open tighten the 10-24 screw for each pan. With
the brood in the open position. Go to the control unit
or hopper end to trim the extra actuator wire. Leave 3
inches [7.6 cm] of excess wire past the spring bracket,
see figure 60.
6.Repeat for all remaining actuators.
MF2441D

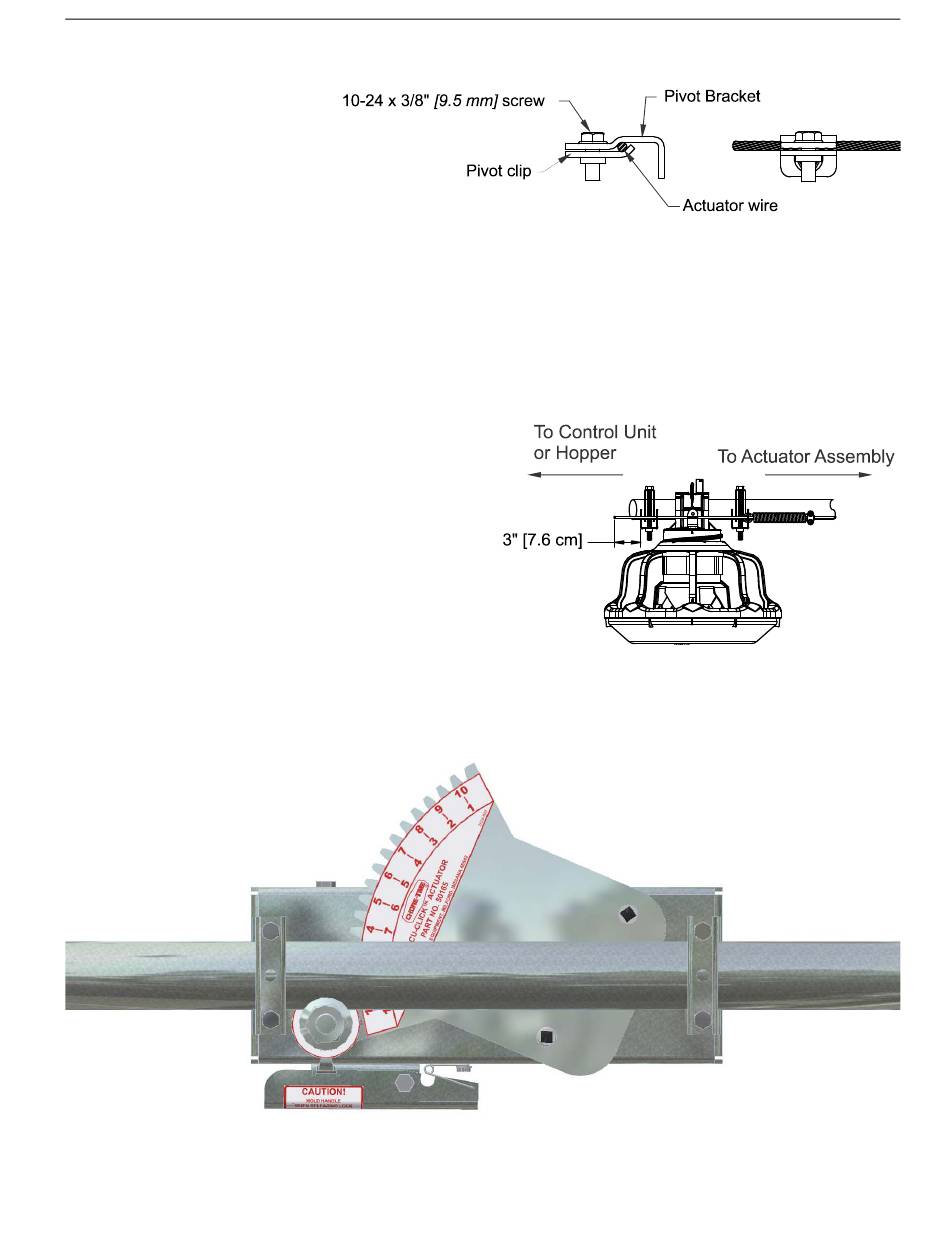

Figure 61. Actuator in Fully Open Brood Position
Figure 59. Clamping to actuator wire
Figure 60. Trim excess actuator wire at control/hopper
Actuator Installation
1920-09 09/14
35
