REVOLUTION® 8 & 12 Feeder Variable Brood Feeding System

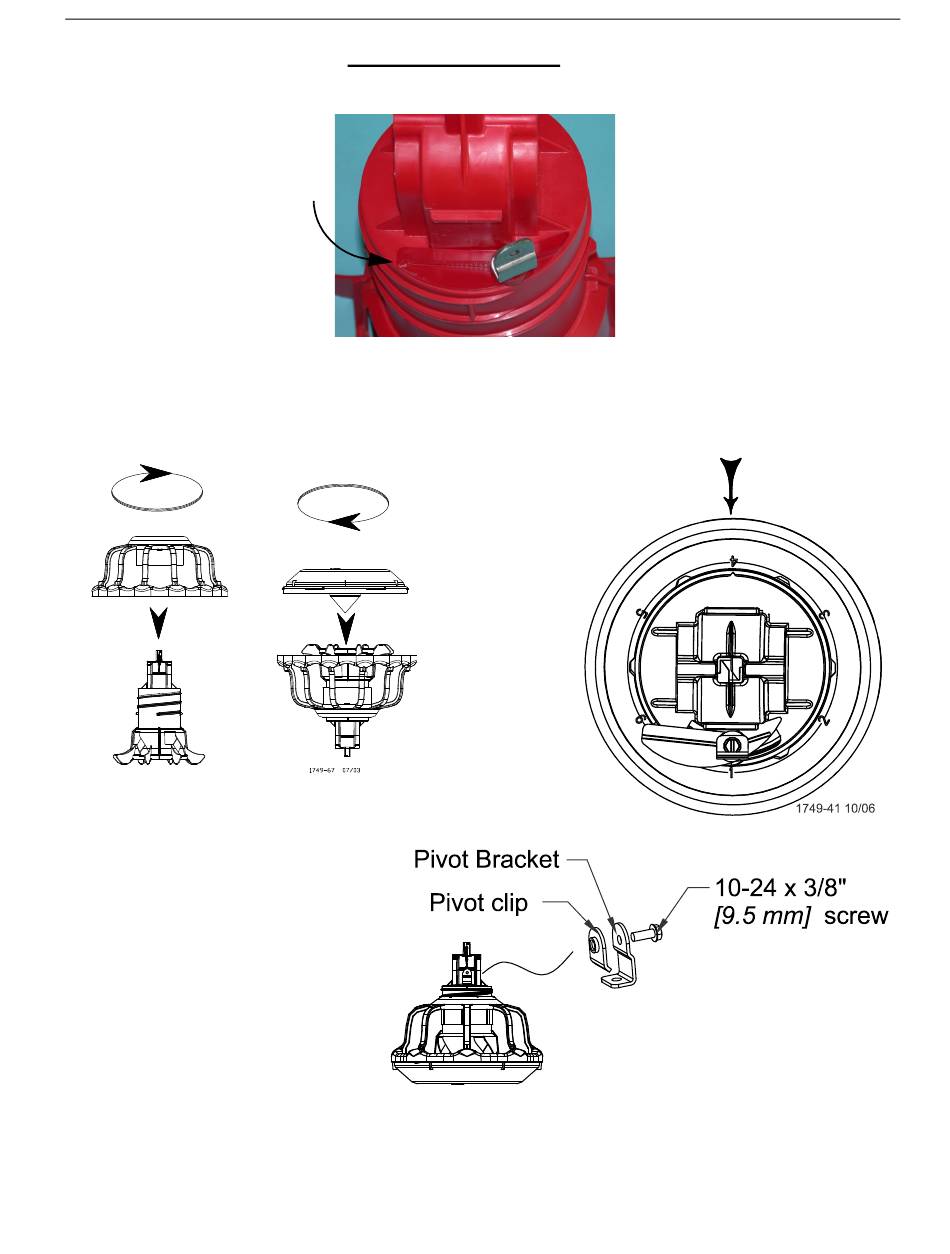

Pan Assembly Procedure for Rev. 12 and 8 Feeders (Option 2)
1.Place cone assembly on a flat surface.
2.Rotate brood adjustment until cover washer is flush with outer cone, see figure 24.
Rotate before
installing grill
3.Set grill over the cone.
4.Rotate the grill until the threads are started.
5.Continue rotating the grill until you reach position 4.
6.Turn the assembly over then install the pan by
rotating the pan until it latches.
Figure 25. Pan assembly option 2
Installing the Pivot Clip.
Loosely assemble the pivot clip to the
pivot bracket using the supplied 10-24 x
3/8" [9.5 mm] screw.
MF2441D
Figure 24. Rotate brood adjustment prior to grill installation.
Adjust to #4 setting
Figure 26. Installing the pivot clip
Feeder Pan Assembly
19
