2.3 Feed-throughs for capillaries and cables

2.3 Feed-throughs for capillaries and cables
1
Luer connector
For connecting a capillary from inside and
for inserting a syringe (6.2816.020) from
outside. For manual sample injection.
￭￭￭￭￭￭￭￭
10
Multiple openings are available for leading capillaries into the instrument
and for leading capillaries and cables out of the instrument:
Openings on the door
￭
Openings on the back panel
￭
Ducts between the instrument and the base tray as well as between
￭
the instrument and the bottle holder (see Figure 5, page 12)
Openings on the door

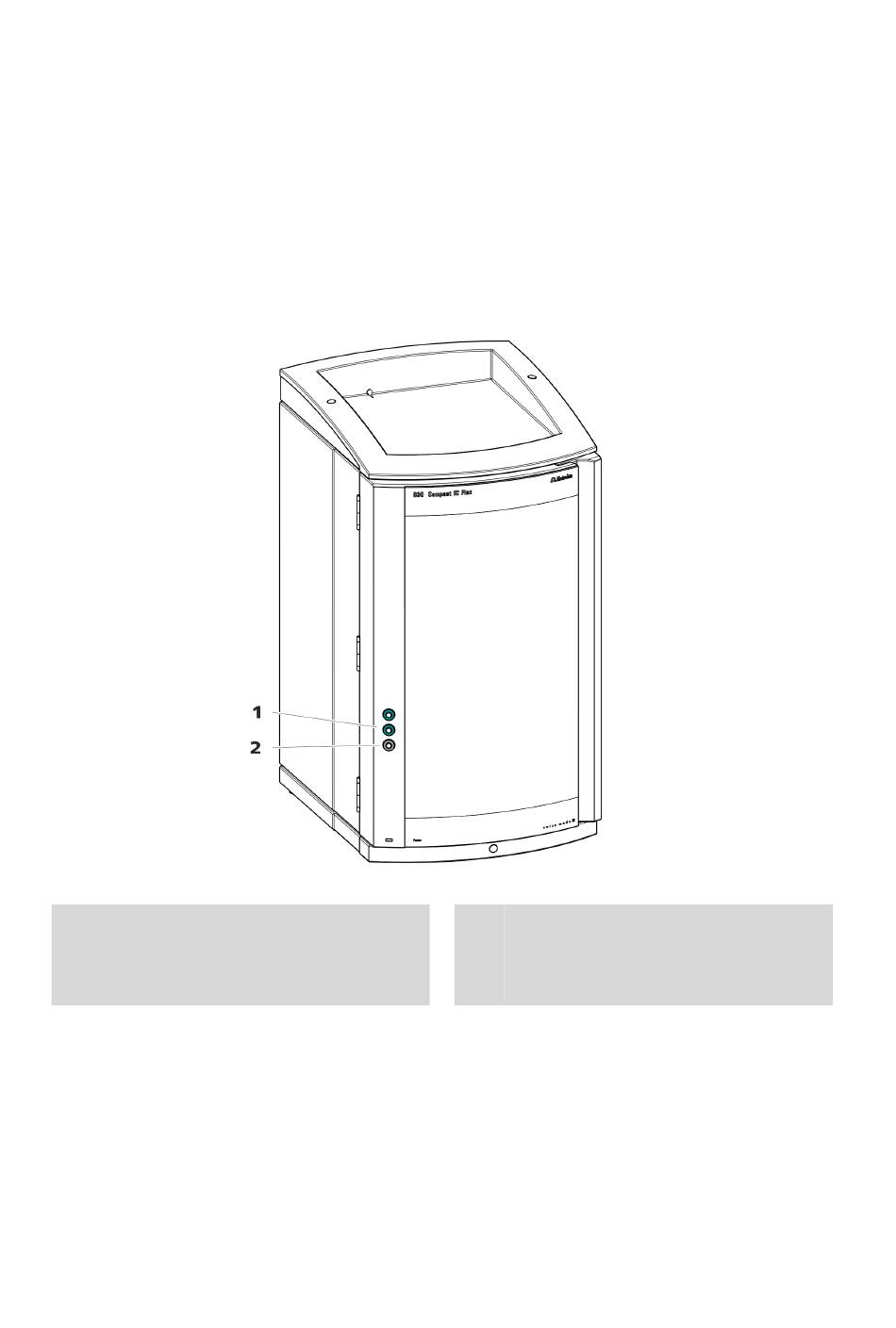

Figure 3 Feed-throughs on the door
An opening for up to 3 capillaries is located on the door of the instru-
ment.
The two Luer connections above are not actually openings; the capillaries
are fastened to the Luer connection from within using PEEK pressure
screws. You can use a syringe to inject or draw out liquid from the out-
side.
2
Opening for capillaries
For up to 3 capillaries.
930 Compact IC Flex Oven/ChS (2.930.2200)
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
