2.2 Rear

2.2 Rear
In
1

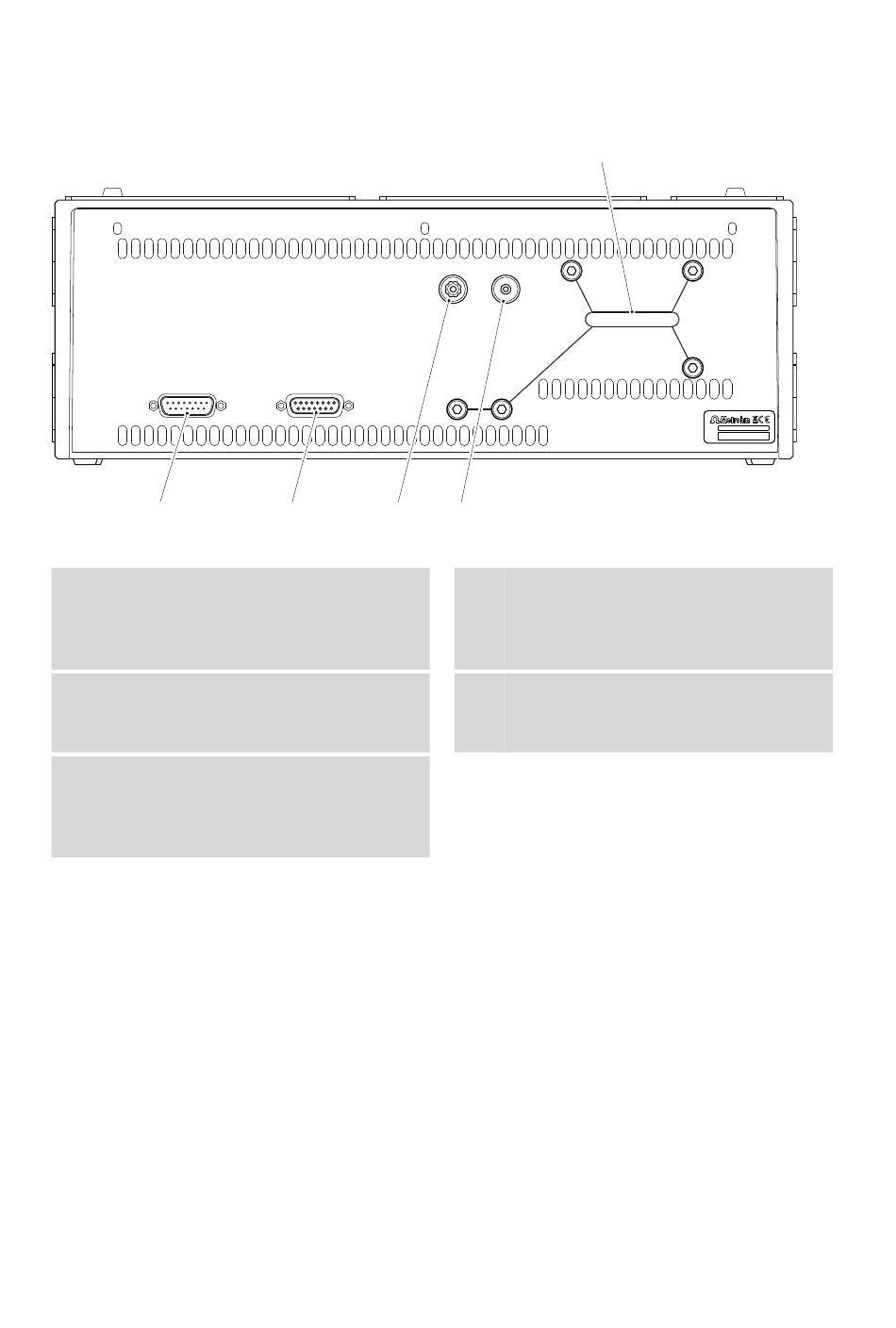

Figure 2 Rear
1 "In" connection
For connecting the Extension Module to the
IC instrument or to a previous Extension
Module.
3 "Vacuum" connection
For connecting additional degassing cham-
bers in extension modules.
5 Transport locking screws
For securing the high-pressure pump and
the vacuum pump when transporting the
instrument.
8
￭￭￭￭￭￭￭￭
Vacuum
Out
3 4
2
5
Exhaust
Transport locking screws
Made by Metrohm Herisau Switzerland
2 "Out" connection
For connecting an additional Extension
Module.
4 Exhaust opening
For extracting the air from the vacuum
chamber. Labeled Exhaust.
942 Extension Module Vario ONE/Deg (2.942.1060)
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
