12. Regeneration Cycle Step Times

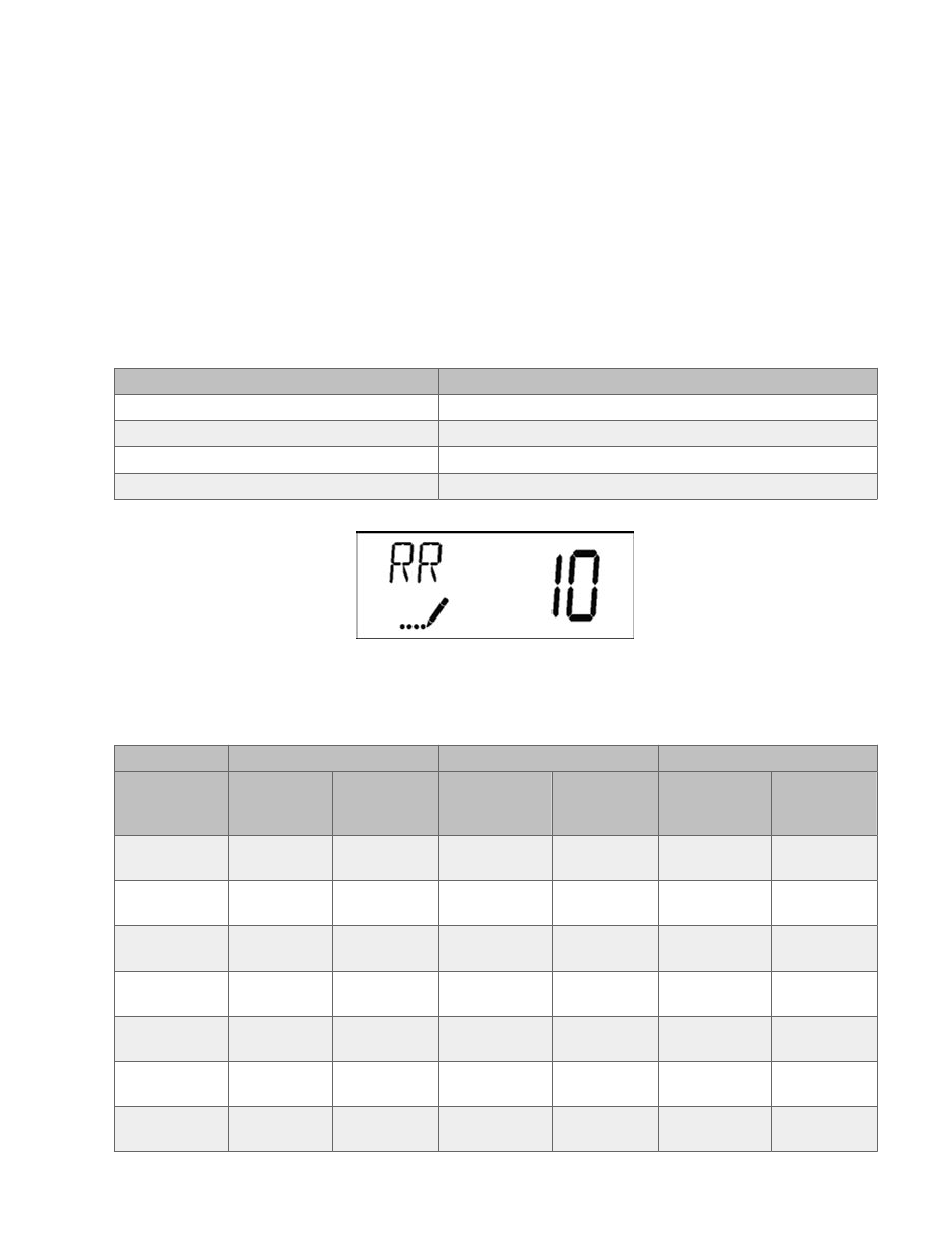

Press the Extra Cycle button. Use this display to set the Regeneration Cycle Step
Times. The different regeneration cycles are listed in sequence based on the valve
type selected for the system and are identified by an abbreviation in the upper left
hand corner of the screen. The abbreviations used are listed below. If the system
has been configured with the "OTHER" valve type, the regeneration cycles will be
identified as R1, R2, R3, R4, R5, and R6. Each cycle step time can be set from 0
to 199 minutes. Setting a cycle step time to 0 will cause the control to skip that step
during regeneration but keeps the following steps available. Use the Up and Down
buttons to adjust the value as needed. Press the Extra Cycle button to accept the
current setting and move to the next parameter.
Abbreviation
Range: 0 - 199 Minutes
This setting is determined by the chart used for the capacity setting. Input the num-
ber of minutes that corresponds to the capacity setting that was chose previously.
System Capacity
Size
26,000
Grain
35,000
Grain
53,000
Grain
70,000
Grain
88,000
Grain
105,000
Grain
140,000
Grain
Need help? 1.800.390.5936
BW
BD
RR
BF
Low Salt Settings
Brine
Setting Fill
(mins.)
15,000 4
20,000 4
30,000 6
40,000 8
50,000 10
60,000 12
80,000 16
Cycle Step
Backwash 10 Mins
Brine Draw 60 Mins
Rapid Rinse 10 Mins
Brine Fill (see chart)
Medium Salt Settings
Capacity Brine Fill
Setting (mins.)
18,000 6
25,000 8
37,000 10
50,000 16
63,000 18
75,000 20
100,000 28
37 www.uswatersystems.com
High Salt Settings
Capacity Brine
Setting Fill
(mins.)
24,000 8
30,000 10
45,000 14
60,000 20
75,000 25
90,000 30
120,000 40
