US Water Systems 300-H-4510-BG-222-KIT Owner's Manual

High flow single, dual and triple 10" filtration system
Hide thumbs

Advertisement

Quick Links

Download this manual
Visit us online at
www.uswatersystems.com

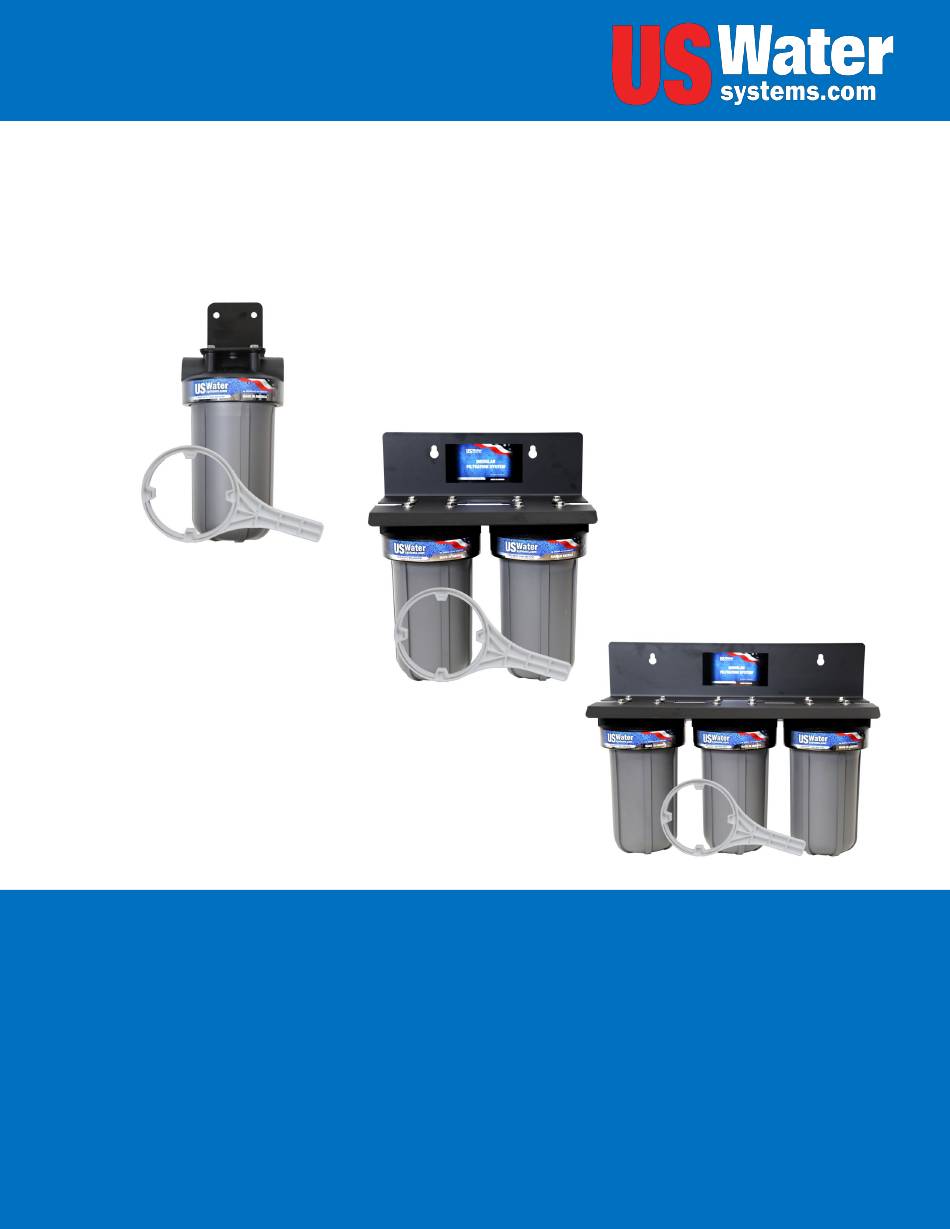

US Water Systems High Flow Single,
Dual and Triple 10" Filtration System
Owners Manual
300-H-4510-BG-222-KIT , 320-BGF2-10-NF, 320-BGF3-10-NF
REVISION #
1.0
REVISION DATE
April 25, 2019
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
1-800-608-8792
info@uswatersystems.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 300-H-4510-BG-222-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for US Water Systems 300-H-4510-BG-222-KIT

Summary of Contents for US Water Systems 300-H-4510-BG-222-KIT

  • Page 1 Visit us online at www.uswatersystems.com US Water Systems High Flow Single, Dual and Triple 10” Filtration System Owners Manual 300-H-4510-BG-222-KIT , 320-BGF2-10-NF, 320-BGF3-10-NF US Water Systems Corporate Office 1209 Country Club Road Indianapolis, IN 46234 1-800-608-8792 REVISION # info@uswatersystems.com REVISION DATE...

  • Page 2: Unpacking Inspection

    Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 to report any shipping damage within 24 hours of de- livery. Claims made after 24 hours may not be honored.

  • Page 3: System Dimensions

    System Dimensions...
  • Page 4 System Dimensions...
  • Page 5 System Dimensions...
  • Page 6 Full 3/4” Flow – All 10 inch housings are 3/4” connection. Flows up to 25 GPM. • Posi-Seal™ - Most cartridges use a “double open end” design (DOE). US Water Systems • Housings use a cartridge with a Posi-Seal Design that provides 100% filtration and will not bypass the filter.
  • Page 7 Single and Dual Filter Specifications and Operation US Water Systems 4.5 x 10 Dual High Flow Filter System | No Cartridges The one thing most filter housings have in common is that that are made in the Far East (usually China). Even the industry standard for “Big Blue” housings, Pentek are no longer made in the USA.
  • Page 8 3/4” Flow – All 10 inch housings are 3/4” flow. Flows up to 15 GPM. • Posi-Seal™ - Most cartridges use a “double open end” design (DOE). US Water Systems Hous- ings use a cartridge with a Posi-Seal Design that provides 100% filtration and will not bypass the filter.
  • Page 9 Filter Installation Instructions 1. Install the Single and Dual system in the desired location in the water treatment system. The caps are marked “IN” and “OUT” on the top of the housings. 2. Mount the housing to the bracket using the supplied screws, orienting the housing to match the application’s desired flow direction.
  • Page 10 Filter Installation Instructions 3. Mount the filter to the wall using the necessary fasteners for the wall type. Mark the hole locations on the wall using a marker or pencil while holding the filter housing level. If this is to be mounted to a studded wall, a mounting board can be used. A shelf board or plywood can be mounted to the studs, then the filter housing can be screwed to the plywood or shelf board.
  • Page 11 Filter Installation Instructions 5. Shut off the water and release the water pressure at the lowest sink or spigot. Cut the pipe and connect it to the filter using the necessary fittings or tubing. Connect the inlet plumbing to the inlet on the filter housing . Tighten with channel locks. 6.
  • Page 12 Filter Installation Instructions 1. Remove the sump from the filter housing and install the filter. A very small amount of sili- cone grease or water can be used to lubricate the O-rings on the filter. The filter housing cap has a coupling that will accept the o-ringed nipple on top of the filter. Install the filter so the nipple on the top is fully seated in the filter housing cap.
  • Page 13 Filter Startup Instructions 1. Open a faucet or spigot down stream of the filter. Slowly open the water shutoff valve and let the filter system fill with water. Air will be pushed out of the filter through the open spigot or faucet downstream.
  • Page 14 Filter Cartridge Replacement Instructions 1. Shutoff the water supply. 2. Open a faucet of spigot closest to the filter housing and allow all the water to empty from the plumbing system. WARNING! If the pressure is not released, the filter sump will be very difficult to get loose.
  • Page 15 Filter Cartridge Replacement Instructions 4. Remove the old filter and discard. 5. Lubricate the O-rings and install the new filter in the filter housing cap. 6. Lubricate the O-ring for the sump and lubricate the sump threads with food grade silicone grease.
  • Page 16 Filter Cartridge Replacement Instructions 7. Install the filter sumps in the filter cap by turning it clockwise until it is hand tight. NOTE: The housing should spin tight fairly easily. If not, add more lubrication to the sump threads. This will aid with removing the sump when the filter needs to be replaced again.

  • Page 17: Warranty

    For the lifetime of the original purchaser, at the original residential place of installation of this Water Conditioning This warranty does not apply to any commercial or System, US WATER SYSTEMS, INC. warrants the industrial installations or to any part of the water following: conditioner which has been subjected to misuse, neglect, alteration or accident;...

This manual is also suitable for:

320-bgf2-10-nf320-bgf3-10-nf
