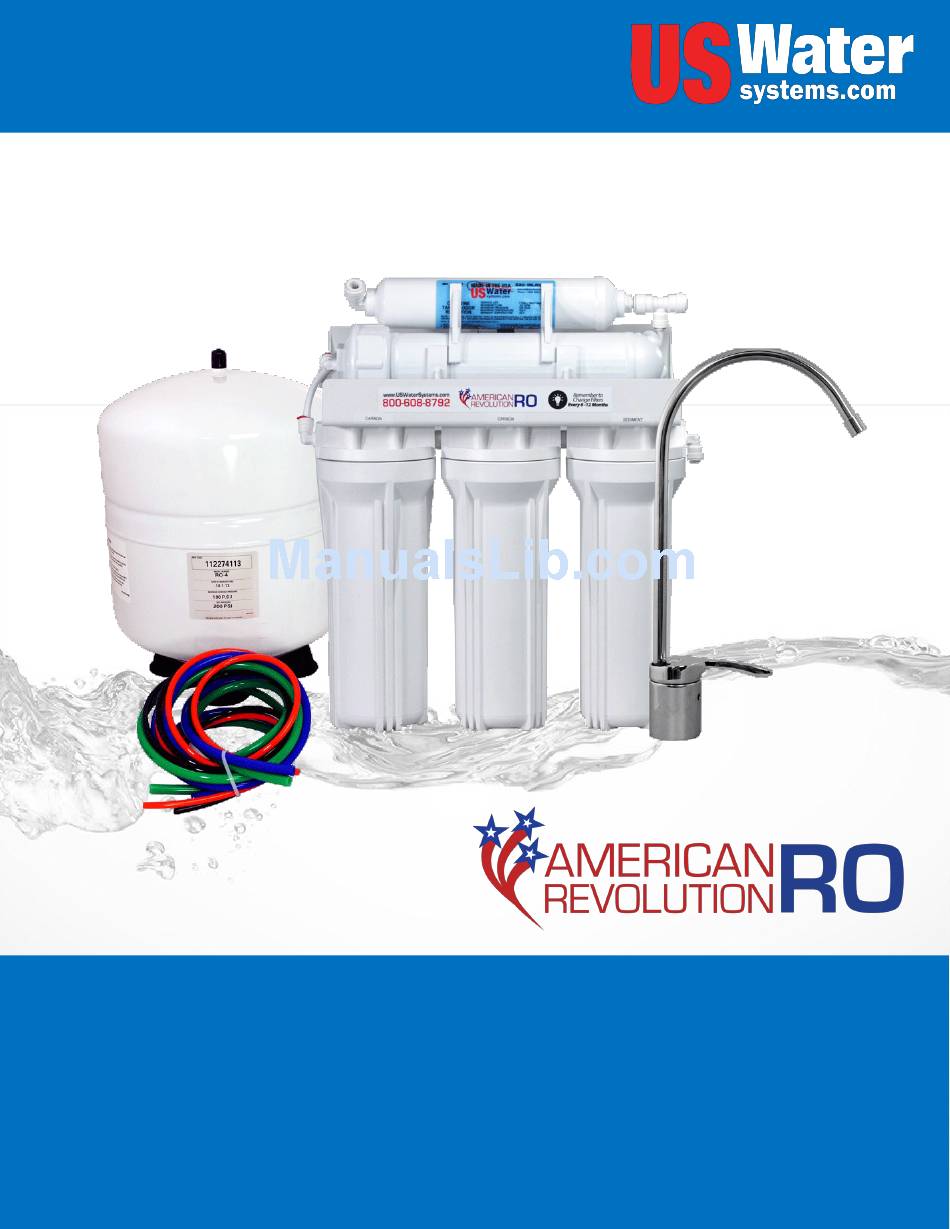

American Revolution 5-Stage RO System
The only RO System on the market that is totally American-Made!
Owners Manual
Models:
200-USRO, 200-USRO-P
REVISION #
1.2
REVISION DATE
March 5, 2015
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200-USRO and is the answer not in the manual?

Questions and answers

Gregg
April 17, 2025

So my tank is empty and water still flows from faucet what have i done wrong it is an old system.

1 comments:
Mr. Anderson
May 9, 2025

Water can flow from the faucet when the tank is empty in a US Water Systems 200-USRO system if the system is running and feed water is flowing directly through the membrane and filters to the faucet. This is part of normal system operation during flushing or startup when the tank valve is closed and the faucet is open, allowing water to bypass the tank and flow directly to the drain and faucet.

This answer is automatically generated

Summary of Contents for US Water Systems 200-USRO

  • Page 1 American Revolution 5-Stage RO System The only RO System on the market that is totally American-Made! Owners Manual Models: 200-USRO, 200-USRO-P US Water Systems Corporate Office 1209 Country Club Road REVISION # Indianapolis, IN 46234 REVISION DATE March 5, 2015...
  • Page 2 MEMBRANE POST CARBON PRE SEDIMENT PRE CARBON TUBING FAUCET AND MOUNTING KIT FILTER WRENCH DRAIN SADDLE TANK VALVE FEED WATER ANGLE STOP FAUCET CONNECTOR...
  • Page 3: Reverse Osmosis Membrane

    Installation Instructions Residential Reverse Osmosis Drinking Water System Parts Check List FEED WATER ANGLE STOP VALVE is connected to  the cold water line to supply water to the R/O system. RO Module  Tubing Bundle  WASTE WATER SADDLE VALVE Filter Wrench is connected to the ...
  • Page 4: Installation Steps

    Installation Instructions Residential Reverse Osmosis Drinking Water System sure air pressure is approximately 7 PSI. Adjust if STORAGE TANK may be placed where it is convenient, necessary. This is typically factory set but it is a good within ten feet of the RO module. Under the sink or in a idea to check it.
  • Page 5: Mounting The Faucet

    Installation Instructions Residential Reverse Osmosis Drinking Water System B. Mounting the faucet 4. Install the brass washer on the threaded rod. 1. Install the faucet as shown in Fig. 1 on the previous page. Assistance may be needed to hold the faucet in place while the nut is tightened.
  • Page 6 Installation Instructions Residential Reverse Osmosis Drinking Water System 9. Now push the blue tube into the faucet connector. Leave the other end of the blue tube unconnected for now, it will be connected later in the installation. 8. Once the faucet is secure, install the 7/16” UNS x 3/8” QC faucet connector on the threaded nipple.
  • Page 7 Installation Instructions Residential Reverse Osmosis Drinking Water System C. Feed Water Angle Stop Valve and Tubing Installation 3. Install the tee on the sink faucet shutoff valve and tighten it . 1. To install the angle stop valve, turn off the cold water supply valve for the sink faucet.
  • Page 8 Installation Instructions Residential Reverse Osmosis Drinking Water System 4. Now install the whip hose or tubing on the angle stop valve and tighten. 7. Be sure the dark gray handle on the angle stop valve is in the closed position. Now open the sink shutoff valve and 5.
  • Page 9 Installation Instructions Residential Reverse Osmosis Drinking Water System D. Drain Saddle Installation Prior to drain saddle installation it is important to inspect the condition of drain pipes to make sure they are not thin and frail. Drain saddle valves are designed to be installed on standard 1 -1/2”...
  • Page 10 Installation Instructions Residential Reverse Osmosis Drinking Water System 5. Position both halves of the drain saddle on the drain pipe 6. Secure the drain saddle clamp on valve with bolts and so both holes are aligned. A screwdriver or drill bit may be nuts provided.
  • Page 11 Installation Instructions Residential Reverse Osmosis Drinking Water System E. Tank Installation F. Initial tubing connections 1. Apply Teflon tape to the Tank outlet threads. About 3-4 It may be desirable to leave the access tubing when making wraps will be sufficient. the final connections.
  • Page 12 Installation Instructions Residential Reverse Osmosis Drinking Water System 4. Remove the center sump and install the carbon filter 6. Remove the far left sump and install the carbon filter in the sump. BE SURE that the rubber gasket is in in the sump.
  • Page 13 Installation Instructions Residential Reverse Osmosis Drinking Water System Membrane Installation 3. Remove membrane from protective packaging and install it in the membrane housing. 1. Remove the 1/4” tubing from the membrane housing cap There are two O-rings on end of the middle by pressing the collet on the elbow fitting toward the fitting.
  • Page 14: Final Tubing Connections

    Installation Instructions Residential Reverse Osmosis Drinking Water System H. RO unit installation 5. Lubricate the O-ring on the membrane housing and install the cap hand tight. Tighten the cap an additional 1/8 - 1/4 The RO unit is normally mounted to the sink cabinet sidewall, turn.
  • Page 15 Installation Instructions Residential Reverse Osmosis Drinking Water System 2. BE SURE the storage tank shutoff valve is in the closed Permeate Pump Installation position. Use the supplied syringe and add 5ml of the If the system is equipped with a permeate pump, clip the pump supplied sanitizing solution to the Green tank tubing to the membrane housing using the supplied mounting bracket attached to the storage tank.
  • Page 16: System Start-Up

    Installation Instructions Residential Reverse Osmosis Drinking Water System Icemaker hookup (optional) The RO drinking water device can be connected to any NOTE: When the system is first turned on, water may standard refrigerator ice maker or ice maker/water dispenser. intermittently “spurt” from the air gap opening on the side of air 3/8”...
  • Page 17: Maintenance

    Installation Instructions Residential Reverse Osmosis Drinking Water System Maintenance the wrench, turn an additional ¼ turn, but do not over tighten. The RO system contains filters and membranes which must 7. The carbon block filter(s) are installed into the next be replaced periodically for proper operation.
  • Page 18 Installation Instructions Residential Reverse Osmosis Drinking Water System Why the regular use of Sani-System is important. Flushing system and checking operation To make sure RO system is operating correctly, follow these A reverse osmosis system should be sanitized regularly to simple procedures: maintain quality service levels.
  • Page 19: Water Production

    Installation Instructions Residential Reverse Osmosis Drinking Water System Water quality Water quality from an RO system is normally determined with Reject Rate Reject Ratio = a TDS Meter, which measures total dissolved solids in water, Product Rate measuring conductivity. The results are normally measured in PERCENT RECOVERY parts per million or milligrams per liter.
  • Page 20: Quick Connect Fittings

    Installation Instructions Residential Reverse Osmosis Drinking Water System Disconnecting Quick connect fittings Push in Collet and remove tube Many RO systems utilize Quick Connect fittings. These user- friendly fittings provide superior performance and may be provided with this system. Proper use of these push-in fittings is shown below.
  • Page 21 Installation Instructions Residential Reverse Osmosis Drinking Water System TO TANK (Green Tube) Page 21...
  • Page 22 Installation Instructions Residential Reverse Osmosis Drinking Water System Ice Maker Kit Installation Instructions 1. Cut the 3/8" line that goes to the faucet and insert the 3/8" tee fitting. 2. Attach the 3/8" tubing that came with the kit to the open port on the tee. 3.
  • Page 23 Installation Instructions Residential Reverse Osmosis Drinking Water System Page 23...
  • Page 24 American Revolution 5 Stage Series Reverse place of installation of this American Revolution 5 Stage Series Osmosis Drinking Water Purification System, US WATER SYSTEMS, Permeate Pump Reverse Osmosis Drinking Water Purification System, INC. warrants the following: US WATER SYSTEMS, INC.
