SXT Programming

NOTE: The highlighted values are the selections that should be made. Some pa-
rameters will refer to the settings chart for values.

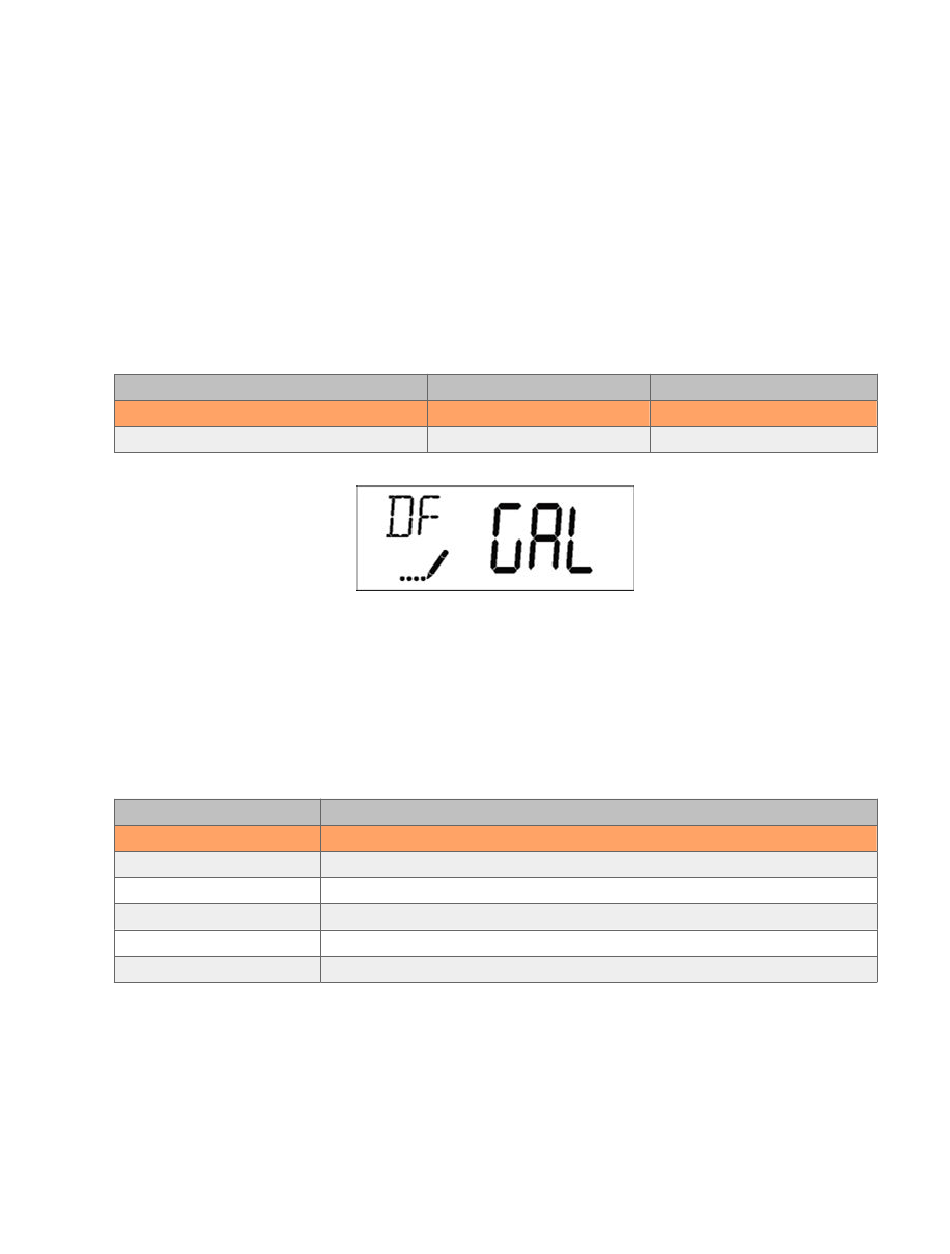

1. Display Format (Display Code DF)
This is the first screen that appears when entering Master Programming Mode. The
Display Format setting specifies the unit of measure that will be used for volume and
how the control will display the Time of Day. This option setting is identified by "DF"
in the upper left hand corner of the screen. There are three possible settings:
Display Format Setting
2. Valve Type (Display Code VT)
Press the Extra Cycle button. Use this display to set the Valve Type. The Valve Type
settings specifies the type of cycle that the valve follows during regeneration. Note
that some valve types require that the valve be built with specific subcomponents.
Ensure the valve is configured properly before changing the Valve Type setting. This
option setting is identified by "VT" in the upper left hand corner of the screen. There
are 5 possible settings:
Abbreviation
dF1b
dF2b
Fltr
UFbd
8500
Othr
Need help? 1.800.390.5936
GAL
Ltr
Unit of Volume
U.S. Gallons
Liters
Parameter
Standard Downflow / Upflow, Single Backwash
Standard Downflow / Upflow, Double Backwash
Filter
Upflow Brine First
TwinFlo 100
Other
31
Time Display
12-Hour AM/PM
24-Hour
