- Page 1 Aquapurion 5 Stage Standard, Plus, And Permeate Pump RO Systems Installation And Maintenance Manual...
- Page 2 MEMBRANE POST CARBON PRE SEDIMENT PRE CARBON TUBING FAUCET AND MOUNTING KIT FILTER WRENCH DRAIN SADDLE TANK VALVE FEED WATER ANGLE STOP FAUCET CONNECTOR...
-
Page 3: Reverse Osmosis Membrane

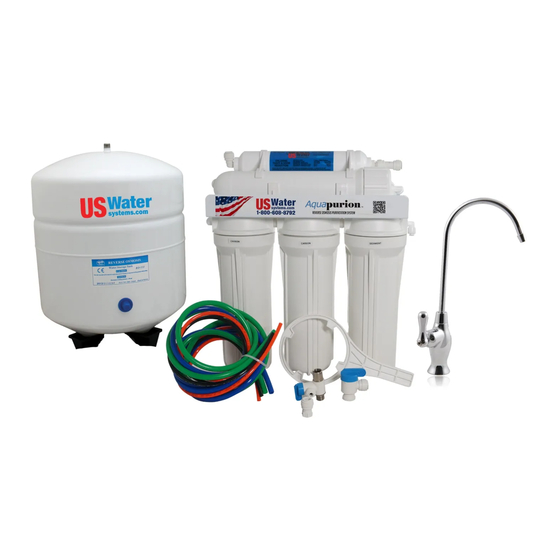

Installation Instructions Residential Reverse Osmosis Drinking Water System Parts Check List STORAGE TANK holds filtered water, ready for use. RO Module AUTOMATIC SHUT-OFF VALVE (ASO) Tubing Bundle senses Filter Wrench when the storage tank is full and closes the water supply ... -
Page 4: Installation Steps
Installation Instructions Residential Reverse Osmosis Drinking Water System air bladder is checked. There is a blue cap that covers a STORAGE TANK may be placed where it is convenient, Schrader valve (tire valve). This is where the tank within ten feet of the faucet. Under the sink or in a nearby pressure is checked. -
Page 5: Mounting The Faucet
Installation Instructions Residential Reverse Osmosis Drinking Water System B. Mounting the faucet “whip hose” or tubing from the shutoff valve. There will be residual water spilled when this tube is removed. Be sure to Install the faucet as shown in Fig. 1. Assistance may be have a towel to dry the water that is spilled. - Page 6 Installation Instructions Residential Reverse Osmosis Drinking Water System D. Drain Saddle Installation Prior to drain saddle installation it is important to inspect the condition of drain pipes to make sure they are not thin and frail. Drain saddle valves are designed to be installed on standard 1 -1/2”...
-
Page 7: Final Tubing Connections
Installation Instructions Residential Reverse Osmosis Drinking Water System 3. Once the valve is installed, connect the green 3/8” tubing to the tank valve. Leave the other end of the tubing loose for now, it will be connected later in the installation. NOTE: Tanks are pre-pressurized at 7 psi. -
Page 8: System Start-Up
Installation Instructions Residential Reverse Osmosis Drinking Water System 2. Connect the green tubing from tank to RO unit at the post To complete this operation, connect a tee with shutoff valve carbon filter inlet tee fitting. into the faucet tubing and route tubing to the refrigerator. (Hooking up to an existing copper line is not recommended). -
Page 9: Maintenance
Installation Instructions Residential Reverse Osmosis Drinking Water System Maintenance 10. Close holding tank valve while faucet is open to release Your RO system contains filters and membranes which must pressure. be replaced periodically for proper operation. 11. Remove housings and empty them. NOTE: Change-out procedures may be amended, depending 12. -
Page 10: Water Production
Installation Instructions Residential Reverse Osmosis Drinking Water System For example: Water production Product water rate =10 gpd PRODUCT WATER RATE Reject water rate = 40 gpd Usable water production from an RO system is designated Feed water = (10 gpd + 40 gpd) or 50 gpd product water rate, produced on a daily basis. - Page 11 Installation Instructions Residential Reverse Osmosis Drinking Water System 3. Push up to the tube stop Push the tube into the fitting to the tube stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a permanent leak proof seal.
- Page 12 Installation Instructions Residential Reverse Osmosis Drinking Water System (Green Tube) Page 12...
- Page 13 Installation Instructions Residential Reverse Osmosis Drinking Water System (Green Tube) Page 13...
- Page 14 Installation Instructions Residential Reverse Osmosis Drinking Water System Ice Maker Kit Installation Instructions 1. Cut the 3/8" line that goes to the faucet and insert the 3/8" tee fitting. 2. Attach the 3/8" tubing that came with the kit to the open port on the tee. 3.
- Page 15 Installation Instructions Residential Reverse Osmosis Drinking Water System Page 15...
- Page 16 Installation Instructions Residential Reverse Osmosis Drinking Water System Filter Change Instructions • Housing Care • Installation Instructions & Guidelines 1. Turn off water supply to filter. NOTE: Activated carbon cartridges and carbon block 2. Turn off tank Valve and open the faucet to relieve the cartridges may contain a small amount of carbon fines (very pressure in the system.
- Page 17 For five (5) years to the original purchaser, at the original residential For three (3) years to the original purchaser, at the original residential place of installation of this Aquapurion 5 Stage Series Permeate Pump place of installation of this Aquapurion 5 Stage Series Reverse Osmosis Reverse Osmosis Drinking Water Purification System, US WATER Drinking Water Purification System, US WATER SYSTEMS, INC.
