Diagnostics and Troubleshooting

Abbreviation Parameter
FR
PF Peak Flow Rate
HR Hours in Service
VU Volume Used
RC Reserve Capacity
SV Software Version
NOTE: Some items may not be shown depending on timer configuration. The timer
will exit Diagnostic Mode after 60 seconds if no buttons are pressed. Press the
Extra Cycle button to exit Diagnostic Mode at any time.

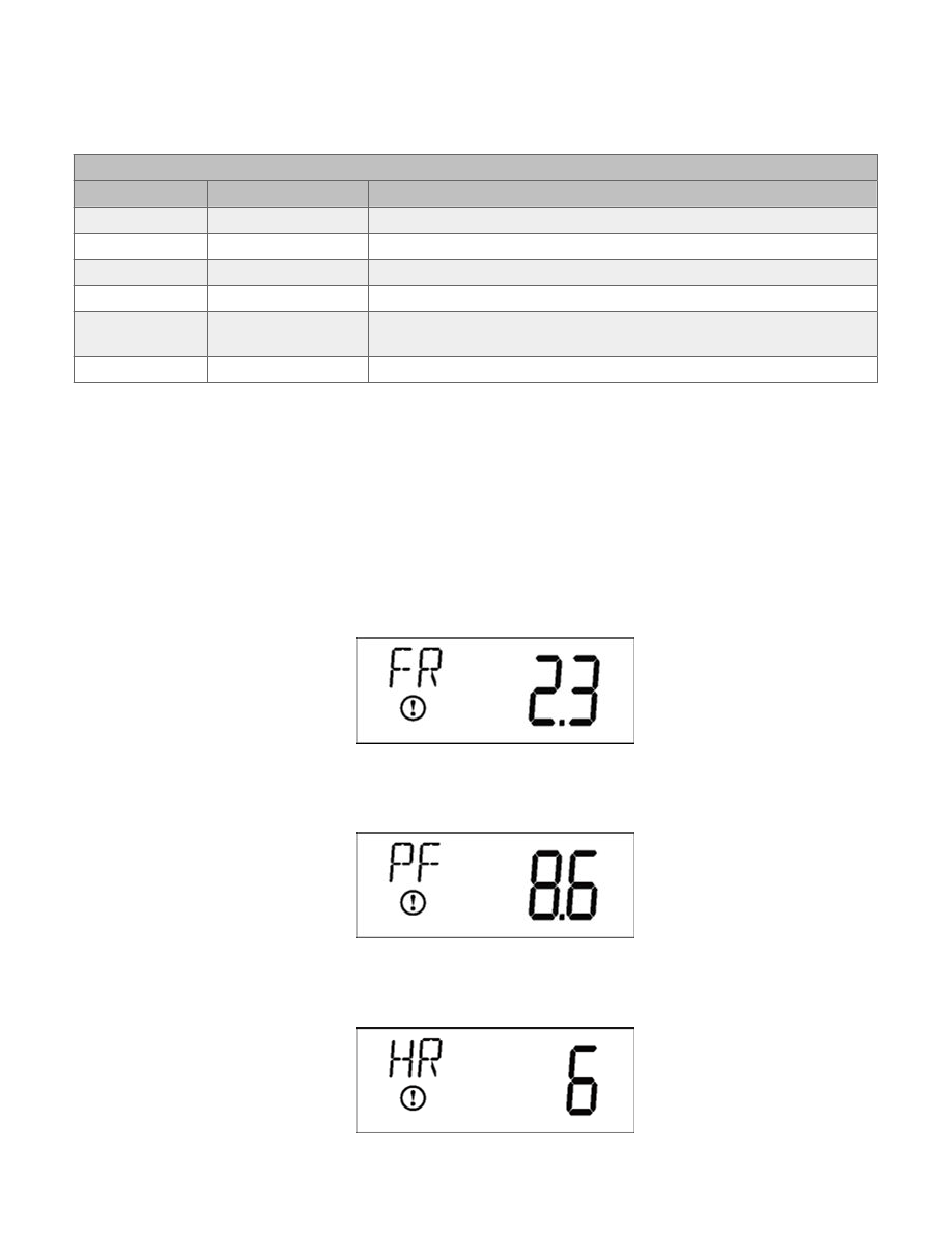

Diagnostic Programming Mode Steps
1. Press the Up and Extra Cycle buttons for five seconds while in service.
2. Use this display to view the current Flow Rate. This option setting is identified by
"FR" in the upper left hand corner of the screen.
3. Press the Up button. Use this display to view the Peak Flow Rate since the last
regeneration cycle. This option setting is identified by "PF" in the upper left hand
corner of the screen.
4. Press the Up button. Use this display to view the Hours in Service since the last
regeneration cycle. This option setting is identified by "HR" in the upper left hand
corner of the screen.
