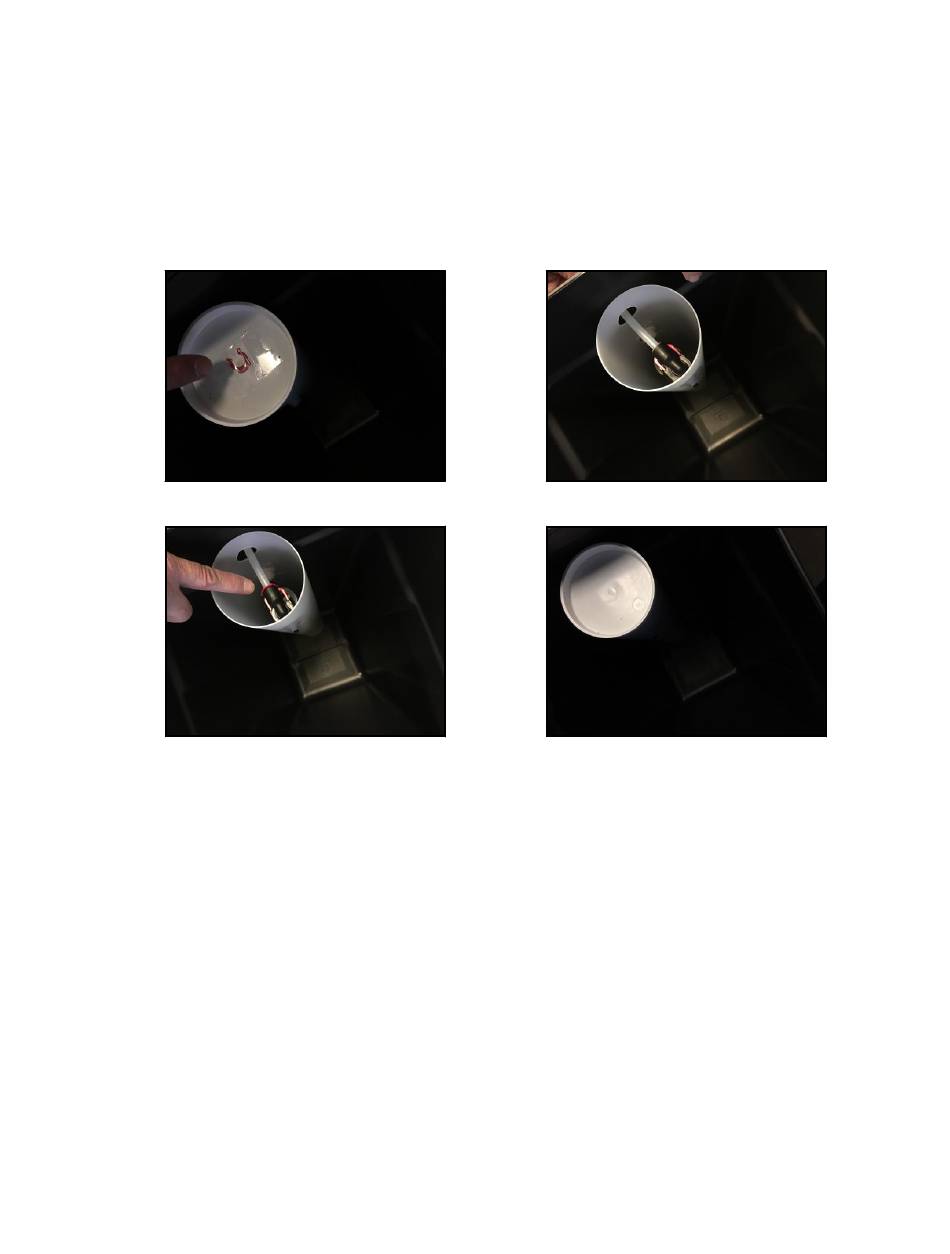

2. Now connect the brine line to the brine tank safety float assembly. Remove the brine
tank lid and the brine well cap. There is a red clip on the cap that will be used to
hold the brine line in place. Remove it, and the tape holding it, and put it to the side.
Then push the brine line through the brine tank and brine well. REMOVE the brass
insert for this connection. Push the brine line into the brine safety valve. Make sure
it is completely pushed in. Then install the red locking clip around the brine fitting
between the gray collar and the brine elbow. Install the white cap on the tube.
3. Pour in at least two bags of salt and five gallons of clean water.
NOTE: There is a barb fitting on the side of the brine tank. This is used as an
overflow and is only used if the brine tank overfills. This barb is for 1/2" tubing. If
you elect to use tubing for this elbow, run it to a floor drain or sump pump.
