Control Valve Features

NOTE: Make all electrical connections according to codes.
Tank one (or U1) has the control valve and tank two (or U2) has the adapter. There are
indicators showing which position the control valve is in during regeneration and which
tank is in service on the right side of the gear assembly.
The valve position and tank in service will also be displayed on the control panel. If the
unit is in the regeneration process, the cycle will be shown and periodically it will flash to
the tank in service. When the system is in the service position, it will display the time of
day and flash to the tank in service and the amount of gallons that are remaining before a
regeneration of the tank in service is required.

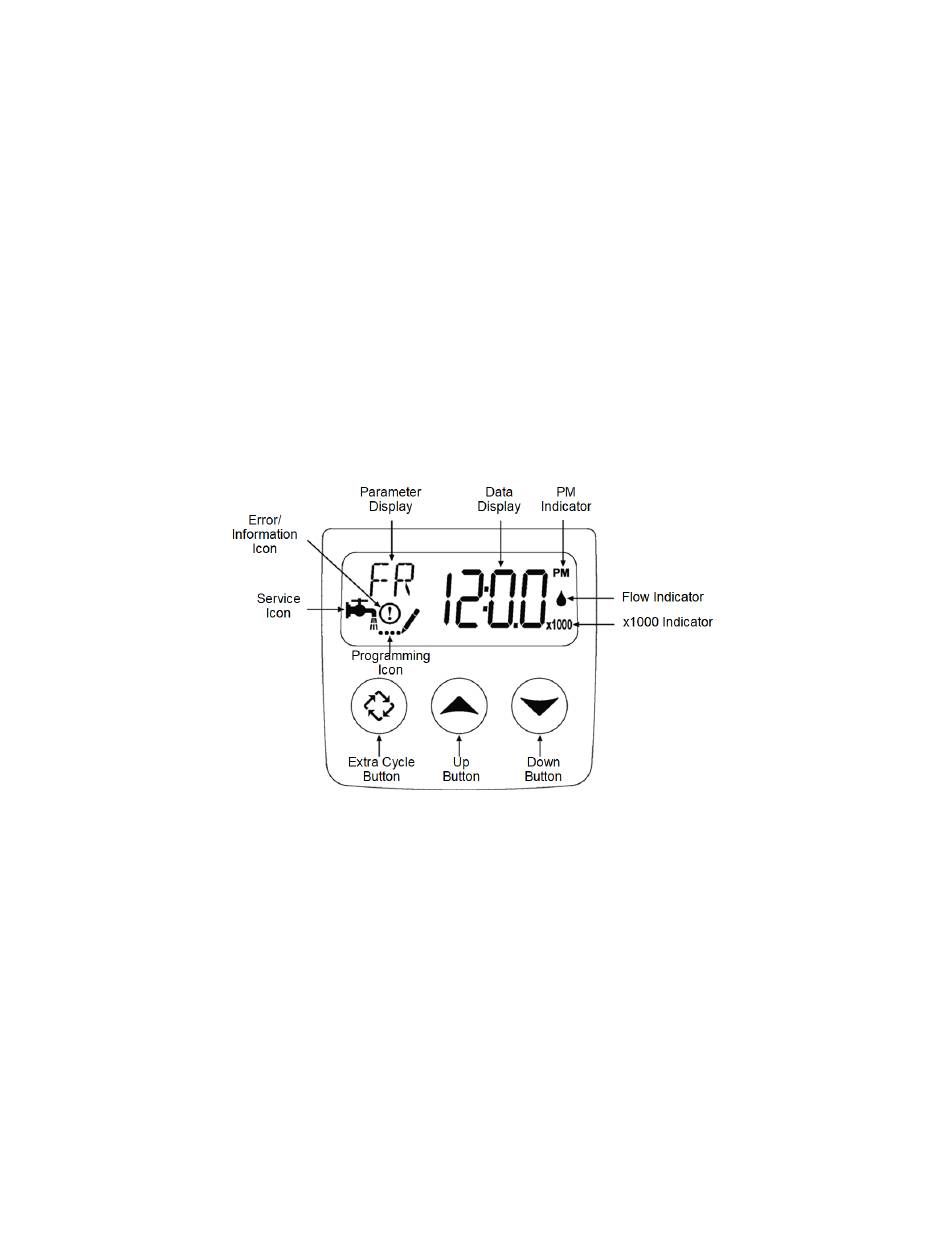

SXT Controller Features

1. When in the service mode, the service icon will be illuminated. If a delayed regenera-
tion is initiated, the service icon will blink.
2. The flow indicator icon will blink when water is being used.
3. When setting the time of day and delayed regeneration time, be sure the clock is in
the correct 12 hour time cycle. When you are in the PM time cycle, the PM icon will
be illuminated. If it is not illuminated, the clock is in the AM time cycle.
4. When the display is in the service mode, it will flash from the time of day to the tank
in service (U1 or U2) and then to the remaining capacity (in gallons).
5. When water is being used and the flow icon is blinking, the remaining capacity value
will decrease for each gallon used.
6. The service icon will be illuminated during programming or regeneration.
