Hardware Installation Guide
7

Appendix

Connector and Connection Media Description

7.1
1000BASE-T/100BASE-TX/10BASE-T port

The 1000BASE-T/100BASE-TX/10BASE-T port is adaptive to three rates, and supports automatic MDI/MDIX
Crossover functions at the three rates.
1000BASE-T complies with the IEEE 802.3ab standard, the connected cable is 100-ohm CAT5 or CAT 5e
unshielded twisted pair UTP or shielded twisted pair STP. The maximum distance supported is 100 meters.
The 1000BASE-T port uses 4 pairs of wires for data transmission, and all 4 pairs of wires need to be
connected. The connection of the twisted pair used by the 1000BASE-T port is shown in the following
figure:

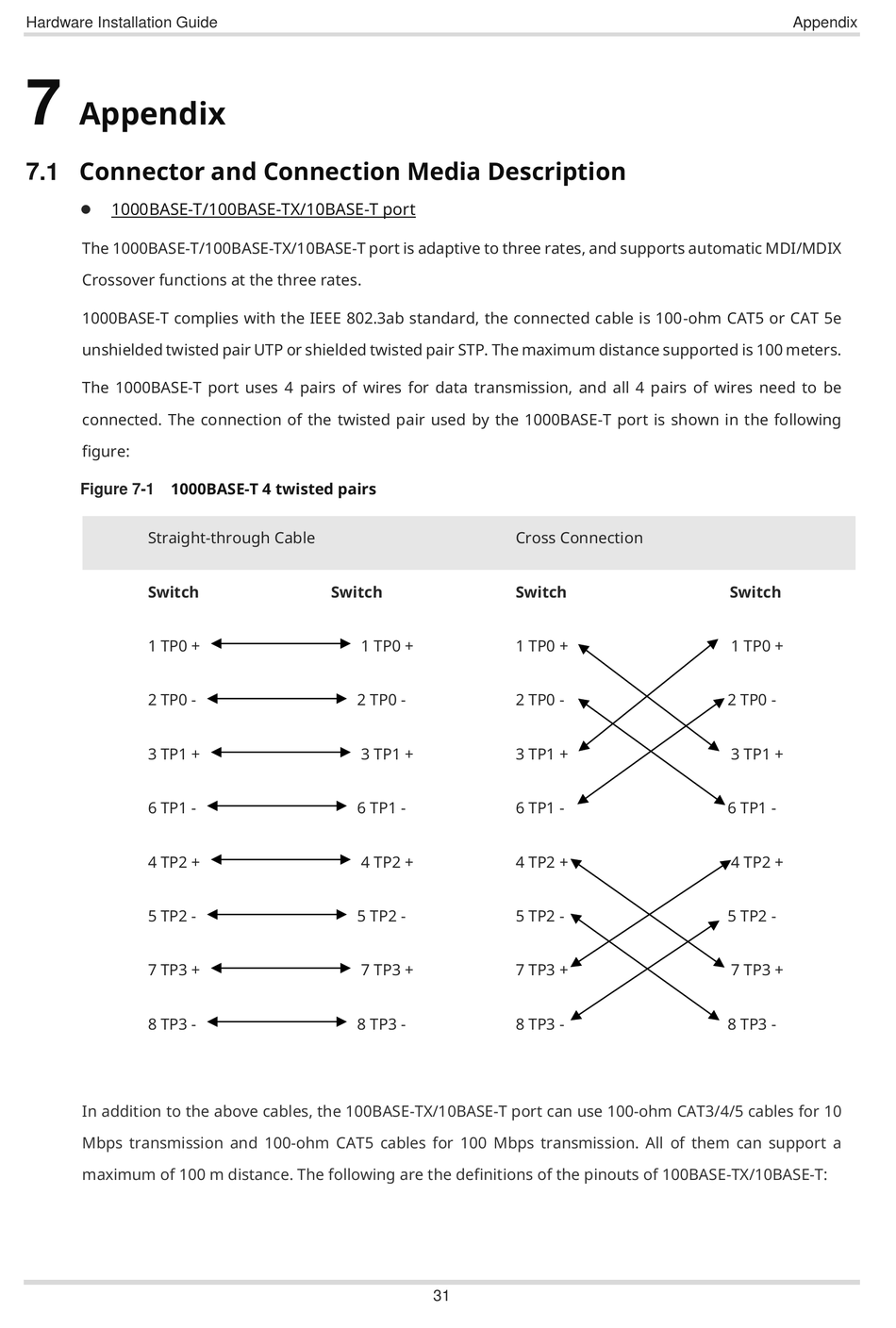

1000BASE-T 4 twisted pairs
Figure 7-1
Straight-through Cable
Switch
1 TP0 +
2 TP0 -
3 TP1 +
6 TP1 -
4 TP2 +
5 TP2 -
7 TP3 +
8 TP3 -
In addition to the above cables, the 100BASE-TX/10BASE-T port can use 100-ohm CAT3/4/5 cables for 10
Mbps transmission and 100-ohm CAT5 cables for 100 Mbps transmission. All of them can support a
maximum of 100 m distance. The following are the definitions of the pinouts of 100BASE-TX/10BASE-T:
Switch
1 TP0 +
2 TP0 -
3 TP1 +
6 TP1 -
4 TP2 +
5 TP2 -
7 TP3 +
8 TP3 -
31
Cross Connection
Switch
1 TP0 +
2 TP0 -
3 TP1 +
6 TP1 -
4 TP2 +
5 TP2 -
7 TP3 +
8 TP3 -
Appendix
Switch
1 TP0 +
2 TP0 -
3 TP1 +
6 TP1 -
4 TP2 +
5 TP2 -
7 TP3 +
8 TP3 -
