Hardware Installation and Reference Guide

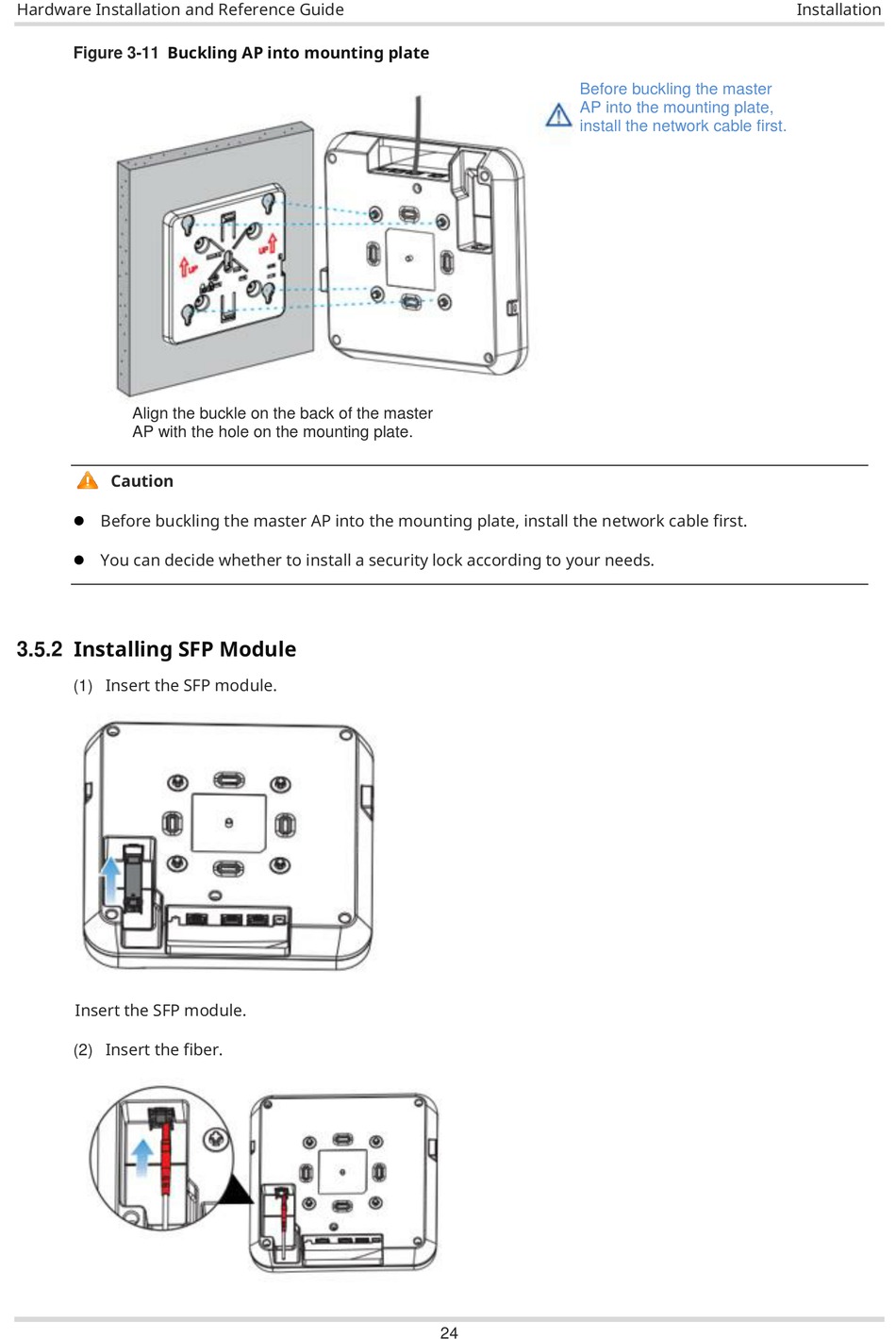

Buckling AP into mounting plate
Figure 3-11
Align the buckle on the back of the master
AP with the hole on the mounting plate.
Caution
Before buckling the master AP into the mounting plate, install the network cable first.

You can decide whether to install a security lock according to your needs.


Installing SFP Module

3.5.2
(1) Insert the SFP module.
Insert the SFP module.
(2) Insert the fiber.
Before buckling the master
AP into the mounting plate,
install the network cable first.
24
Installation
